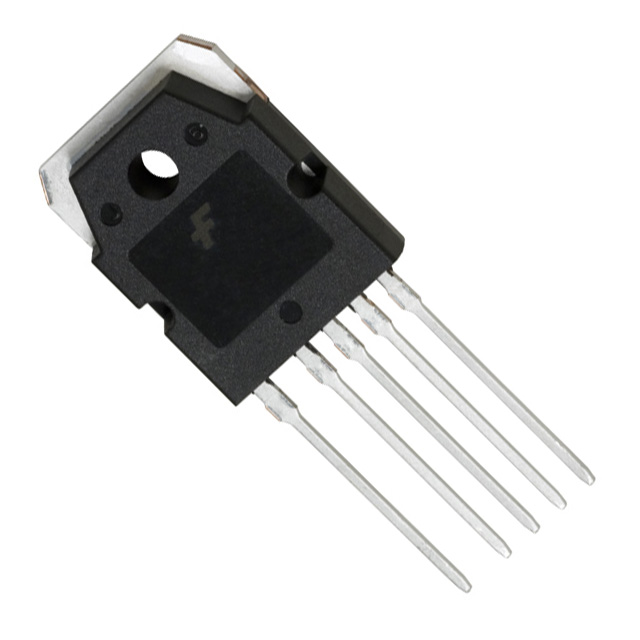

MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:TO-3P- D/C:08+
.jpg)
FS7M0880, FS7M0880TU, FS7M0880YDTU Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: TO-3P-
D/C: 08+
Description: IC SWIT PWM CM OVP UVLO HV TO3P
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FS7M0880
File Size: 284260 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FS7M0880TU
File Size: 284260 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FS7M0880YDTU
File Size: 284260 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Parameter |
Symbol |
Value |
Unit |
| Drain-Gate Voltage (RGS=1MΩ) |
VDGR |
800 |
V |
| Gate-Source (GND) Voltage |
VGS |
±30 |
V |
| Drain Current Pulsed (2) |
IDM |
32.0 |
ADC |
| Single Pulsed Avalanche Energy(3) |
EAS |
810 |
mJ |
| Avalanche Current(4) |
IAS |
15 |
A |
| Continuous Drain Current (TC=25°C) |
ID |
8.0 |
ADC |
| Continuous Drain Current (TC=100°C) |
ID |
5.6 |
ADC |
| Maximum Supply Voltage |
VCC,MAX |
30 |
V |
| Input Voltage Range |
VFB |
-0.3 to VSD |
V |
| Total Power Dissipation |
PD |
190 |
W |
|
Derating |
1.54 |
W/°C | |
| Operating Ambient Temperature |
TA |
-25 to +85 |
°C |
Storage Temperature |
TSTG |
-55 to +150 |
°C |
Note:
1. Tj = 25°C to 150°C
2. Repetitive rating: Pulse width limited by maximum junction temperature
3. L = 24mH, VDD = 50V, RG = 25Ω, starting Tj =25°C
4. L = 13µH, starting Tj = 25°C
| Technical/Catalog Information | FS7M0880TU |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Package / Case | TO-3P |
| Power (Watts) | 190W |
| Voltage - Input | 10 ~ 30 V |
| Voltage - Output | 800V |
| Frequency Range | 60 ~ 72kHz |
| Operating Temperature | 25°C ~ 150°C |
| Output Isolation | Isolated |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FS7M0880TU FS7M0880TU |
| Technical/Catalog Information | FS7M0880YDTU |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Package / Case | TO-3P |
| Power (Watts) | 190W |
| Voltage - Input | 10 ~ 30 V |
| Voltage - Output | 800V |
| Frequency Range | 60 ~ 72kHz |
| Operating Temperature | 25°C ~ 150°C |
| Output Isolation | Isolated |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FS7M0880YDTU FS7M0880YDTU |
