MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:SMD D/C:2010+

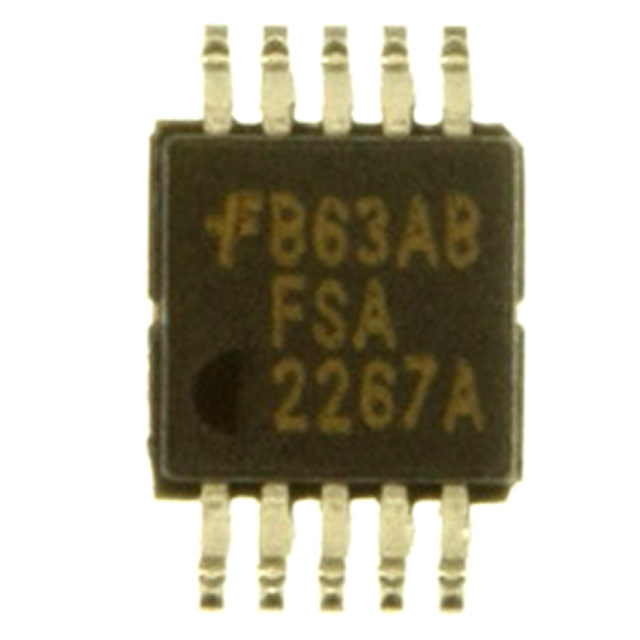

FSA2267A, FSA2267AL10XFAIRCHILD, FSA2267AMUX Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: SMD
D/C: 2010+
Description: IC SWITCH DUAL SPDT LV 10-MSOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FSA2267AL10X
File Size: 577741 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSA1156
File Size: 498532 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSA1156
File Size: 498532 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
The FSA2267 and FSA2267A are Dual Single Pole Double Throw (SPDT) analog switches. The FSA2267 operates from a single 1.65V to 3.6V supply, while the FSA2267A operates from a single 2.3V to 4.3V supply.
Each features an ultra-low On Resistance of 0.35 at a +2.7V supply and 25°C. Both devices are fabricated with sub-micron CMOS technology to achieve fast switching speeds and designed for break-before-make operation.
FSA2267A features very low quiescent current, even when the control voltage is lower than the VCC supply.
This feature services the mobile handset applications very well allowing for the direct interface with baseband processor general purpose I/Os.
|
Symbol |
Parameter |
Min. |
Max. |
Unit |
|
VCC |
Supply Voltage |
-0.5 |
+5.5 |
V |
|
VS |
Switch Voltage(1) |
-0.5 |
VCC + 0.5 |
V |
|
VIN |
Input Voltage(1) |
-0.5 |
VCC |
V |
| Input Diode Current(2) |
-50 |
mA | ||
| Switch Current |
350 |
mA | ||
| Peak Switch Current (Pulsed at 1ms duration, <10% Duty Cycle) |
500 |
mA | ||
|
TSTG |
Storage Temperature Range |
-65 |
+150 |
°C |
|
TJ |
Maximum Junction Temperature |
+150 |
°C | |
|
TL |
Lead Temperature (Soldering, 10 seconds) |
+260 |
°C | |
|
ESD |
Human Body Model: FSA2267 |
7500 |
V | |
| Human Body Model: FSA2267A |
7000 |
V | ||
| Charge Device Model: FSA2267/FSA2267A |
1000 |
V |
| Technical/Catalog Information | FSA2267AMUX |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Type | Switch |
| Voltage Supply Source | Single Supply |
| Voltage - Supply, Single/Dual (±) | 2.3 V ~ 4.3 V |
| Circuit | 2 x SPDT |
| On-State Resistance | 600 mOhm |
| Mounting Type | Surface Mount |
| Package / Case | 10-MSOP, Micro10?, 10-uMAX, 10-uSOP |
| Packaging | Tape & Reel (TR) |
| Current - Supply | 100nA |
| Operating Temperature | -40°C ~ 85°C |
| Function | Switch |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FSA2267AMUX FSA2267AMUX FSA2267AMUXTR ND FSA2267AMUXTRND FSA2267AMUXTR |
