FSBF10CH60BT, FSBF10CH60BTL, FSBF15CH60BTL

Table of contents:
Info of FSBF10CH60BT
Info of FSBF10CH60BTL
Info of FSBF15CH60BTL

FSBF10CH60BT, FSBF10CH60BTL, FSBF15CH60BTL Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:MODULO D/C:06+

FSBF10CH60BT, FSBF10CH60BTL, FSBF15CH60BTL Datasheet download

Five Points

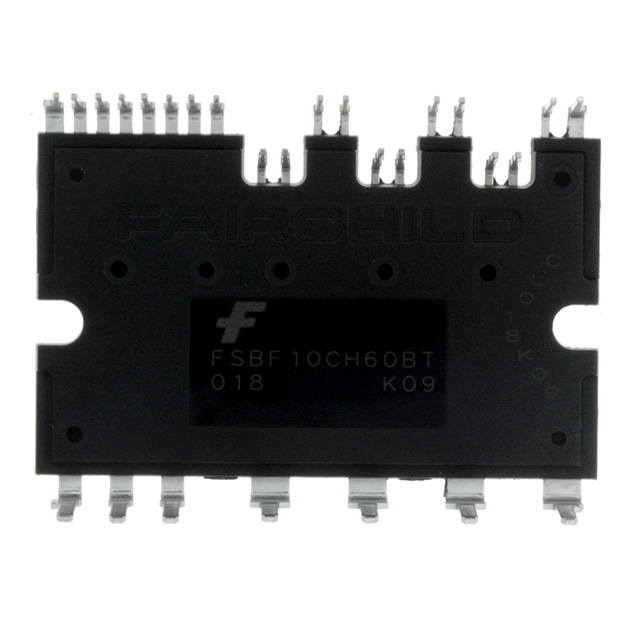

Part Number: FSBF10CH60BT

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor

Package Cooled: MODULO

D/C: 06+

Description: MODULE SPM 600V 15A SPM27-JB

Price Break

1
25
100
1000

Unit Price

12.83000
11.55000
10.24100
9.50950

Extended Price

12.83
288.75
1024.10
9509.50

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FSBF10CH60BT Parameters

Technical/Catalog Information	FSBF10CH60BT
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Applications	AC Motor Driver, 3 Phase
Number of Outputs	1
Voltage - Supply	13.5 V ~ 16.5 V
Voltage - Load	300 V ~ 400 V
Current - Output	10A
Operating Temperature	-40°C ~ 125°C
Package / Case	SPM27JA
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSBF10CH60BT FSBF10CH60BT

FSBF10CH60BT General Description

It is an advanced smart power module (SPM™) that Fairchildhas newly developed and designed to provide very compactand high performance ac motor drives mainly targeting lowpowerinverter-driven application like air conditioner and washingmachine. It combines optimized circuit protection and drivematched to low-loss IGBTs. System reliability is furtherenhanced by the integrated under-voltage lock-out and shortcircuitprotection. The high speed built-in HVIC provides optocoupler-less single-supply IGBT gate driving capability that furtherreduce the overall size of the inverter system design. Eachphase current of inverter can be monitored separately due tothe divided negative dc terminals.

FSBF10CH60BT Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FSBF10CH60BT	Full Production	RoHS Compliant	$13.60	SPM27-JA	27	RAIL	N/A	Line 1: $Y (Fairchild logo) Line 2: FSBF10CH60BT Line 3: &H&E&E&E&E&E&3 Line 4: CL&H&3

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FSBF10CH60BT is available. Click here for more information .

FSBF10CH60BTL Parameters

Technical/Catalog Information	FSBF10CH60BTL
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Applications	AC Motor Driver, 3 Phase
Number of Outputs	1
Voltage - Supply	13.5 V ~ 16.5 V
Voltage - Load	300 V ~ 400 V
Current - Output	10A
Operating Temperature	-40°C ~ 125°C
Package / Case	SPM27-JB
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSBF10CH60BTL FSBF10CH60BTL

FSBF10CH60BTL General Description

It is an advanced motion-smart power module (Motion-SPMTM)that Fairchild has newly developed and designed to providevery compact and high performance ac motor drives mainly targetinglow-power inverter-driven application like air conditionerand washing machine. It combines optimized circuit protectionand drive matched to low-loss IGBTs. System reliability is furtherenhanced by the integrated under-voltage lock-out andshort-circuit protection. The high speed built-in HVIC providesopto-coupler-less single-supply IGBT gate driving capability thatfurther reduce the overall size of the inverter system design.Each phase current of inverter can be monitored separately dueto the divided negative dc terminals.

FSBF10CH60BTL Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FSBF10CH60BTL	Full Production	RoHS Compliant	$14.30	SPM27-JB	27	RAIL	N/A	Line 1: $Y (Fairchild logo) Line 2: FSBF10CH60BTL Line 3: &H&E&E&E&E&E&3 Line 4: DC&H&3

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FSBF10CH60BTL is available. Click here for more information .

FSBF15CH60BTL Parameters

Technical/Catalog Information	FSBF15CH60BTL
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Applications	AC Motor Driver, 3 Phase
Number of Outputs	1
Voltage - Supply	13.5 V ~ 16.5 V
Voltage - Load	300 V ~ 400 V
Current - Output	15A
Operating Temperature	-40°C ~ 125°C
Package / Case	SPM27JA
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSBF15CH60BTL FSBF15CH60BTL

FSBF15CH60BTL General Description

It is an advanced motion-smart power module (Motion-SPM™)that Fairchild has newly developed and designed to providevery compact and high performance ac motor drives mainly targetinglow-power inverter-driven application like air conditionerand washing machine. It combines optimized circuit protectionand drive matched to low-loss IGBTs. System reliability is furtherenhanced by the integrated under-voltage lock-out andshort-circuit protection. The high speed built-in HVIC providesopto-coupler-less single-supply IGBT gate driving capability thatfurther reduce the overall size of the inverter system design.Each phase current of inverter can be monitored separately dueto the divided negative dc terminals.

FSBF15CH60BTL Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FSBF15CH60BTL	Full Production	RoHS Compliant	$17.16	SPM27-JB	27	RAIL	N/A	Line 1: $Y (Fairchild logo) Line 2: FSBF15CH60BTL Line 3: &H&E&E&E&E&E&3 Line 4: DD&H&3

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FSBF15CH60BTL is available. Click here for more information .
