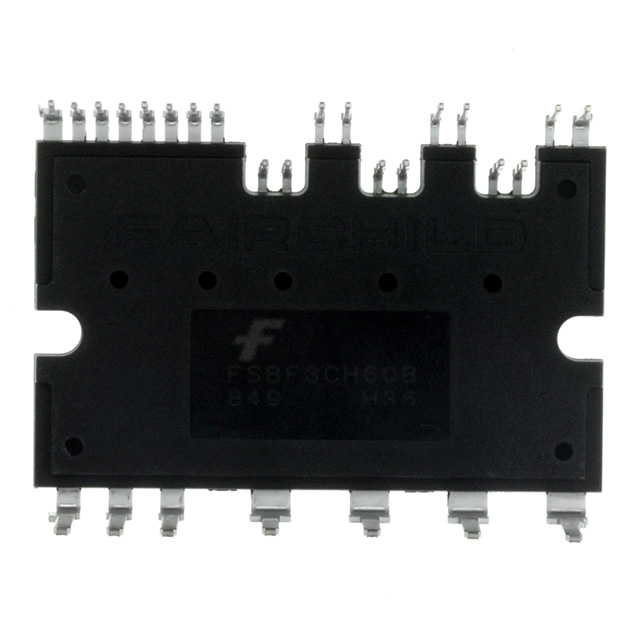

FSBF3CH60B, FSBF5CH60B, FSBF5CH60BS Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: MODULO
D/C: 06+
Description: MODULE SPM 600V 5A 3PH SPM27-JA
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FSB1014-102
File Size: 74758 KB
Manufacturer: ECM [ECM Electronics Limited.]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSB1014-102
File Size: 74758 KB
Manufacturer: ECM [ECM Electronics Limited.]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FSB1014-102
File Size: 74758 KB
Manufacturer: ECM [ECM Electronics Limited.]
Download : Click here to Download
| Technical/Catalog Information | FSBF3CH60B |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Applications | AC Motor Driver, 3 Phase |
| Number of Outputs | 1 |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 300 V ~ 400 V |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | SPM27JA |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FSBF3CH60B FSBF3CH60B |
It is an advanced smart power module (SPM™) that Fairchildhas newly developed and designed to provide very compactand high performance ac motor drives mainly targeting lowpowerinverter–driven application like air conditioner and washingmachine. It combines optimized circuit protection and drivematched to low–loss IGBTs. System reliability is furtherenhanced by the integrated under–voltage lock–out and shortcircuitprotection. The high speed built–in HVIC provides optocoupler–less single–supply IGBT gate driving capability that furtherreduce the overall size of the inverter system design. Eachphase current of inverter can be monitored separately due tothe divided negative dc terminals.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FSBF3CH60B | Full Production | RoHS Compliant | $11.80 | SPM27-JA | 27 | RAIL | N/A | Line 1: $Y (Fairchild logo) Line 2: FSBF3CH60B Line 3: &H&E&E&E&E&3 Line 4: CF&H&3 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FSBF3CH60B is available. Click here for more information . |
| Technical/Catalog Information | FSBF5CH60B |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Applications | AC Motor Driver, 3 Phase |
| Number of Outputs | 1 |
| Voltage - Supply | 13.5 V ~ 16.5 V |
| Voltage - Load | 300 V ~ 400 V |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | SPM27JA |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FSBF5CH60B FSBF5CH60B |
It is an advanced smart power module (SPM™) that Fairchildhas newly developed and designed to provide very compactand high performance ac motor drives mainly targeting lowpowerinverter-driven application like air conditioner and washingmachine. It combines optimized circuit protection and drivematched to low-loss IGBTs. System reliability is furtherenhanced by the integrated under-voltage lock-out and shortcircuitprotection. The high speed built-in HVIC provides optocoupler-less single-supply IGBT gate driving capability that furtherreduce the overall size of the inverter system design. Eachphase current of inverter can be monitored separately due tothe divided negative dc terminals.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FSBF5CH60B | Full Production | RoHS Compliant | $12.80 | SPM27-JA | 27 | RAIL | N/A | Line 1: $Y (Fairchild logo) Line 2: FSBF5CH60B Line 3: &H&E&E&E&E&3 Line 4: CG&H&3 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FSBF5CH60B is available. Click here for more information . |
