FSUSB30UMX, FSUSB31, FSUSB40

Table of contents:
Info of FSUSB30UMX
Info of FSUSB31
Info of FSUSB40

FSUSB30UMX, FSUSB31, FSUSB40 Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Integrated Circuits (ICs) Package Cooled:QFN D/C:0752+PB

FSUSB30UMX, FSUSB31, FSUSB40 Datasheet download

Five Points

Part Number: FSUSB30UMX

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor (VA)

Package Cooled: QFN

D/C: 0752+PB

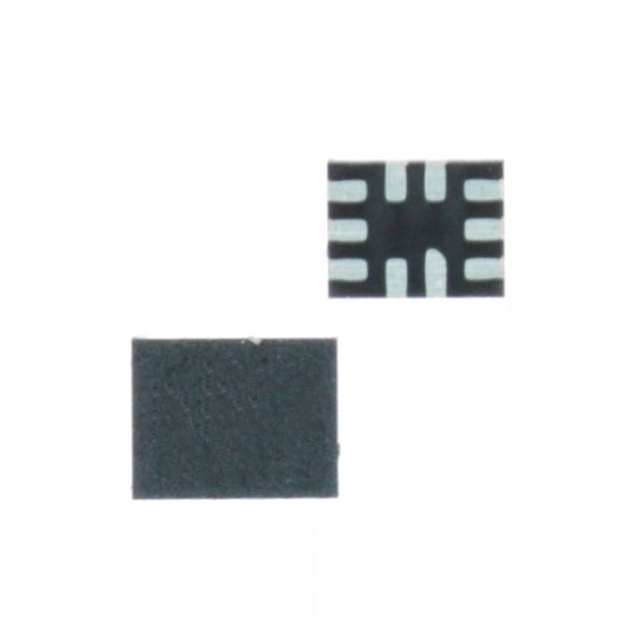

Description: IC SWITCH USB2.0 DUAL 10-MLP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FSUSB30UMX Parameters

Technical/Catalog Information	FSUSB30UMX
Vendor	Fairchild Semiconductor (VA)
Category	Integrated Circuits (ICs)
Type	USB Switch
Voltage Supply Source	Single Supply
Voltage - Supply, Single/Dual (±)	3 V ~ 4.3 V
Circuit	1 x 2:2
On-State Resistance	7 Ohm
Mounting Type	Surface Mount
Package / Case	10-MLP
Packaging	Digi-Reel?
Current - Supply	1A
Operating Temperature	-40°C ~ 85°C
Function	USB Switch
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSUSB30UMX FSUSB30UMX FSUSB30UMXDKR ND FSUSB30UMXDKRND FSUSB30UMXDKR

FSUSB31 General Description

The FSUSB31 is Dual SPST isolation switch. This part is optimized for switching between two HS (480Mbps) sources or a HS and FS (12Mbps) source that meets USB2.0 specifications. The FSUSB31 also has special circuitry on the D +, D − pins that allows it to withstand an over voltage condition. This part also features very low quiescent current even when the control voltage is lower than the V_CC supply. This feature services mobile handset applications well allowing for direct interface with the baseband processor general purpose I/Os. Typical applications involve switching in portables and consumer applications such as cell phones, digital cameras and notebooks with hubs or controllers. The wide bandwidth (>720MHz) of this switch exceeds the bandwidth needed to pass the 3^rd harmonic resulting in signals with minimum edge and phase distortion. Superior channel-tochannel crosstalk also results with minimal interference.

FSUSB31 Maximum Ratings

Symbol	Parameter	Rating
V_CC	Supply Voltage	−0.5V to +4.6V
V_S	DC Input Voltage1	−0.5V to +4.6V
V_IN	DC Switch Voltage1 HSD D+, D−	−0.5V to V_CC + 0.3V −0.5V to +4.6V
	DC Input Diode Current	−50mA
	DC Output Current	50mA
	Storage Temperature	−65°C to +150°C
	ESD (Human Body Model) All Pins I/O to GND	8 KV 8 KV

FSUSB31 Features

10A maximum ICCT current over an expanded control voltage range (VIN = 2.6V, VCC = 4.3V)
Lower Capacitance: Con = 6.5pF Typ
6.0 typical On Resistance (RON)
−3dB bandwidth: > 720MHz
Low power consumption (1A maximum)
Packaged in:
Pb-Free 8-lead MicroPak^TM (1.6mm by 2.1mm)
Pb-Free 8-lead US8
8kV ESD performance
Power OFF protection when V_CC = 0V, D+, D pins can tolerate up to 4.3V

FSUSB31 Typical Application

Cell phone, PDA, Digital Camera, and Notebook
LCD Monitor, TV, and Set-top Box

FSUSB31 Connection Diagram
