MFG:Sharp Microelectronics Category:Sensors, Transducers Package Cooled:GAP2.0-DIP-4 D/C:09+
GP1S097HCZ0F, GP1S09C, GP1S11 Datasheet download
Category: Sensors, Transducers
MFG: Sharp Microelectronics
Package Cooled: GAP2.0-DIP-4
D/C: 09+
Description: SENSOR OPTO SLOT 2MM TRANS THRU
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: GP1001
File Size: 93147 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: GP1001
File Size: 93147 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: GP1S11
File Size: 136601 KB
Manufacturer: SHARP [Sharp Electrionic Components]
Download : Click here to Download
| Technical/Catalog Information | GP1S097HCZ0F |
| Vendor | Sharp Microelectronics |
| Category | Sensors, Transducers |
| Sensing Distance | 0.079" (2mm) |
| Sensing Method | Transmissive |
| Voltage - Collector Emitter Breakdown (Max) | 35V |
| Current - Collector (Ic) (Max) | 20mA |
| Current - DC Forward (If) | 50mA |
| Output Configuration | Phototransistor |
| Response Time | 50s , 50s <!--50us--> |
| Type | Unamplified |
| Mounting Type | Through Hole |
| Package / Case | PCB Mount |
| Packaging | Bulk |
| Operating Temperature | -25°C ~ 85°C |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | GP1S097HCZ0F GP1S097HCZ0F 425 1966 5 ND 42519665ND 425-1966-5 |

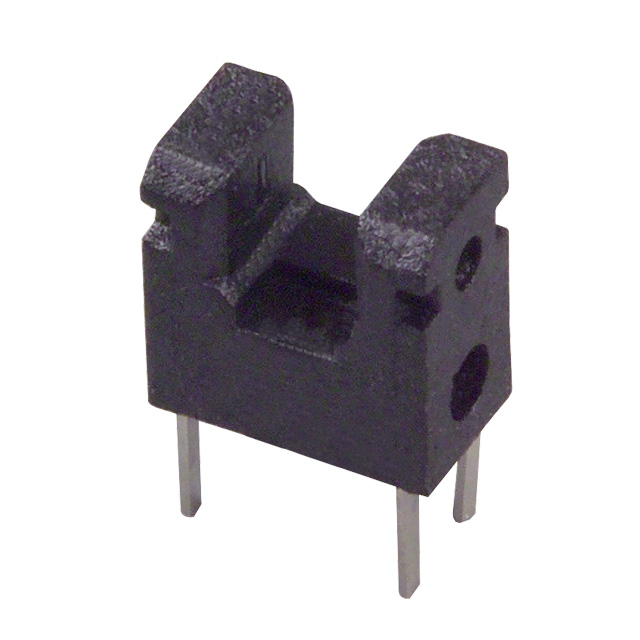

GP1S097HCZ0F is a compact-package, phototransistor output, transmissive photointerrupter, with opposing emitter and detector in a molding that provides non-contact sensing. The compact package series is a result of unique technology combing transfer and injection molding.
This device has hole that passes through the base of the device, for assembly or fi xing, and it has a wide gap.
| Parameter | Symbol | Rating | Unit | |
| Input | Forward current | IF | 50 | mA |
| Reverse voltage | VR | 6 | V | |
| Power dissipation | P | 75 | mW | |
| Output | Collector-emitter voltage | VCEO | 35 | V |
| Emitter-collector voltage | VECO | 6 | V | |
| Collector current | IC | 20 | mA | |
| Collector power dissipation | PC | 75 | mW | |
| Total power dissipation | Ptot | 400 | mW | |
| Operating temperature | Topr | −25 to +85 | ||
| Storage temperature | Tstg | −40 to +100 | ||
| *1Soldering temperature | Tsol | 260 | ||
