GP1S196HCPSF, GP1S196HCZ0F, GP1S196HCZSF

Table of contents:
Info of GP1S196HCPSF
Info of GP1S196HCZ0F
Info of GP1S196HCZSF

GP1S196HCPSF, GP1S196HCZ0F, GP1S196HCZSF Selling Leads, Datasheet

MFG:Sharp Microelectronics Category:Sensors, Transducers Package Cooled:2008+ D/C:10000

GP1S196HCPSF, GP1S196HCZ0F, GP1S196HCZSF Datasheet download

Five Points

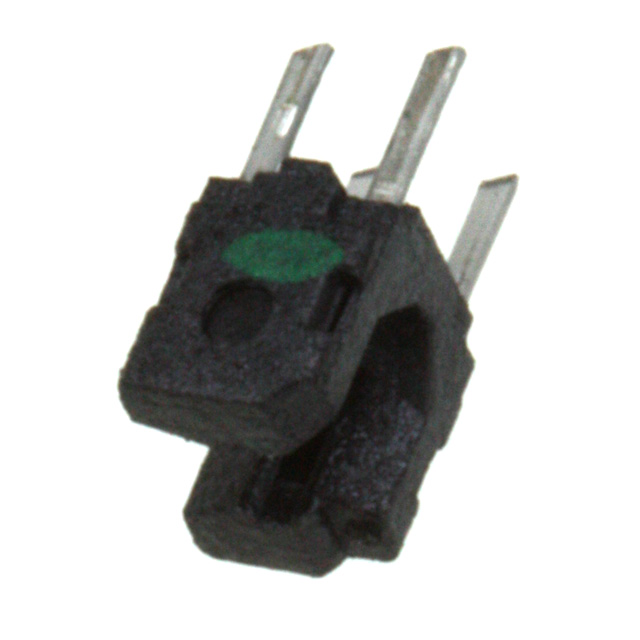

Part Number: GP1S196HCZ0F

Category: Sensors, Transducers

MFG: Sharp Microelectronics

Package Cooled: 2008+

D/C: 10000

Description: SENSOR OPTO SLOT 1.1MM TRANS SMD

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

GP1S196HCZ0F Parameters

Technical/Catalog Information	GP1S196HCZ0F
Vendor	Sharp Microelectronics
Category	Sensors, Transducers
Sensing Distance	0.043" (1.1mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	35V
Current - Collector (Ic) (Max)	20mA
Current - DC Forward (If)	30mA
Output Configuration	Phototransistor
Response Time	50s , 50s <!--50us-->
Type	Unamplified
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GP1S196HCZ0F GP1S196HCZ0F 425 2509 5 ND 42525095ND 425-2509-5

GP1S196HCZ0F General Description

GP1S196HCZ0F is a compact-package, photo-transistor output, transmissive photointerrupter, with opposing emitter and detector in a molding that provides noncontact sensing. The compact package series is a result of unique technology combing transfer and injection molding.

This device is half the size of the rest of the parts in this family.

GP1S196HCZ0F Maximum Ratings

Forward current I_F...............................30 mA
Reverse voltage V_R.................................6 V
Power dissipation P........................... 75 mW
Collector-emitter voltage V_CEO.............35 V
Emitter-collector voltage V_ECO................ 6 V
Collector current I_C.............................20 mA
Collector power dissipation P_C ..........75 mW
Total power dissipation Ptot ............100 mW
Operating temperature Topr......−25 to +85
Storage temperature Tstg .......−40 to +100
Soldering temperature Tsol ..................260

GP1S196HCZ0F Features

1. Transmissive with phototransistor output
2. Highlights :
• Compact Size
• Low Profi le
• Narrow Gap
• Through-hole : GP1S196HCZ0F
• SMT : GP1S196HCZSF
3. Key Parameters :
• Gap Width : 1.1mm
• Slit Width (detector side): 0.3mm
• Package : 3.1×2×2.7mm
4. Lead free and RoHS directive compliant

GP1S196HCZ0F Typical Application

1. General purpose detection of object presence or motion.
2. Example : printer, lens control for camera

GP1S196HCZSF Parameters

Technical/Catalog Information	GP1S196HCZSF
Vendor	Sharp Microelectronics
Category	Sensors, Transducers
Sensing Distance	0.043" (1.1mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	35V
Current - Collector (Ic) (Max)	20mA
Current - DC Forward (If)	30mA
Output Configuration	Phototransistor
Response Time	50s , 50s <!--50us-->
Type	Unamplified
Mounting Type	Surface Mount, Gull Wing
Package / Case	4-SMD
Packaging	Bulk
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GP1S196HCZSF GP1S196HCZSF 425 2510 5 ND 42525105ND 425-2510-5

GP1S196HCZSF General Description

GP1S196HCZSF Maximum Ratings

GP1S196HCZSF Features

GP1S196HCZSF Typical Application

1. General purpose detection of object presence or motion.
2. Example : printer, lens control for camera
