MFG:Fairchild Optoelectronics Group Category:Isolators Package Cooled:0026,0120,9912,9922, D/C:07+

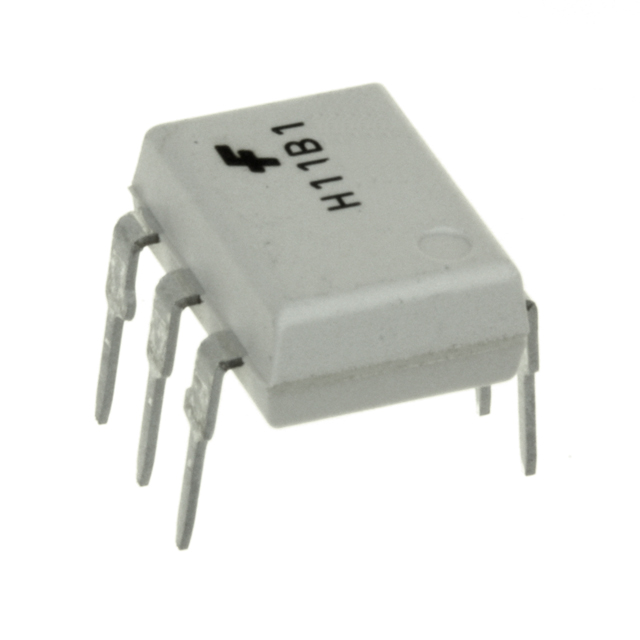

H11B13SD, H11B1M, H11B1S Datasheet download
Category: Isolators
MFG: Fairchild Optoelectronics Group
Package Cooled: 0026,0120,9912,9922,
D/C: 07+
Description: PHOTOCOUPLER DARL OUT GP 6DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: H1102
File Size: 107396 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: H1102
File Size: 107396 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: H1102
File Size: 107396 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | H11B1M |
| Vendor | Fairchild Optoelectronics Group |
| Category | Isolators |
| Voltage - Isolation | 5300Vrms |
| Input Type | DC |
| Output Type | Darlington with Base |
| Current - Output / Channel | 1mA |
| Voltage - Output | 25V |
| Vce Saturation (Max) | 1V |
| Current Transfer Ratio (Min) | 500% @ 5mA |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Wide |
| Packaging | Tube |
| Number of Circuits | 1 - Single |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | H11B1M H11B1M |
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing |
|---|---|---|---|---|---|---|---|
| H11B1SM | Full Production | RoHS Compliant | $0.403 | SMDIP-W | 6 | BULK | TBD |
| H11B1SR2M | Full Production | RoHS Compliant | $0.403 | SMDIP-W | 6 | TAPE REEL | TBD |
| H11B1VM | Full Production | RoHS Compliant | $0.403 | DIP-W | 6 | BULK | TBD |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
