H11F2M, H11F2S, H11F2SD Datasheet download
Category: Isolators
MFG: Fairchild Optoelectronics Group
Package Cooled: DIP-6
D/C: 2010+

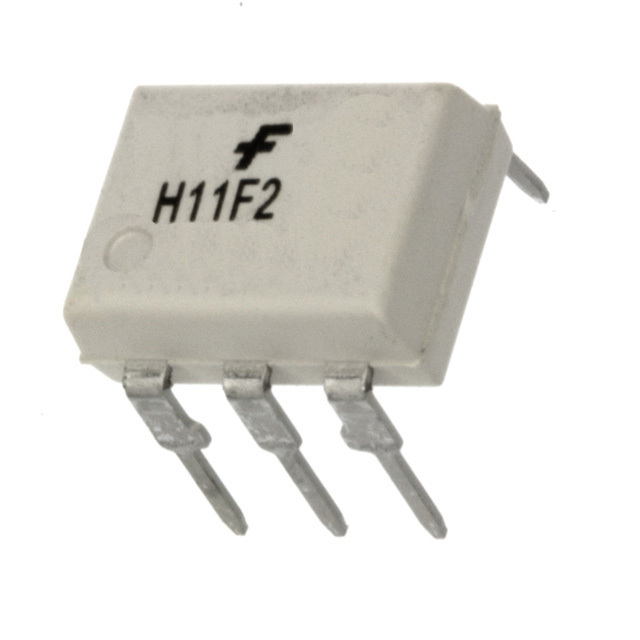

Description: OPTOCOUPLER PHOTO FET 6DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: H1102
File Size: 107396 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: H1102
File Size: 107396 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: H1102
File Size: 107396 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | H11F2M |
| Vendor | Fairchild Optoelectronics Group |
| Category | Isolators |
| Voltage - Isolation | 5300Vrms |
| Input Type | DC |
| Output Type | Transistor |
| Current - Output / Channel | 100mA |
| Voltage - Output | 30V |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Min) | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP |
| Packaging | Tube |
| Number of Circuits | 1 - Single |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | H11F2M H11F2M |
The H11FXM series consists of a Gallium-Aluminum-Arsenide IRED emitting diode coupled to a symmetrical bilateral silicon photo-detector. The detector is electrically isolated from the input and performs like an ideal isolated FET designed for distortion-free control of low level AC and DC analog signals. The H11FXM series devices are mounted in dual in-line packages.
|
Symbol |
Parameter |
Device |
Value |
Units |
|
TSTG TOPR TSOL |
Storage Temperature Operating Temperature Lead Solder Temperature |
All All All |
-55 to +150 -40 to +100 260 for 10 sec |
|
|
IF VR IF(pk) |
Continuous Forward Current Reverse Voltage Forward Current-Peak(10s pulse,1%duty cycle) |
All All All |
60 5 l |
mA V A |
|
PD |
LED Power Dissipation 25 Ambient Derate Linearly from 25 |
All |
100 |
mW |
|
1.33 |
mW/ | |||
|
PD |
Detector Power Dissipation @ 25 |
All |
300 |
mW |
| Derate linearly from 25 |
4.0 |
mW/ | ||
|
BV4-6 |
Breakdown Voltage (either polarity) |
H11F1M H11F2M |
±30 |
V |
|
H11F3M |
±15 |
V | ||
|
I4-6 |
Continuous Detector Current (either polarity) |
All |
±100 |
A |
