H11G3M, H11G3S, H11G3SD

Table of contents:
Info of H11G3M
Info of H11G3S
Info of H11G3SD

H11G3M, H11G3S, H11G3SD Selling Leads, Datasheet

MFG:Fairchild Optoelectronics Group Category:Isolators Package Cooled:DIP-W D/C:2010+

H11G3M, H11G3S, H11G3SD Datasheet download

Five Points

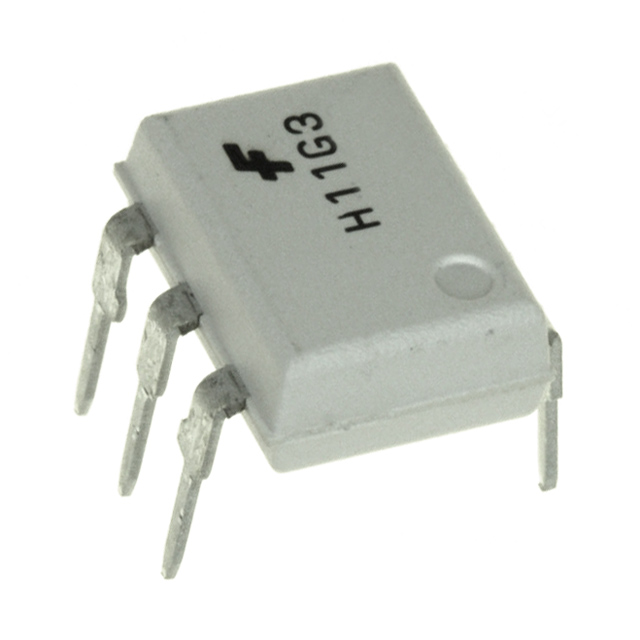

Part Number: H11G3M

Category: Isolators

MFG: Fairchild Optoelectronics Group

Package Cooled: DIP-W

D/C: 2010+

Description: OPTOCOUPLER PHOTODARL HV 6DIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

H11G3M Parameters

Technical/Catalog Information	H11G3M
Vendor	Fairchild Optoelectronics Group
Category	Isolators
Voltage - Isolation	5300Vrms
Input Type	DC
Output Type	Darlington with Base
Current - Output / Channel	150mA
Voltage - Output	100V
Vce Saturation (Max)	1V
Current Transfer Ratio (Min)	500% @ 5mA
Mounting Type	Through Hole
Package / Case	6-DIP
Packaging	Tube
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	H11G3M H11G3M

H11G3M General Description

The H11GXM series are photodarlington-type optically coupled optocouplers. These devices have a gallium arsenide infrared emitting diode coupled with a silicon darlington connected phototransistor which has an integral base-emitter resistor to optimize elevated temperature characteristics.

H11G3M Maximum Ratings

Symbol	Parameter	Value	Units
TOTAL DEVICE
T_STG T_OPR T_SOL	Storage Temperature Operating Temperature Lead Solder Temperature (Wave Solder)	-55 to +150 -40 to +100 260 for 10 sec
P_D	Total Device Power Dissipation @ T_A=25 Derate Above 25	260 3.5	mW mW/
EMITTER
I_F V_R I_F(pk)	Forward Input Current Reverse Input Voltage Forward Current Peak (1s pulse, 300pps)	60 6.0 3.0	mA V A
P_D	LED Power Dissipation @ T_A=25 Derate Above 25	100 1.8	mW mW/
DETECTOR
V_CEO	Collector-Emitter Voltage H11G1M H11G2M H11G3M	100 80 55	V
P_D	LED Power Dissipation @ T_A=25 Derate Above 25	200 2.67	mW mW/

H11G3M Features

High BV_CEO
Minimum 100V for H11G1M
Minimum 80V for H11G2M
Minimum 55V for H11G3M
High sensitivity to low input current
(Min. 500% CTR at I_F= 1mA)
Low leakage current at elevated temperature
(Max. 100A at 80)
Underwriters Laboratory (UL) recognized File # E90700, Volume 2

H11G3M Typical Application

CMOS logic interface
Telephone ring detector
Low input TTL interface
Power supply isolation
Replace pulse transformer
