HCTL-2032-SC, HCTL-2106, HCTLS245

Table of contents:
Info of HCTL-2032-SC
Info of HCTL-2106
Info of HCTLS245

HCTL-2032-SC, HCTL-2106, HCTLS245 Selling Leads, Datasheet

MFG:Avago Technologies US Inc. Category:Integrated Circuits (ICs) Package Cooled:SOP32 D/C:05+

HCTL-2032-SC, HCTL-2106, HCTLS245 Datasheet download

Five Points

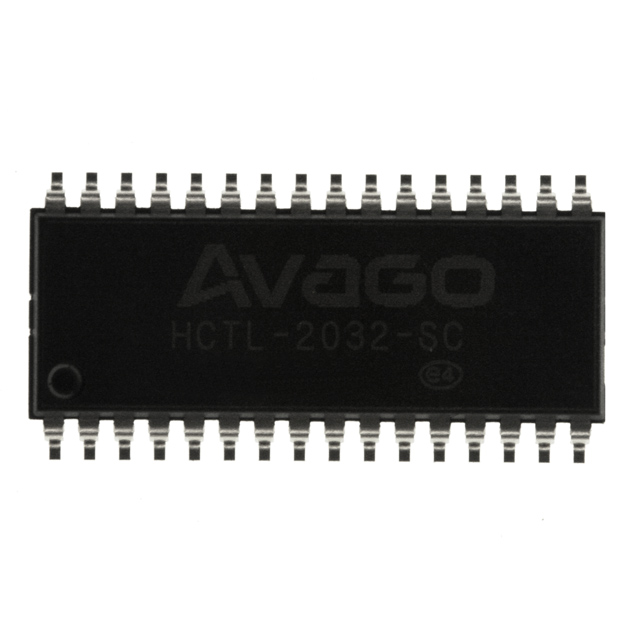

Part Number: HCTL-2032-SC

Category: Integrated Circuits (ICs)

MFG: Avago Technologies US Inc.

Package Cooled: SOP32

D/C: 05+

Description: IC DECODER/COUNTER 32BIT 32-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

HCTL-2032-SC Parameters

Technical/Catalog Information	HCTL-2032-SC
Vendor	Avago Technologies US Inc.
Category	Integrated Circuits (ICs)
Applications	Encoder to Microprocessor
Interface	8-Bit Tristate
Voltage - Supply	4.5 V ~ 5.5 V
Package / Case	32-SOIC
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HCTL 2032 SC HCTL2032SC 516 1885 5 ND 51618855ND 516-1885-5

HCTL-2032-SC General Description

The HCTL-2032 is CMOS ICs that perform the quadrature decoder, counter, and bus interface function. The HCTL-2032 is designed to improve system performance in digital closed loop motion control systems and digital data input systems. It does this by shifting time intensive quadrature decoder functions to a cost effective hardware solution. The HCTL-2032 consists of 4x/2x/1x-quadrature decoder, a binary up/down state counter, and an 8-bit bus interface. The HCTL-2032 has the dual-axis capability and index channel counter. The use of Schmitt-triggered CMOS inputs and input noise filters allows reliable operation in noisy environments. The HCTL-2032 contains 32-bit counter. It also contains quadrature decoder output signals and cascade signals for use with many standard computer ICs. The HCTL-2032 provides LSTLL compatible tri-state output buffers. Operation is specified for a temperature range from -40^oC to 100^oC at clock frequencies up to 33MHz.

HCTL-2032-SC Maximum Ratings

33 MHz Clock Operation-Typically operates between 2MHz and 33MHz allowing the flexibility of operation with a wide range of motor speeds

Single or Dual Axis Support-One HCTL-2032 IC can support single or dual axes. Hence the benefits in terms of less components on board and cost savings are inevitable

32-Bit Binary Up/Down Counter-The large counter allows the IC to operate without the support of extra memory. This feature reduces the number of supporting components needed on board and in turn is a cost saving.

Operating Temperature: -40 degrees C to 100 degrees C-The wider operating temperature range makes the IC suitable for industrial automation operations which typically apply similar temperature ranges. This feature is not available in our existing products and also our direct competitors product range.

HCTL-2032-SC Features

• Interfaces Encoder to Microprocessor
• 33 MHz Clock Operation
• Programmable Count Modes (1x, 2x or 4x)
• Single or Dual Axis Support
• Index Channel Support
• High Noise Immunity:
• Schmitt Trigger Inputs and Digital Noise Filter
• 32-Bit Binary Up/Down Counter
• Latched Outputs
• 8-Bit Tristate Interface
• 8, 16, 24, or 32-Bit Operating Modes
• Quadrature Decoder Output Signals, Up/Down and Count
• Cascade Output Signals, Up/Down and Count
• Substantially Reduced System Software
• 5V Operation (VDD - VSS)
• TTL/CMOS Compatible I/O
• Operating Temperature: -40 to 100
• 32-Pin PDIP, 32-Pin SOIC, 20-Pin PD

HCTL-2032-SC Typical Application

• Interface Quadrature Incremental Encoders to Microprocessors
• Interface Digital Potentiometers to Digital Data Input Buses

HCTL-2032-SC Connection Diagram
