MFG:Avago Technologies US Inc. Category:Integrated Circuits (ICs) Package Cooled:Original Package D/C:08+/09+

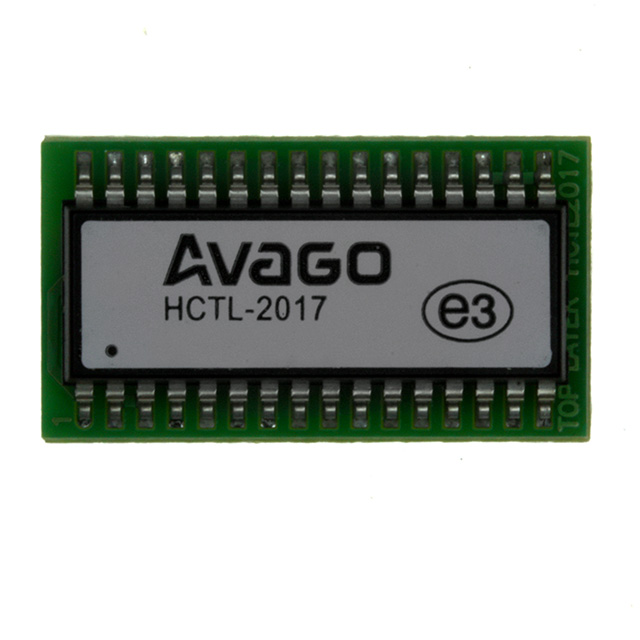

HCTL2017, HCTL-2017, HCTL-2020PCL Datasheet download
Category: Integrated Circuits (ICs)
MFG: Avago Technologies US Inc.
Package Cooled: Original Package
D/C: 08+/09+
Description: IC DECODER/COUNTER 16BIT 16-DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: HCT04
File Size: 34512 KB
Manufacturer: SLS [System Logic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HCT04
File Size: 34512 KB
Manufacturer: SLS [System Logic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HCT04
File Size: 34512 KB
Manufacturer: SLS [System Logic Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | HCTL-2017 |
| Vendor | Avago Technologies US Inc. |
| Category | Integrated Circuits (ICs) |
| Applications | Encoder to Microprocessor |
| Interface | 8-Bit Tristate |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Package / Case | 16-DIP |
| Packaging | Tube |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HCTL 2017 HCTL2017 516 2010 ND 5162010ND 516-2010 |
The HCTL-2021/2017 is CMOS ICs that performs the quadrature decoder, counter, and bus interface function. The HCTL-2021/2017 is designed to improve system performance in digital closed loop motion control systems and digital data input systems. It does this by shifting time intensive quadrature decoder functions to a cost effective hardware solution. The HCTL-2021/2017 consists of a quadrature decoder logic, a binary up/down state counter, and an 8-bit bus interface. The use of Schmitt-triggered CMOS inputs and input noise filters allows reliable operation in noisy environments. The HCTL-2021/2017 contains 16-bit counter and provides TLL/CMOS compatible tri-state output buffers. Operation is specified for a temperature range from 40 to +85°C at clock frequencies up to 33MHz.
The HCTL-2021/2017 provides quadrature decoder output signals and cascade signals for use with many standard computer ICs.
The HCTL-2021/2017 is compliant to RoHS directive and had been declared as a lead free product.
|
Parameter |
Symbol |
Limits |
Units |
| DC Supply Voltage |
VDD |
-0.3 to +6.0 |
V |
| Input Voltage |
VIN |
-0.3 to (VDD +0.3) |
V |
| Storage Temperature |
TS |
-40 to +100 |
|
| Operating Temperature [1] |
TA |
-40 to +85 |
• Interfaces Encoder to Microprocessor
• 33 MHz Clock Operation
• High Noise Immunity: Schmitt Trigger Inputs and Digital Noise Filter
• 16-Bit Binary Up/Down Counter
• Latched Outputs
• 8-Bit Tristate Interface
• 8 or 16-Bit Operating Modes
• Quadrature Decoder Output Signals, Up/Down and Count
• Cascade Output Signals, Up/Down and Count
• Substantially Reduced System Software
• 5V Operation (VDD VSS)
• TTL/CMOS Compatible I/O
• Operating Temperature: -40 to 85
• 16-pin and 20-Pin Launch Pad
