MFG:Avago Technologies US Inc. Category:Optoelectronics Package Cooled:DIP D/C:06+
HDSP-5538, HDSP-5551, HDSP-5553 Datasheet download
Category: Optoelectronics
MFG: Avago Technologies US Inc.
Package Cooled: DIP
D/C: 06+
Description: LED 7-SEG 14.2MM CC HE RED RHD
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: HDSP-076
File Size: 121610 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HDSP-5551-00000
File Size: 348904 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HDSP-5553-00000
File Size: 348904 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
The 14.2 mm (0.56 inch) LED overflow character display is designed for viewing distances up to 7 metres (23 feet). This device use an industry standard size package and pinout. The numeric device feature a right hand decimal point.This is a common cathode device.This display is ideal for most applications.

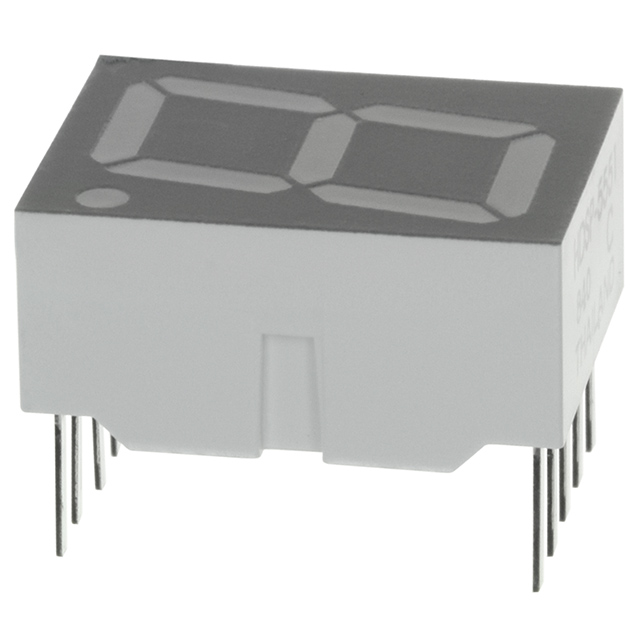

| Technical/Catalog Information | HDSP-5551 |
| Vendor | Avago Technologies US Inc. |
| Category | Optoelectronics |
| Display Type | 7-Segment |
| Color | Red |
| Package / Case | 14-DIP |
| Number of Digits/Alpha | 1 |
| Size / Dimension | 0.49" L X 0.67" W X 0.32" H (12.4mm x 17.1mm x 8mm) |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HDSP 5551 HDSP5551 516 1230 5 ND 51612305ND 516-1230-5 |
These low current seven segment displays are designed for applica tions requiring low power consumption. They are tested and selected for their excellent low current characteristics to ensure that the segments are matched at low currents. Drive currents as low as 2 mA per segment are available.Pin for pin equivalent displays are also available in a standard current or high light ambient design. The standard current displays are available and are ideal for most applications. The high light ambient displays are ideal for sunlight ambients or long string lengths. For additional information see the 14.2 mm Seven Segment Displays or High Light Ambient Seven Segment Displays data sheets.
| Technical/Catalog Information | HDSP-5553 |
| Vendor | Avago Technologies US Inc. |
| Category | Optoelectronics |
| Display Type | 7-Segment |
| Color | Red |
| Package / Case | 14-DIP |
| Number of Digits/Alpha | 1 |
| Size / Dimension | 0.49" L X 0.67" W X 0.32" H (12.4mm x 17.1mm x 8mm) |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HDSP 5553 HDSP5553 516 1231 5 ND 51612315ND 516-1231-5 |
These low current seven segment displays are designed for applica tions requiring low power consumption. They are tested and selected for their excellent low current characteristics to ensure that the segments are matched at low currents. Drive currents as low as 2 mA per segment are available.Pin for pin equivalent displays are also available in a standard current or high light ambient design. The standard current displays are available and are ideal for most applications. The high light ambient displays are ideal for sunlight ambients or long string lengths. For additional information see the 14.2 mm Seven Segment Displays or High Light Ambient Seven Segment Displays data sheets.
