MFG:Avago Technologies US Inc. Category:Optoelectronics Package Cooled:DIP D/C:09+
HDSP-5557, HDSP-5558, HDSP-5601 Datasheet download
Category: Optoelectronics
MFG: Avago Technologies US Inc.
Package Cooled: DIP
D/C: 09+
Description: LED 7-SEG 14.2MM CA GREEN RHD
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: HDSP-5557-00000
File Size: 348904 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HDSP-5558-00000
File Size: 348904 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HDSP-5601-00000
File Size: 296435 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
These low current seven segment displays are designed for application requiring low power consumption. They are tested and selected for their excellent low current characteristics to ensure that the segments are matched at low currents. Drive currents as low as 1 mA per segment are available.
Pin for pin equivalent displays are also available in a standard current or high light ambient design. The standard current displays are available in all colors and are ideal for most applications. The high light ambient displays are ideal for sunlight ambients or long string lengths.
These low current seven segment displays are designed for application requiring low power consumption. They are tested and selected for their excellent low current characteristics to ensure that the segments are matched at low currents. Drive currents as low as 1 mA per segment are available.
Pin for pin equivalent displays are also available in a standard current or high light ambient design. The standard current displays are available in all colors and are ideal for most applications. The high light ambient displays are ideal for sunlight ambients or long string lengths.

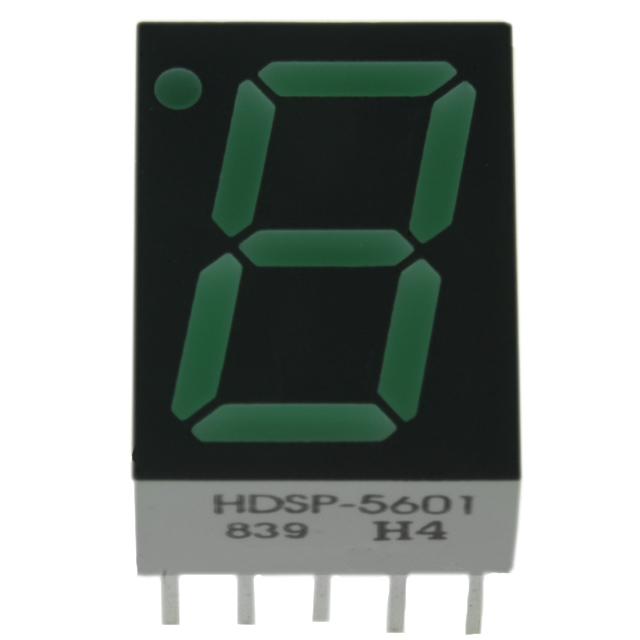

| Technical/Catalog Information | HDSP-5601 |
| Vendor | Avago Technologies US Inc. |
| Category | Optoelectronics |
| Display Type | 7-Segment |
| Color | Green |
| Package / Case | 10-DIP |
| Number of Digits/Alpha | 1 |
| Size / Dimension | 0.49" L X 0.67" W X 0.32" H (12.4mm x 17.1mm x 8mm) |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HDSP 5601 HDSP5601 516 1214 5 ND 51612145ND 516-1214-5 |
The 14.2 mm (0.56 inch) LED seven segment display is designed for viewing distances up to 7 metres (23 feet). This device use an industry standard size package and pinout. The numeric device feature a right hand decimal point.This is a common anode device.This display is ideal for most applications.
