HEDS-1300, HEDS1500, HEDS-1500

Table of contents:
Info of HEDS-1300
Info of HEDS1500
Info of HEDS-1500

HEDS-1300, HEDS1500, HEDS-1500 Selling Leads, Datasheet

MFG:Lite-On Inc Category:Sensors, Transducers Package Cooled:CAN8 D/C:dc0608

HEDS-1300, HEDS1500, HEDS-1500 Datasheet download

Five Points

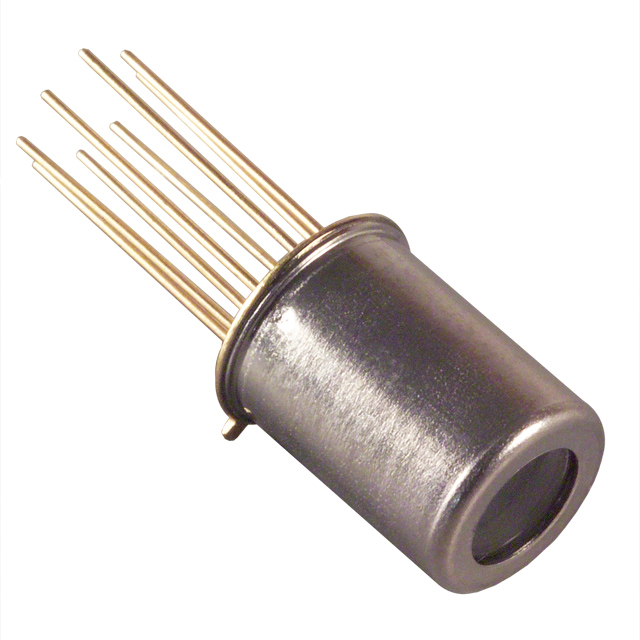

Part Number: HEDS-1500

Category: Sensors, Transducers

MFG: Lite-On Inc

Package Cooled: CAN8

D/C: dc0608

Description: INTERRUPTER REFLECT 8-PIN TO-5

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

HEDS-1300 General Description

Both the HEDS-1200 and HEDS-1300 sensor are fully integrated modules designed for applications requiring optical reflective sensing. The modules contain an LED emitter (at the appropriate wavelengths) and a matched I.C. photodetector.

A bifurcated aspheric lens is used to image the active areas of the emitter and the detector to a single spot that defines the resolution of the sensor. The output signal is a current generated by the photodiode.

HEDS-1300 Maximum Ratings

Parameter	Symbol	HEDS-	Min.	Max.	Units	Fig.	Notes
Storage Temperature	Ts	1200	-40	+75	°C
Storage Temperature	Ts	1300	-40	+75	°C
Operating Temperature	TA	1200	-20	+70	°C
Operating Temperature	TA	1300	-20	+70	°C
Lead Soldering Temperature 1.6 mm from Seating Plane		1200		260°C for 10 sec.			1
Lead Soldering Temperature 1.6 mm from Seating Plane		1300		260°C for 10 sec.			1
Average LED Forward Current	If	1200	10	40	mA		3
Average LED Forward Current	If	1300		50	mA		2
Peak LED Forward Current	Ifpk	1200		40	mA	7	4
Peak LED Forward Current	Ifpk	1300		75	mA	7	4
Reverse LED Input Voltage	Vr	1200		2.5	V
Reverse LED Input Voltage	Vr	1300		5.0	V
Photodiode Bias (Id = 100 mA max)	Vd	1200	-0.3	20	V		5
Photodiode Bias (Id = 100 mA max)	Vd	1300	-0.3	20	V		5

HEDS-1300 Features

• Focused Emitter and Detector in a Single Package
• TO5 Package
• Binning of Sensors by Photocurrent (Ipr)

HEDS-1300 Typical Application

• Bar Code Scanning
• Pattern Recognition and Verification
• Object Sizing
• Optical Limit Switching
• Optical/Surface Inspection
• Tachometry
• Edge/Line Sensing
• Dimensional Monitoring

HEDS-1300 Connection Diagram

HEDS-1500 Parameters

Technical/Catalog Information	HEDS-1500
Vendor	Lite-On Inc
Category	Sensors, Transducers
Sensing Distance	0.168" (4.27mm)
Sensing Method	Reflective
Output Type	Phototransistor
Voltage - Collector Emitter Breakdown (Max)	-
Current - Collector (Ic) (Max)	-
Current - DC Forward (If)	50mA
Response Time	-
Operating Temperature	-20°C ~ 70°C
Features	Focused Emitter and Detector
Mounting Type	Through Hole
Package / Case	TO-5
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	HEDS 1500 HEDS1500 516 1270 ND 5161270ND 516-1270

HEDS-1500 General Description

The HEDS-1500 is a fully integrated module designed for applications requiring optical reflective sensing. The module contains a 655 nm visible LED emitter and a matched I.C. photodetector.

A bifurcated aspheric lens is used to image the active areas of the emitter and the detector to a single spot 4.27 mm (0.168 in.) in front of the package. The output signal is a current generated by the photodiode.

HEDS-1500 Maximum Ratings

Parameter	Symbol	Min.	Max.	Units	Note
Operating Temperature	T_A	-20	70	°C
Storage Temperature	T_S	-40	75	°C
Lead Soldering Temperature			260 for 10 sec.	°C	1
Average LED Forward Current	I_f		50	mA
Peak LED Forward Current	I_fp		(data pending)		2
Reverse LED Input Voltage	V_r		5	V
Photodiode Bias (-V = forward bias)	V_d	-0.3	7	V	3

HEDS-1500 Features

• Focused Emitter and Detector in a Single Package
• 655 nm Visible Emitter
• 0.178 mm (0.007) Resolution
• TO-5 Miniature Sealed Package
• Photodiode Output

HEDS-1500 Typical Application

Applications for the HEDS-1500 include bar code scanning, pattern recognition and verification, object sizing, optical limit switching, tachometry, textile thread counting and defect detection, dimensional monitoring, line locating, paper edge detection, and any application where precision optical reflective sensing is desired.

HEDS-1500 Connection Diagram
