MFG:TDK Corporation (VA) Category:Transformers Package Cooled:30402 D/C:05+

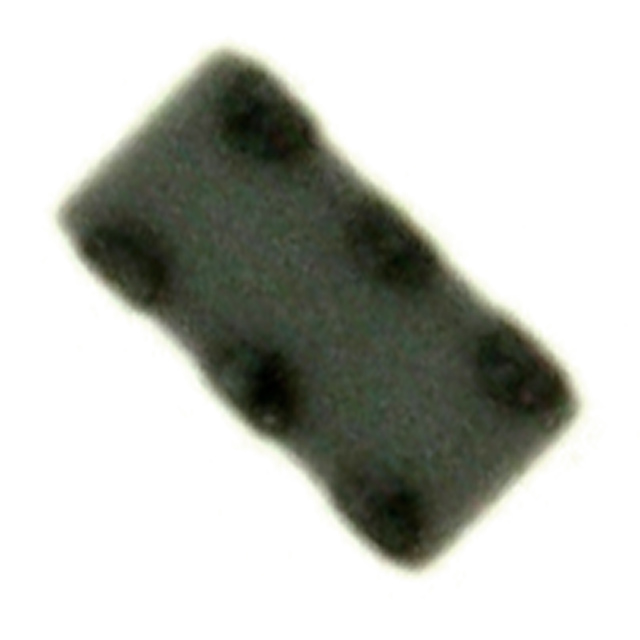

HHM1710D1, HHM1711D1, HHM1711D2 Datasheet download
Category: Transformers
MFG: TDK Corporation (VA)
Package Cooled: 30402
D/C: 05+
Description: XFRMR BALUN RF 2.4GHZ SMD
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: HHM1520
File Size: 208035 KB
Manufacturer: TDK
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HHM1711D1
File Size: 40549 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HHM1520
File Size: 208035 KB
Manufacturer: TDK
Download : Click here to Download
| Technical/Catalog Information | HHM1710D1 |
| Vendor | TDK Corporation |
| Category | Transformers |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 metric) |
| Frequency Range | 2.4 ~ 2.5GHz |
| Impedance - Unbalanced/Balanced | 50 / 50 Ohm |
| Insertion Loss (Max) | 1.2dB |
| Return Loss (Min) | 10dB |
| Phase Difference | 180° ±10 |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HHM1710D1 HHM1710D1 445 3246 2 ND 44532462ND 445-3246-2 |
| Technical/Catalog Information | HHM1711D1 |
| Vendor | TDK Corporation (VA) |
| Category | Transformers |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 metric) |
| Frequency Range | 2.4 ~ 2.5GHz |
| Impedance - Unbalanced/Balanced | 50 / 100 Ohm |
| Insertion Loss (Max) | 1.2dB |
| Return Loss (Min) | 10dB |
| Phase Difference | 180° ±10 |
| Packaging | Digi-Reel? |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HHM1711D1 HHM1711D1 445 1232 6 ND 44512326ND 445-1232-6 |
