HSSR-7110, HSSR-7111, HSSR-7112

Table of contents:
Info of HSSR-7110
Info of HSSR-7111
Info of HSSR-7112

HSSR-7110, HSSR-7111, HSSR-7112 Selling Leads, Datasheet

MFG:Avago Technologies US Inc. Category:Isolators Package Cooled:CDIP8 D/C:07+/08+

HSSR-7110, HSSR-7111, HSSR-7112 Datasheet download

Five Points

Part Number: HSSR-7110

Category: Isolators

MFG: Avago Technologies US Inc.

Package Cooled: CDIP8

D/C: 07+/08+

Description: OPTOCOUPLER PWR MOSFET 1CH DIP

Price Break

1
10
100
250
500
1000

Unit Price

89.78000
80.32500
64.96880
62.84252
60.24376
57.88125

Extended Price

89.78
803.25
6496.88
15710.63
30121.88
57881.25

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

HSSR-7110 Parameters

Technical/Catalog Information	HSSR-7110
Vendor	Avago Technologies US Inc.
Category	Isolators
Mounting Type	Through Hole
Package / Case	8-DIP
Voltage - Isolation	-
Configuration	1, One Direction
Input Type	DC
Output Type	Open Collector
Data Rate	-
Current - Output / Channel	800mA
Packaging	Tube
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant by Exemption
Other Names	HSSR 7110 HSSR7110 516 1943 5 ND 51619435ND 516-1943-5

HSSR-7110 General Description

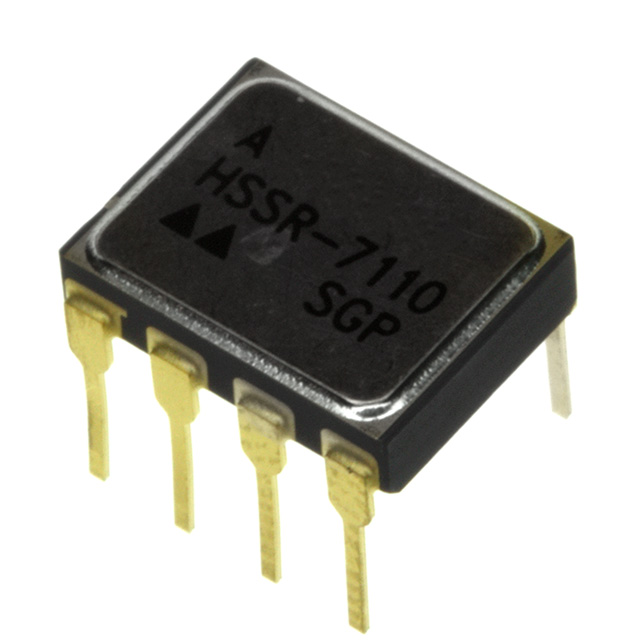

The HSSR-7110 is a single channel hermetically sealed power MOSFET optocoupler in an 8-Pin DIP ceramic package with gold plated leads. Solder dipped leads and various lead form options are also available. See the datasheet for details.
The device operates exactly like a solid-state relay. The product is capable of operation and storage over the full military temperature range and may also be purchased with full MIL-PRF-38534 Class H testing (HSSR-7111), or from the DSCC Standard Microcircuit Drawing (SMD) 5962-93140.
The devices are manufactured and tested on a MIL-PRF-38534 certified line and Class H devices are included in the DSCC Qualified Manufacturers List, QML-38534 for Hybrid Microcircuits. Each device contains an AlGaAs light emitting diode optically coupled to a photovoltaic diode stack which drives two discrete power MOSFETs. The device operates as a solid-state replacement for single-pole, normally open, (1 Form A) relays used for general purpose switching of signals and loads in high reliability applications.
The devices feature logic level input control and very low output on-resistance, making them suitable for both ac and dc loads. Connection A, as shown in the datasheet Functional Diagram, allows for the device to switch either ac or dc loads. Connection B, with the polarity and pin configurations as shown in the datasheet, allows the device to switch dc loads only. The advantage of Connection B is that the on-resistance is significantly reduced, and the output current capability increases by a factor of two.
The devices are convenient replacements for mechanical and solid state relays where high component reliability with standard footprint lead configuration is desirable.
This product is designed to switch loads on 28 Vdc power systems. They meet 80 V surge and /- 600 V spike requirements.

HSSR-7110 Features

• Dual Marked with Device Part Number and DSCC Standard Microcircuit Drawing
• ac/dc Signal & Power Switching
• Compact Solid-State Bidirectional Switch
• Manufactured and Tested on a MIL-PRF-38534 Certified Line
• QML-38534
• MIL-PRF-38534 Class H
• Space Level Processing Available
• Hermetically Sealed 8-Pin Dual In-Line Package
• Small Size and Weight
• Performance Guaranteed over -55°C to +125°C
• Connection A 0.8 A, 1.0 W
• Connection B 1.6 A, 0.25 W
• 1500 Vdc Withstand Test Voltage
• High Transient Immunity
• 5 Amp Output Surge Current

HSSR-7110 Typical Application

• Military and Space
• High Reliability Systems
• Standard 28 Vdc and 48 Vdc Load Driver
• Standard 24 Vac Load Driver
• Aircraft Controls
• ac/dc Electromechanical and Solid State Relay Replacement
• I/O Modules
• Harsh Industrial Environments

HSSR-7111 Parameters

Technical/Catalog Information	HSSR-7111
Vendor	Avago Technologies US Inc.
Category	Isolators
Mounting Type	Through Hole
Package / Case	8-DIP
Isolation Voltage	-
Configuration	1, One Direction
Input Type	DC
Output Type	Open Collector
Data Rate	-
Current - Output/Channel	800mA
Packaging	Tube
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant by Exemption
Other Names	HSSR 7111 HSSR7111

HSSR-7111 General Description

The HSSR-7111 is a high reliability Class H single channel hermetically sealed power MOSFET optocoupler in an 8-Pin DIP ceramic package with gold plated leads. Solder dipped leads and various lead form options are also available. See data sheet for details.
The device operates exactly like a solid-state relay. The product is capable of operation and storage over the full military temperature range and may also be purchased as a commercial grade (HSSR-7110) or as a Class H from the DSCC Standard Microcircuit Drawing (SMD) 5962-93140.
The HSSR-7111 is manufactured and tested on a MIL-PRF-38534 certified line and is included in the DSCC Qualified Manufacturers List, QML-38534 for Hybrid Microcircuits. Each device contains an AlGaAs light emitting diode optically coupled to a photovoltaic diode stack which drives two discrete power MOSFETs. The device operates as a solid-state replacement for single-pole, normally open, (1 Form A) relays used for general purpose switching of signals and loads in high reliability applications.
The devices feature logic level input control and very low output on-resistance, making them suitable for both ac and dc loads. Connection A, as shown in the datasheet Functional Diagram, allows for the device to switch either ac or dc loads. Connection B, with the polarity and pin configurations as shown in the datasheet, allows the device to switch dc loads only. The advantage of Connection B is that the on-resistance is significantly reduced, and the output current capability increases by a factor of two.
The HSSR-7111 is a convenient replacement for mechanical and solid state relays where high component reliability with standard footprint lead configuration is desirable.
This product is designed to switch loads on 28 Vdc power systems. They meet 80 V surge and /- 600 V spike requirements.

HSSR-7112 Parameters

Technical/Catalog Information	HSSR-7112
Vendor	Avago Technologies US Inc.
Category	Isolators
Mounting Type	Through Hole
Package / Case	8-DIP
Isolation Voltage	-
Configuration	1, One Direction
Input Type	DC
Output Type	Open Collector
Data Rate	-
Current - Output/Channel	800mA
Packaging	Tube
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant by Exemption
Other Names	HSSR 7112 HSSR7112
