ICL7660SIBAZ, ICL7660SIPA, ICL7660SIPAZ

Table of contents:
Info of ICL7660SIBAZ
Info of ICL7660SIPA
Info of ICL7660SIPAZ

ICL7660SIBAZ, ICL7660SIPA, ICL7660SIPAZ Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:SOP/DIP D/C:0901+

ICL7660SIBAZ, ICL7660SIPA, ICL7660SIPAZ Datasheet download

Five Points

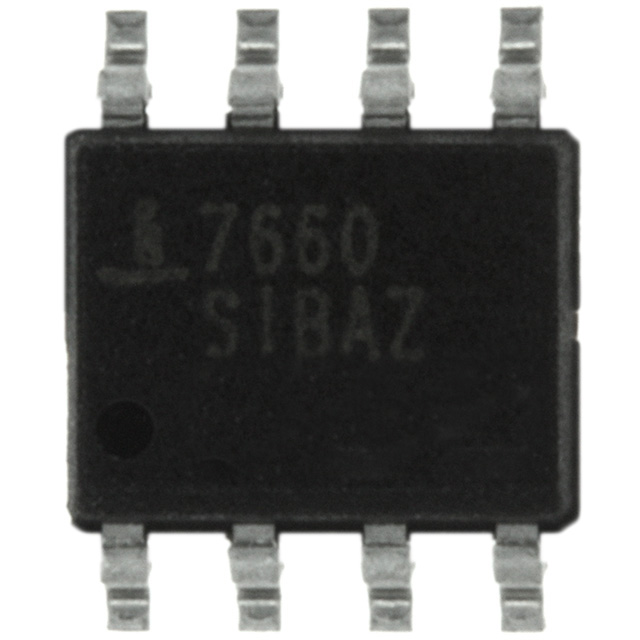

Part Number: ICL7660SIBAZ

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: SOP/DIP

D/C: 0901+

Description: IC CONVERTER VOLT CMOS 12V 8DIP

Price Break

1
25
100

Unit Price

2.04000
1.17000
.80000

Extended Price

2.04
29.25
80.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ICL7660SIBAZ Parameters

Technical/Catalog Information	ICL7660SIBAZ
Vendor	Intersil
Category	Integrated Circuits (ICs)
Type	Switched Capacitor (Charge Pump), Doubler, Inverting
Number of Outputs	1
Voltage - Input	1.5 ~ 12 V
Voltage - Output	-
Current - Output	-
Power - Output	-
Package / Case	8-SOIC
Packaging	Tube
Internal Switch(s)	Yes
Synchronous	No
Rds (On)	-
Operating Temperature	-40°C ~ 85°C
Frequency - Switching	10kHz, 35kHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ICL7660SIBAZ ICL7660SIBAZ

ICL7660SIBAZ General Description

The ICL7660SIBAZ belongs to the ICL7660S series. The ICL7660S super voltage converter is a monolithic CMOS voltage conversion IC that guarantees significant performance advantages over other similar devices. It is available in 8 lead SOIC package which is Pb-free. Besides, It can be used in many occasions such as simple conversion,voltage multiplication,negative supplies for data acquisition systems and instrumentation,RS232 power supplies and supply splitter.

There are some features as follows. (1) guaranteed lower max supply current for all temperature ranges; (2) wide operating voltage range; (3) no external diode over full temperature and voltage range; (4) boost pin (pin 1) for higher switching frequency; (5) guaranteed minimum power efficiency of 96 %; (6) improved minimum open circuit voltage conversion efficiency of 99%; (7) improved scr latchup protection; (8) simple conversion; (9) simple voltage multiplication; (10) easy to use-requires only 2 external non-criticalpassive components; (11) improved direct replacement for industry standard ICL7660 and other second source devices.

What comes next is about its absolute maximum ratings. (1): supply voltage is 13.0 V; (2): LV and OSC input voltage is from -0.3 V to VCC+0.3 V when VCC is less than 5.5 V,and is from VCC-5.5 V to VCC+0.3 V otherwise; (3): current into LV is 20 A; (4): continuous output short duration at VCC is less than 5.5 V; (5): storage temperature range is from -65 to 150 ; (6): operating temperature is from -40 to 85 .

ICL7660SIBAZ Connection Diagram

ICL7660SIPA Parameters

Technical/Catalog Information	ICL7660SIPA
Vendor	Intersil
Category	Integrated Circuits (ICs)
Type	Switched Capacitor (Charge Pump), Doubler, Inverting
Number of Outputs	1
Voltage - Input	1.5 ~ 12 V
Voltage - Output	-
Current - Output	-
Power - Output	-
Package / Case	8-DIP
Packaging	Tube
Internal Switch(s)	Yes
Synchronous	No
Rds (On)	-
Operating Temperature	-40°C ~ 85°C
Frequency - Switching	10kHz, 35kHz
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ICL7660SIPA ICL7660SIPA

ICL7660SIPAZ Parameters

Technical/Catalog Information	ICL7660SIPAZ
Vendor	Intersil
Category	Integrated Circuits (ICs)
Type	Switched Capacitor (Charge Pump), Doubler, Inverting
Number of Outputs	1
Voltage - Input	1.5 ~ 12 V
Voltage - Output	-
Current - Output	-
Power - Output	-
Package / Case	8-DIP (300 mil)
Packaging	Tube
Internal Switch(s)	Yes
Synchronous	No
Rds (On)	-
Operating Temperature	-40°C ~ 85°C
Frequency - Switching	10kHz, 35kHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ICL7660SIPAZ ICL7660SIPAZ
