V = 15 V, T = 125C, R = 22 Clamped inductive load, L = 100 H
ICM = 20 @ 0.8 VCES
A
PC
TC = 25
100
W
TJ TJM Tstg
-55 ... +150
150
-55 ... +150
Maximum Lead and Tab temperature for soldering 1.6 mm (0.062 in.) from case for 10 s
300
Md
Mounting torque, TO-247 AD
1.13/10
Nm/lb.in.
Weight
TO-247 AD TO-268
6 4
g g
IXGH20N60B Features
• International standard packagesJEDEC TO-268 surfacemountable and JEDEC TO-247 AD • High current handling capability • Latest generation HDMOSTM process • MOS Gate turn-on - drive simplicity
IXGH20N60B Typical Application
• AC motor speed control • DC servo and robot drives • DC choppers • Uninterruptible power supplies (UPS) • Switched-mode and resonant-modepower supplies
IXGH24N60C Parameters
Technical/Catalog Information

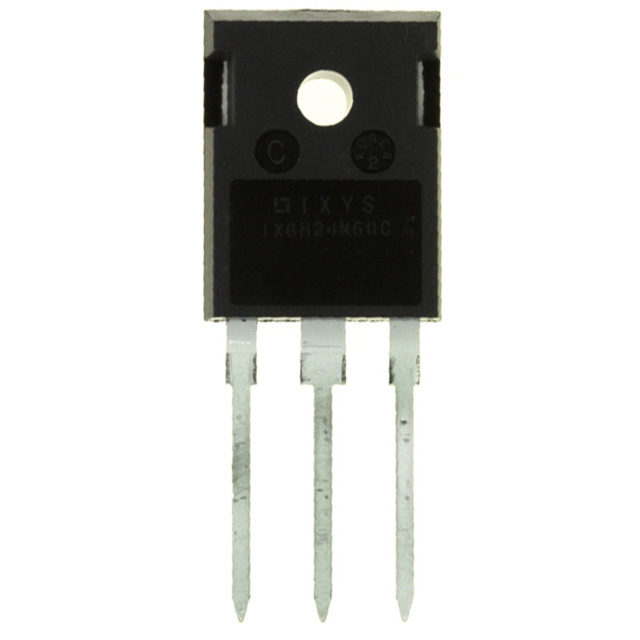

IXGH24N60C
Vendor
IXYS
Category
Discrete Semiconductor Products
Input Type
Standard
Voltage - Collector Emitter Breakdown (Max)
600V
Current - Collector (Ic) (Max)
48A
Vce(on) (Max) @ Vge, Ic
2.5V @ 15V, 24A
Power - Max
150W
Mounting Type
Through Hole
Package / Case
TO-247AD
Packaging
Bulk
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
IXGH24N60C IXGH24N60C
IXGH24N60C Features
• International standard packages JEDEC TO-247 and surface mountable TO-268 • High frequency IGBT • High current handling capability • Latest generation HDMOSTM process • MOS Gate turn-on - drive simplicity
IXGH24N60C Typical Application
• PFC circuits • Uninterruptible power supplies (UPS) • Switched-mode and resonant-mode power supplies • AC motor speed control • DC servo and robot drives • DC choppers
