L293D, L293D20, L293DD

Table of contents:
Info of L293D
Info of L293D20
Info of L293DD

L293D, L293D20, L293DD Selling Leads, Datasheet

MFG:STMicroelectronics Category:Integrated Circuits (ICs) Package Cooled:DIP16 D/C:07+

L293D, L293D20, L293DD Datasheet download

Five Points

Part Number: L293D

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics

Package Cooled: DIP16

D/C: 07+

Description: IC DVR P/P 4CH W/DIODES 20-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

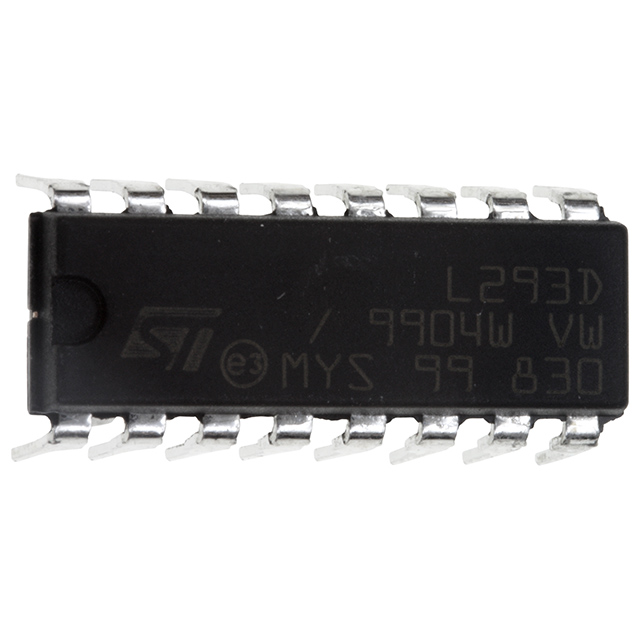

L293D Parameters

Technical/Catalog Information	L293D
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	16-DIP
Mounting Type	Through Hole
Type	Half Bridge
Voltage - Supply	4.5 V ~ 36 V
On-State Resistance	-
Current - Output / Channel	600mA
Current - Peak Output	1.2A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	4
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L293D L293D 497 2936 5 ND 49729365ND 497-2936-5

L293D General Description

On the L293, external high-speed output clamp diodes should be used for inductive transient suppression. A V_CC1 terminal, separate fromV CC2, is provided for the logic inputs to minimize device power dissipation.

The L293and L293D are characterized for operation from 0C to 70C.

L293D Features

·Featuring Unitrode L293 and L293D Products Now From Texas Instruments
·Wide Supply-Voltage Range: 4.5 V to 36 V
·Separate Input-Logic Supply
·Internal ESD Protection
·Thermal Shutdown
·High-Noise-Immunity Inputs
·Functionally Similar to SGS L293 and SGS L293D
·Output Current 1 A Per Channel (600 mA for L293D)
·Peak Output Current 2 A Per Channel (1.2 A for L293D)
·Output Clamp Diodes for Inductive Transient Suppression (L293D)

L293D Connection Diagram

www.ti.com

L293DD Parameters

Technical/Catalog Information	L293DD
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	20-SOIC (7.5mm Width)
Mounting Type	Surface Mount
Type	Half Bridge
Voltage - Supply	4.5 V ~ 36 V
On-State Resistance	-
Current - Output / Channel	600mA
Current - Peak Output	1.2A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	4
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L293DD L293DD 497 1390 5 ND 49713905ND 497-1390-5
