L4964, L4968, L4969

Table of contents:
Info of L4964
Info of L4968
Info of L4969

L4964, L4968, L4969 Selling Leads, Datasheet

MFG:STMicroelectronics Category:Integrated Circuits (ICs) Package Cooled:MULTIWATT15 D/C:05+

L4964, L4968, L4969 Datasheet download

Five Points

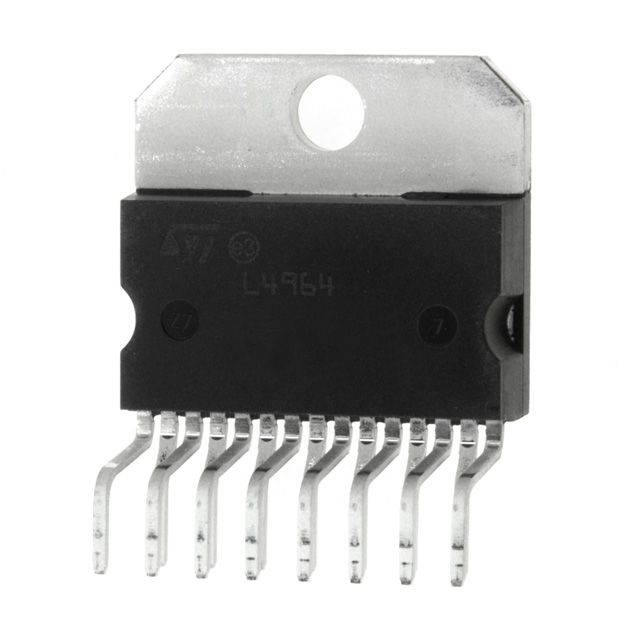

Part Number: L4964

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics

Package Cooled: MULTIWATT15

D/C: 05+

Description: IC REG SW HIGH CURR MULTIWATT15

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

L4964 Parameters

Technical/Catalog Information	L4964
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Type	Step-Down (Buck)
Number of Outputs	1
Voltage - Input	9 ~ 36 V
Voltage - Output	5.1 ~ 28 V
Current - Output	4A
Power - Output	20W
Package / Case	Multiwatt-15 (Vertical, Bent and Staggered Leads)
Packaging	Tube
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	-
Operating Temperature	0°C ~ 125°C
Frequency - Switching	50kHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L4964 L4964 497 1409 5 ND 49714095ND 497-1409-5

L4964 General Description

The L4964 is a stepdownpower switching regulator delivering4A at a voltage variable from 5.1V to 28V.

Features of the device include overload protection, soft start, remote inhibit, thermal protection, a reset output for microprocessors and a PWMcomparator input for synchronization in multichipconfigurations.

The L4964 is mounted in a 15-leadMultiwatt) plastic power package and requires very few external components.

Efficient operation at switching frequencies up to 120kHz allowsa reductionin the size and cost ofexternal filter components.

L4964 Maximum Ratings

Symbol	Parameter	Value	Unit
V_i	Input voltage	36	V
V_i- V₂	Input to output voltage difference	38	V
V₂	Negative output DC voltage	-1 -7	V
V₁₂	Negative output peak voltage at t = 0.1ms; f = 100KHz	10	V
V₅,V₇,V₉	Voltage at pin 3 and 6	Vi	V
V₁₀,V₆,V₁₃	Voltage at pin 2	1	V
V₁₄	Pin 3 sink current	20	mA
I₉	Pin 5 source current	50	mA
I₁₁	Power dissipation at Tcase 90°C	20	W
T_j, T_stg	Junction and storage temperature	-40 to 150	°C

L4964 Connection Diagram

L4969 General Description

The L4969 is an integrated circuit containing 3 independent Voltage Regulators and a standard fault tolerant low speed CAN line interface in multipower BCD3S process.

It integrates all main local functions for automotive body electronic applications connected to a CAN bus.

L4969 Maximum Ratings

Symbol	Parameter	Value	Unit
V_VSDC	DC operating supply voltage	-0.3 ... +28 C	VVSDC
V_VSTR	Transient operating supply voltage (T < 400ms)	-0.3 ... +40	V_VSTR
I_VOUT1...3	Output currents	Internally limited	I_VOUT1...3
T_STG	Storage temperature -	-65 ... +150	T_STG
T_J	Operating junction temperature	-40 ... +150	T_J
V_OUT1	Externally forced output voltage OUT1	-0.3 ... VS+0.3, max +6.3	V_OUT1
V_OUT2	Externally forced output voltage OUT2	-0.3 ... VS+0.3	V_OUT2
V_OUT3	Externally forced output voltage OUT3	Externally -0.3 ... VS+0.3, max +6.3	V_OUT3
V_inli	Input voltage Logic inputs: SIN, SCLK, NRES	-0.3 ... +7	V_inli
V_inliW	Input voltage WAKE	-0.3 ... VS+0.3	V_inliW
V_canh	Voltage CANH line 3	-28 ... +40	V_canh
V_canl	Voltage CANL line 3	-28 ... +40	V_canl

L4969 Connection Diagram
