LF442 General Description

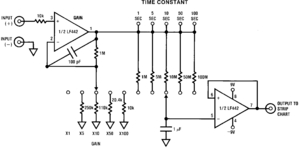

The LF442 dual low power operational amplifiers provide many of the same AC characteristics as the industry standard LM1458 while greatly improving the DC characteristics of the LM1458. The amplifiers have the same bandwidth, slew rate, and gain (10 k load) as the LM1458 and only draw one tenth the supply current of the LM1458. In addition the well matched high voltage JFET input devices of the LF442 reduce the input bias and offset currents by a factor of 10,000 over the LM1458. A combination of careful layout design and internal trimming guarantees very low input offset voltage and voltage drift. The LF442 also has a very low equivalent input noise voltage for a low power amplifier.
The LF442 is pin compatible with the LM1458 allowing an immediate 10 times reduction in power drain in many applications. The LF442 should be used where low power dissipation and good electrical characteristics are the major considerations.
Reliability Metrics
| Part Number | Process | EFR Reject | EFR Sample Size | PPM | LTA Rejects | LTA Device Hours | FITS | MTTF (Hours) |
| LF442ACN | BIFET | 0 | 12335 | 0 | 0 | 975000 | 4 | 276658912 |
| LF442CN | BIFET | 0 | 12335 | 0 | 0 | 975000 | 4 | 276658912 |
Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.
For more information on Reliability Metrics, please click here.
Design Tools
| Title | Size in Kbytes | Date | |||
| Amplifiers Selection Guide software for Windows | 8 Kbytes | 6-Mar-2007 | View |
If you have trouble printing or viewing PDF file(s), see Printing Problems. |
Application Notes
| Title | Size in Kbytes | Date | |
| AN-447: Protection Schemes for BI-FET Amplifiers and Switches | 76 Kbytes | 4-Nov-95 | Download |
If you have trouble printing or viewing PDF file(s), see Printing Problems. |
LF442 Maximum Ratings
| Supply Min | 6 Volt |
| Supply Max | 36, 44 Volt |
| Gain Bandwidth | 1 MHz |
| Slew Rate | 1 Volts/usec |
| Offset Voltage max, 25C | 1, 5 mV |
| Max Input Bias Current | 3, 20 nA |
| Input OutputType | Not Rail to Rail |
| Supply Current Per Channel | 0.2, 0.15 mA |
| PowerWise Rating 2 | 200, 150 uA/MHz |
| Channels | 2 Channels |
| Output Current | 6.8 mA |
| Shut down | No |
| Special Features | Undefined |
| Voltage Noise | 35 nV/root(Hz) |
| Temperature Max | 70, 125 deg C |
| Temperature Min | 0, -55 deg C |
| Function | Op Amp |
| View Using Catalog | |
LF442 Features
` 1/10 supply current of a LM1458: 400 A (max)
` Low input bias current: 50 pA (max)
` Low input offset voltage: 1 mV (max)
` Low input offset voltage drift: 10 V/ (max)
` High gain bandwidth: 1 MHz
` High slew rate: 1 V/s
` Low noise voltage for low power:
` Low input noise current:
` High input impedance: 1012
` High gain VO = ±10V, RL = 10k: 50k (min)
` Low input bias current: 50 pA (max)
` Low input offset voltage: 1 mV (max)
` Low input offset voltage drift: 10 V/ (max)
` High gain bandwidth: 1 MHz
` High slew rate: 1 V/s
` Low noise voltage for low power:
` Low input noise current:
` High input impedance: 1012
` High gain VO = ±10V, RL = 10k: 50k (min)
LF442 Connection Diagram
