LM1036, LM1036M, LM1036M/NOPB

Table of contents:
Info of LM1036
Info of LM1036M
Info of LM1036M/NOPB

LM1036, LM1036M, LM1036M/NOPB Selling Leads, Datasheet

MFG:National Semiconductor Category:Integrated Circuits (ICs) Package Cooled:DIP D/C:DIP

LM1036, LM1036M, LM1036M/NOPB Datasheet download

Five Points

Part Number: LM1036M/NOPB

Category: Integrated Circuits (ICs)

MFG: National Semiconductor

Package Cooled: DIP

D/C: DIP

Description: IC TONE/VOL/BAL DUAL DC 20-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LM1036 General Description

The LM1036 is a DC controlled tone (bass/treble), volume and balance circuit for stereo applications in car radio, TV and audio systems. An additional control input allows loudness compensation to be simply effected.

Four control inputs provide control of the bass, treble, balance and volume functions through application of DC voltages from a remote control system or, alternatively, from four potentiometers which may be biased from a zener regulated supply provided on the circuit.

Each tone response is defined by a single capacitor chosen to give the desired characteristic.

Reliability Metrics

Part Number	Process	EFR Reject	EFR Sample Size	PPM	LTA Rejects	LTA Device Hours	FITS	MTTF (Hours)
LM1036M	SLM	0	42786	0	0	3352500	2	951281028
LM1036MX	SLM	0	42786	0	0	3352500	2	951281028
LM1036N	SLM	0	42786	0	0	3352500	2	951281028

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.

Application Notes

Title	Size in Kbytes	Date
AN-390: Application Note 390 DNR Applications of the LM1894	304 Kbytes	25-Sep-02	Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

More Application Notes

Title	Size in Kbytes	Date
AN-4: Application Note 4 Monolithic Op Amp-The Universal Linear Component	258 Kbytes	1-Oct-02	Download
AN-286: Application Note 286 Applications of the LM392 Comparator Op Amp IC	135 Kbytes	2-Oct-02	Download
AN-32: FET Circuit Applications	217 Kbytes	4-Nov-95	Download
AN-29: Application Note 29 IC Op Amp Beats FETs on Input Current	444 Kbytes	1-Oct-02	Download
AN-110: Application Note 110 Fast IC Power Transistor with Thermal Protection	333 Kbytes	3-Oct-02	Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

LM1036 Maximum Ratings

Equivalent Input Noise	30 uV/root(Hz)
Supply Min	9 Volt
Supply Max	16 Volt
Special Features	2 Channels, DC operated tone/volume balance
SNR	80 dB
THD	0.06 %
Interface Type	DC control
Separation	75 dB
Temperature Min	0 deg C
Temperature Max	70 deg C
View Using Catalog

LM1036 Features

Wide supply voltage range, 9V to 16V
Large volume control range, 75 dB typical
Tone control, ±15 dB typical
Channel separation, 75 dB typical
Low distortion, 0.06% typical for an input level of 0.3 Vrms
High signal to noise, 80 dB typical for an input level of 0.3 Vrms
Few external components required

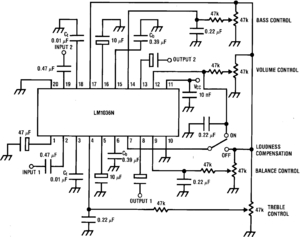

LM1036 Connection Diagram

LM1036M/NOPB Parameters

Technical/Catalog Information	LM1036M/NOPB
Vendor	National Semiconductor
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	20-SOIC (7.5mm Width)
Type	Tone Volume/Balance Circuit
Packaging	Tube
Applications	Automotive Systems, Players, TV
Drawing Number	14; M20B; ; 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LM1036M NOPB LM1036MNOPB LM1036M ND LM1036MND LM1036M
