LM4881 General Description
The LM4881 is a dual audio power amplifier capable of delivering 200mW of continuous average power into an 8 load with 0.1% THD+N from a 5V power supply.
Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components using surface mount packaging. Since the LM4881 does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems.
The LM4881 features an externally controlled, low power consumption shutdown mode which is virtually clickless and popless, as well as an internal thermal shutdown protection mechanism.
The unity-gain stable LM4881 can be configured by external gain-setting resistors.
Reliability Metrics
| Part Number | Process | EFR Reject | EFR Sample Size | PPM | LTA Rejects | LTA Device Hours | FITS | MTTF (Hours) |
| LM4881M | CS065 | 2 | 34108 | 59 | 0 | 3862000 | 1 | 1095853045 |
| LM4881MM | CS065 | 2 | 34108 | 59 | 0 | 3862000 | 1 | 1095853045 |
| LM4881MMX | CS065 | 2 | 34108 | 59 | 0 | 3862000 | 1 | 1095853045 |
| LM4881MX | CS065 | 2 | 34108 | 59 | 0 | 3862000 | 1 | 1095853045 |
| LM4881N | CS065 | 2 | 34108 | 59 | 0 | 3862000 | 1 | 1095853045 |
Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.
For more information on Reliability Metrics, please click here.
More Application Notes
| Title | Size in Kbytes | Date | |
| AN-1496: Application Note 1496 Noise, TDMA Noise, and Suppression Techniques | 85 Kbytes | 28-Apr-08 | Download |
| AN-1496 (Chinese): Application Note 1496 Noise, TDMA Noise, and Suppression Techniques | 407 Kbytes |
If you have trouble printing or viewing PDF file(s), see Printing Problems. |
LM4881 Maximum Ratings
| Power@ 8Ohms, 1% THD | 0.26 Watt |
| Power@ 16Ohms, 1% THD | 0.15 Watt |
| Power@ 32Ohms, 1% THD | 0.092 Watt |
| Power@ 8Ohms, 10% THD | 0.3 Watt |
| Power@ 16Ohms, 10% THD | 0.2 Watt |
| Power@ 32Ohms, 10% THD | 0.11 Watt |
| THD | 0.02 % |
| PSRR | 50 dB |
| SNR | 100 dB |
| Channels | 2 Channels |
| THD Conditions | Po=75mW @ R=32 ohms |
| PSRR Conditions | f=120 Hz |
| User Supply | 5 Volt |
| Shutdown Type | High |
| Supply Range | +2.7 - +5.5 V |
| Exposed DAP | No |
| Capless Headphone | No |
| Temperature Min | -40 deg C |
| Temperature Max | 85 deg C |
| View Using Catalog | |

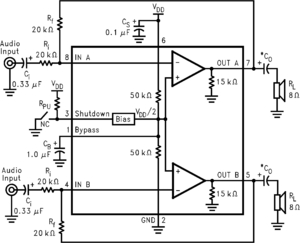

LM4881 Connection Diagram
