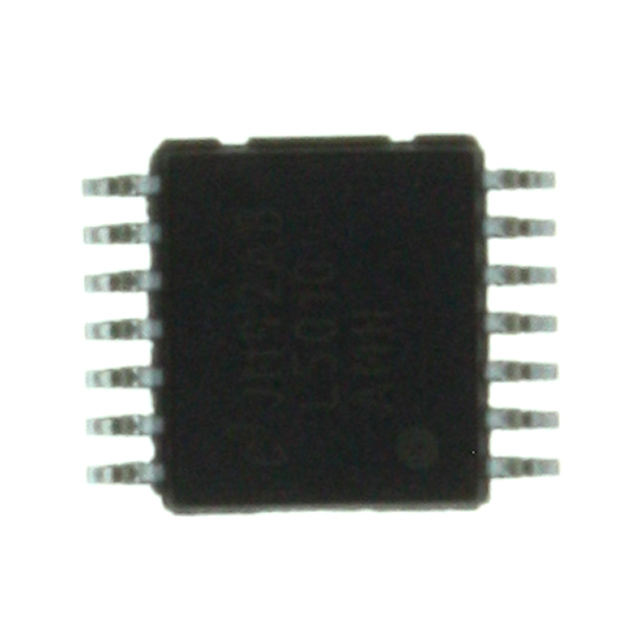

LM5010, LM5010AMH, LM5010AMH/NOPB Datasheet download
Category: Integrated Circuits (ICs)
MFG: National Semiconductor
Package Cooled: -
D/C: N/A
Description: IC REG BUCK 1A 6V-75V 14-TSSOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: LM5010
File Size: 464672 KB
Manufacturer: NSC [National Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LM50
File Size: 180490 KB
Manufacturer: NSC [National Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LM50
File Size: 180490 KB
Manufacturer: NSC [National Semiconductor]
Download : Click here to Download
The LM5010 Step Down Switching Regulator features all the functions needed to implement a low cost, efficient, buck bias regulator capable of supplying in excess of 1A load current. This high voltage regulator contains an N-Channel Buck Switch, and is available in thermally enhanced LLP-10 and TSSOP-14EP packages. The hysteretic regulation scheme requires no loop compensation, results in fast load transient response, and simplifies circuit implementation.
The operating frequency remains constant with line and load variations due to the inverse relationship between the input voltage and the on-time. The valley current limit detection set at 1.25A. Additional features include: VCC under-voltage lockout, thermal shutdown, gate drive under-voltage lockout, and maximum duty cycle limiter.
VIN to GND .............................................................76V
BST to GND .............................................................90V
SW to GND (Steady State) ...................................-1.5V
BST to VCC ..............................................................76V
BST to SW ...............................................................14V
VCC to GND .............................................................14V
SGND to RTN ...........................................-0.3V to +0.3V
SS to RTN ....................................................-0.3V to 4V
VIN to SW ...............................................................76V
Current Out of ISEN .........................................See Text
All Other Inputs to GND .................................-0.3 to 7V
ESD Rating (Note 2)
Human Body Model .................................................2kV
Storage Temperature Range ...........-55°C to +150°C
Lead Temperature (Soldering 4 sec) (Note 4) ...260°C
·Input Voltage Range: 8V to 75V
·Valley Current Limit At 1.25A
·Switching Frequency Can Exceed 1 MHz
·Integrated N-Channel Buck Switch
· Integrated Startup Regulator
·No Loop Compensation Required
·Ultra-Fast Transient Response
· Operating Frequency Remains Constant With Load and Line Variations
· Maximum Duty Cycle Limited During Startup
·Adjustable Output Voltage
· Precision 2.5V Feedback Reference
·Thermal shutdown
·High Efficiency Point-Of-Load (POL) Regulator
·Non-Isolated Telecommunications Buck Regulator
·Secondary High Voltage Post Regulator
· Automotive Systems
| Technical/Catalog Information | LM5010AMH/NOPB |
| Vendor | National Semiconductor |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 1 |
| Voltage - Input | 6 ~ 75 V |
| Voltage - Output | 2.5 ~ 70 V |
| Current - Output | 1A |
| Power - Output | - |
| Package / Case | 14-TSSOP Exposed Pad, 14-eTSSOP 14-HTSSOP |
| Packaging | Tube |
| Internal Switch(s) | Yes |
| Synchronous | No |
| Rds (On) | 350 mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Frequency - Switching | 1MHz |
| Drawing Number | 14; MXA14A; ; 14 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LM5010AMH NOPB LM5010AMHNOPB LM5010AMH ND LM5010AMHND LM5010AMH |
