MFG:Panasonic - SSG (VA) Category:Optoelectronics Package Cooled:0805LED D/C:09+
LNJ310C6L0S0(LNJ310C6LRA0S0), LNJ310M6URA, LNJ311G8TRU Datasheet download
Category: Optoelectronics
MFG: Panasonic - SSG (VA)
Package Cooled: 0805LED
D/C: 09+
Description: LED GREEN THRU PCB TYPE SMD
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: LNJ010C6BRAV
File Size: 30200 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LNJ310M6URA
File Size: 35148 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LNJ311G8TRU
File Size: 111807 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download

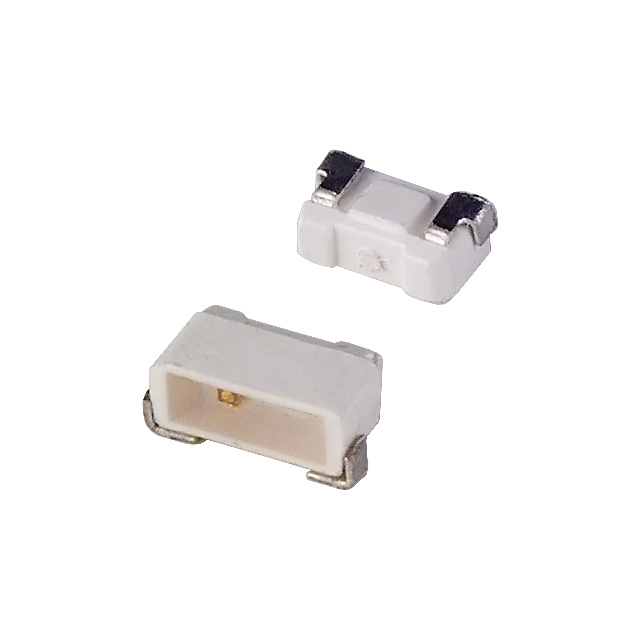

| Technical/Catalog Information | LNJ310M6URA |
| Vendor | Panasonic - SSG (VA) |
| Category | Optoelectronics |
| Color | Green |
| Lens Style/Size | Rectangle, 1.8mm x 0.65mm |
| Millicandela Rating | 8mcd |
| Voltage - Forward (Vf) Typ | 2.03V |
| Wavelength - Dominant | 565nm |
| Wavelength - Peak | 565nm |
| Current - Test | 10mA |
| Viewing Angle | 110° |
| Lens Type | Clear |
| Luminous Flux | 21 mlm |
| Package / Case | 2.2mm x 1.2mm x 1mm |
| Mounting Type | Surface Mount, Right Angle |
| Packaging | Cut Tape (CT) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LNJ310M6URA LNJ310M6URA P520CT ND P520CTND P520CT |
|
Lighting Color |
PD(mW) |
IF(mA) |
IFP(mA)* |
VR(V) |
Topr() |
Tstg() |
|
Red |
60 |
20 |
60 |
4 |
-25 ~ +80 |
-30 ~ +85 |
|
Red |
60 |
20 |
60 |
3 |
-25 ~ +80 |
-30 ~ +85 |
|
Green |
60 |
20 |
60 |
4 |
-25 ~ +80 |
-30 ~ +85 |
|
Amber |
60 |
20 |
60 |
4 |
-25 ~ +80 |
-30 ~ +85 |
|
Orange |
60 |
20 |
60 |
3 |
-25 ~ +80 |
-30 ~ +85 |
| Technical/Catalog Information | LNJ311G8TRU |
| Vendor | Panasonic - SSG (VA) |
| Category | Optoelectronics |
| Color | Green |
| Lens Style/Size | Round, 1.7mm |
| Millicandela Rating | 5.5mcd |
| Voltage - Forward (Vf) Typ | 2.03V |
| Wavelength - Dominant | 565nm |
| Wavelength - Peak | 565nm |
| Current - Test | 10mA |
| Viewing Angle | 170° |
| Lens Type | Diffused, Green Tinted |
| Luminous Flux | 32 mlm |
| Package / Case | 1206 (3216 metric) |
| Mounting Type | Surface Mount, Bottom Entry |
| Packaging | Cut Tape (CT) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LNJ311G8TRU LNJ311G8TRU P540CT ND P540CTND P540CT |
|
Lighting Color |
PD(mW) |
IF(mA) |
IFP(mA)* |
VR(V) |
Topr() |
Tstg() |
|
Red |
60 |
20 |
100 |
3 |
-30 ~ +85 |
-40 ~ +100 |
|
Green |
60 |
20 |
100 |
4 |
-30 ~ +85 |
-40 ~ +100 |
|
Amber |
60 |
20 |
100 |
4 |
-30 ~ +85 |
-40 ~ +100 |
