LNJ416Q8YRA, LNJ416Q8YRU, LNJ418C84RA

Table of contents:
Info of LNJ416Q8YRA
Info of LNJ416Q8YRU
Info of LNJ418C84RA

LNJ416Q8YRA, LNJ416Q8YRU, LNJ418C84RA Selling Leads, Datasheet

MFG:Panasonic - SSG (VA) Category:Optoelectronics Package Cooled:smd

LNJ416Q8YRA, LNJ416Q8YRU, LNJ418C84RA Datasheet download

Five Points

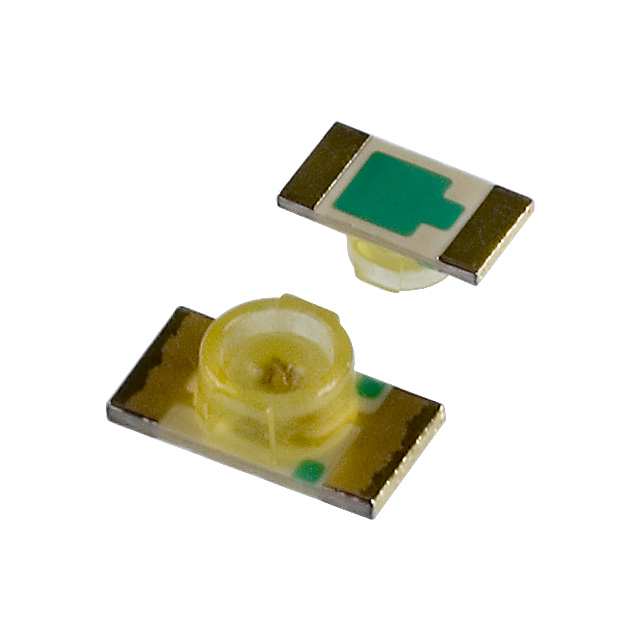

Part Number: LNJ416Q8YRA

Category: Optoelectronics

MFG: Panasonic - SSG (VA)

Package Cooled: smd

D/C:

Description: LED AMBER (UP) W/LENS 1206

Price Break

3000
12000
24000
48000

Unit Price

.12800
.11700
.10900
.09300

Extended Price

384.00
1404.00
2616.00
4464.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LNJ416Q8YRA Parameters

Technical/Catalog Information	LNJ416Q8YRA
Vendor	Panasonic - SSG
Category	Optoelectronics
Color	Amber
Lens Style/Size	Round, 1.7mm
Millicandela Rating	3.3mcd
Voltage - Forward (Vf) Typ	2.0V
Wavelength - Dominant	590nm
Wavelength - Peak	590nm
Current - Test	10mA
Viewing Angle	105°
Lens Type	Diffused, Yellow Tinted
Luminous Flux	8 mlm
Package / Case	1206 (3216 metric)
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNJ416Q8YRA LNJ416Q8YRA P11514TR ND P11514TRND P11514TR

LNJ416Q8YRA Maximum Ratings

Lighting Color	P_D(mW)	I_F(mA)	I_FP(mA)*	V_R(V)	T_opr()	T_stg()
Red	60	20	100	3	-30 ~ +85	-40 ~ +100
Green	60	20	100	4	-30 ~ +85	-40 ~ +100
Amber	60	20	100	4	-30 ~ +85	-40 ~ +100

IFP,duty 10%,Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec

LNJ416Q8YRU Parameters

Technical/Catalog Information	LNJ416Q8YRU
Vendor	Panasonic - SSG (VA)
Category	Optoelectronics
Color	Amber
Lens Style/Size	Round, 1.7mm
Millicandela Rating	3.3mcd
Voltage - Forward (Vf) Typ	2.0V
Wavelength - Dominant	590nm
Wavelength - Peak	590nm
Current - Test	10mA
Viewing Angle	105°
Lens Type	Clear, Yellow Tinted
Luminous Flux	8 mlm
Package / Case	1206 (3216 metric)
Mounting Type	Surface Mount
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNJ416Q8YRU LNJ416Q8YRU P11546DKR ND P11546DKRND P11546DKR

LNJ418C84RA Parameters

Technical/Catalog Information	LNJ418C84RA
Vendor	Panasonic - SSG (VA)
Category	Optoelectronics
Color	Amber
Lens Style/Size	Round, 1.7mm
Millicandela Rating	85mcd
Voltage - Forward (Vf) Typ	2.0V
Wavelength - Dominant	595nm
Wavelength - Peak	595nm
Current - Test	10mA
Viewing Angle	30°
Lens Type	Clear
Luminous Flux	18 mlm
Package / Case	1206 (3216 metric)
Mounting Type	Surface Mount
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNJ418C84RA LNJ418C84RA P11572DKR ND P11572DKRND P11572DKR
