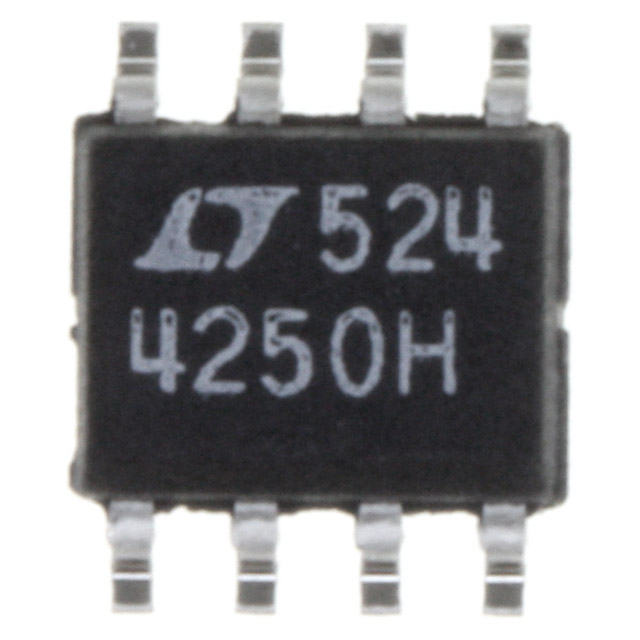

MFG:Linear Technology Category:Integrated Circuits (ICs) Package Cooled:SOP-8 D/C:02+
LT4250H, LT4250HCS8, LT4250HCS8TR Datasheet download
Category: Integrated Circuits (ICs)
MFG: Linear Technology
Package Cooled: SOP-8
D/C: 02+
Description: IC CONTRLR HOTSWAP NEG 48V 8SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: LT4250H
File Size: 236251 KB
Manufacturer: LINER [Linear Technology]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LT4250HCS8
File Size: 236251 KB
Manufacturer: LINER [Linear Technology]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LT4000-S
File Size: 80993 KB
Manufacturer: LEM [LEM]
Download : Click here to Download
The LT®4250L/LT4250H are 8-pin, negative 48V Hot SwapTM controllers that allow a board to be safely inserted and removed from a live backplane. Inrush current is limited to a programmable value by controlling the gate voltage of an external N-channel pass transistor. The pass transistor is turned off if the input voltage is less than the programmable undervoltage threshold or greater than the overvoltage threshold. A programmable current limit protects the system against shorts. After a 500ms timeout the current limit activates the electronic circuit breaker. The PWRGD (LT4250L) or PWRGD (LT4250H) signal can be used to directly enable a power module. The LT4250L is designed for modules with a low enable input and the LT4250H for modules with a high enable input.
The LT4250L/LT4250H are available in 8-pin PDIP and SO packages.
Supply Voltage (VDD VEE) ................ . 0.3V to 100V
PWRGD, PWRGD Pins ........................... 0.3V to 100V
SENSE, GATE Pins .................................... 0.3V to 20V
UV, OV Pins ..............................................0.3V to 60V
DRAIN Pin ................................................. 2V to 100V
Maximum Junction Temperature .........................125°C
Operating Temperature Range
LT4250LC/LT4250HC ............................. 0°C to 70°C
LT4250LI/LT4250HI .......................... 40°C to 85°C
Storage Temperature Range ............ 65°C to 150°C
Lead Temperature (Soldering, 10 sec).................300°C
| Technical/Catalog Information | LT4250HCS8 |
| Vendor | Linear Technology |
| Category | Integrated Circuits (ICs) |
| Applications | General Purpose |
| Type | Hot-Swap Controller |
| Package / Case | 8-SOIC (3.9mm Width) |
| Packaging | Tube |
| Current Limit | - |
| Internal Switch(s) | No |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | -20 V ~ -80 V |
| Drawing Number | 161; 05-08-1610; S; 8 |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | LT4250HCS8 LT4250HCS8 |
