LT6231IS8, LT6231IS8PBF, LT6232

LT6231IS8, LT6231IS8PBF, LT6232 Selling Leads, Datasheet

MFG:Linear Technology   Category:Integrated Circuits (ICs)  Package Cooled:8/SO  D/C:09+

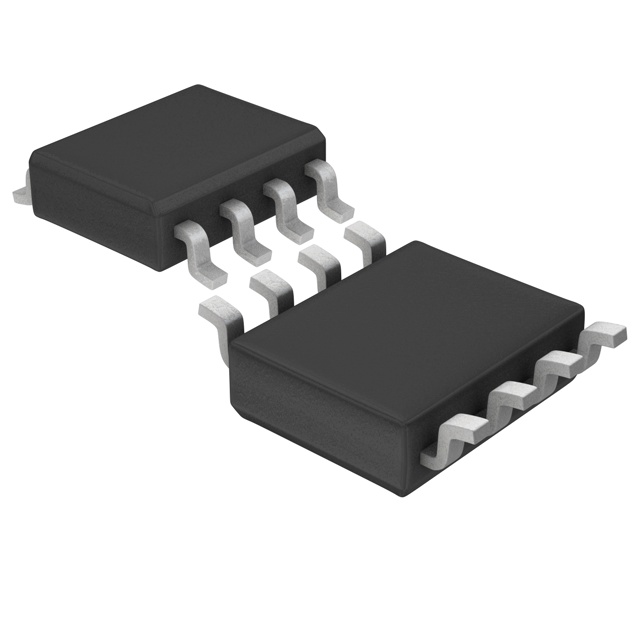

LT6231IS8 Picture

LT6231IS8, LT6231IS8PBF, LT6232 Datasheet download

Five Points

Part Number: LT6231IS8

Category: Integrated Circuits (ICs)

MFG: Linear Technology

Package Cooled: 8/SO

D/C: 09+

Description: IC OP AMP DUAL 215MHZ R-R 8-SOIC






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

LT6231IS8 Suppliers

More LT6231IS8 Suppliers

Select All

  • LT6001CDD

  • Vendor: Linear Pack: DFN Qty: 507  Adddate: 2019-09-16
  • Inquire Now
  • Boost Technology Limited   China
    Contact: Ms.jessiehoo   MSN:xiao.x.88@hotmail.com
    Tel: 86-755-82517506
    Fax: 86-755-82516506
    (0)

About LT6231IS8

PDF/DataSheet Download

Datasheet: LT6231IS8

File Size: 665580 KB

Manufacturer: LINER [Linear Technology]

Download : Click here to Download

Related PDF Download

Related Part Number

LT6231IS8PBF Suppliers

More LT6231IS8PBF Suppliers

Select All

  • LT6001CDD

  • Vendor: Linear Pack: DFN Qty: 507  Adddate: 2019-09-16
  • Inquire Now
  • Boost Technology Limited   China
    Contact: Ms.jessiehoo   MSN:xiao.x.88@hotmail.com
    Tel: 86-755-82517506
    Fax: 86-755-82516506
    (0)

About LT6001

PDF/DataSheet Download

Datasheet: LT6001

File Size: 274432 KB

Manufacturer: Linear

Download : Click here to Download

Related PDF Download

Related Part Number

LT6232 Suppliers

More LT6232 Suppliers

Select All

  • LT6232CGN

  • Vendor: Linear Pack: SOP Qty: 34  Adddate: 2019-09-16
  • Inquire Now
  • Boost Technology Limited   China
    Contact: Ms.jessiehoo   MSN:xiao.x.88@hotmail.com
    Tel: 86-755-82517506
    Fax: 86-755-82516506
    (0)
  • LT6001CDD

  • Vendor: Linear Pack: DFN Qty: 507  Adddate: 2019-09-16
  • Inquire Now
  • Boost Technology Limited   China
    Contact: Ms.jessiehoo   MSN:xiao.x.88@hotmail.com
    Tel: 86-755-82517506
    Fax: 86-755-82516506
    (0)

About LT6232

PDF/DataSheet Download

Datasheet: LT6232

File Size: 665580 KB

Manufacturer: LINER [Linear Technology]

Download : Click here to Download

Related PDF Download

Related Part Number

LT6231IS8 Parameters

Technical/Catalog InformationLT6231IS8
VendorLinear Technology
CategoryIntegrated Circuits (ICs)
PackagingTube
Amplifier TypeGeneral Purpose
Number of Circuits2 - Dual
Package / Case8-SOIC (3.9mm Width)
Slew Rate70 V/s
Gain Bandwidth Product215MHz
Current - Supply3.3mA
Current - Output / Channel30mA
Voltage - Supply, Single/Dual (±)3 V ~ 12.6 V, ±1.5 V ~ 6.3 V
Output TypeRail-to-Rail
-3db Bandwidth-
Current - Input Bias5A
Operating Temperature-40°C ~ 85°C
Voltage - Input Offset50V
Drawing Number161; 05-08-1610; S, S8; 8, 14, 16
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names LT6231IS8
LT6231IS8

LT6232 General Description

The LT 6230/LT6231/LT6232 are single/dual/quad lownoise, rail-to-rail output unity gain stable op amps thatfeature 1.1nV/Hz noise voltage and draw only 3.5mA ofsupply current per amplifier. These amplifiers combinevery low noise and supply current with a 215MHz gainbandwidth product, a 70V/µs slew rate and are optimizedfor low supply voltage signal conditioning systems. TheLT6230-10 is a single amplifier optimized for higher gainapplications resulting in higher gain bandwidth and slewrate. The LT6230 and LT6230-10 include an enable pinthat can be used to reduce the supply current to less than10µA.

The amplifier family has an output that swings within50mV of either supply rail to maximize the signal dynamicrange in low supply applications and is specified on 3.3V,5V and ±5V supplies. The en • ISUPPLY product of 1.9 peramplifier is among the most noise efficient of any op amp.

The LT6230/LT6230-10 is available in the 6-lead SOT-23package and the LT6231 dual is available in the 8-pin SOpackage with standard pinouts. For compact layouts, thedual is also available in a tiny dual fine pitch leadlesspackage (DFN). The LT6232 is available in the 16-pinSSOP package.

LT6232 Maximum Ratings

Total Supply Voltage (V+ to V) ............................. 12.6V
Input Current (Note 2) ........................................ ±40mA
Output Short-Circuit Duration (Note 3) ............. Indefinite
Operating Temperature Range (Note 4) 40°C to 85°C
Specified Temperature Range (Note 5) ..40°C to 85°C
Junction Temperature............................................ 150°C
Junction Temperature (DD Package) ....................  125°C
Storage Temperature Range ................65°C to 150°C
Storage Temperature Range
(DD Package) ..................................... 65°C to 125°C
Lead Temperature (Soldering, 10 sec) .................. 300°C

LT6232 Features

Low Noise Voltage: 1.1nV/Hz
Low Supply Current: 3.5mA/Amp Max
Low Offset Voltage: 350µV Max
Gain Bandwidth Product:LT6230: 215MHz; AV 1LT6230-10: 1450MHz; AV 10
Wide Supply Range: 3V to 12.6V
Output Swings Rail-to-Rail
Common Mode Rejection Ratio 115dB Typ
Output Current: 30mA
Operating Temperature Range 40°C to 85°C
LT6230 Shutdown to 10µA Maximum
LT6230/LT6230-10 in SOT-23 Package
Dual LT6231 in 8-Pin SO and Tiny DFN Packages
LT6232 in 16-Pin SSOP Package

LT6232 Typical Application

Ultrasound Amplifiers
Low Noise, Low Power Signal Processing
Active Filters
Driving A/D Converters
Rail-to-Rail Buffer Amplifiers

LT6232 Connection Diagram
