MFG:Linear Technology Category:Integrated Circuits (ICs) Package Cooled:SOP D/C:0227+

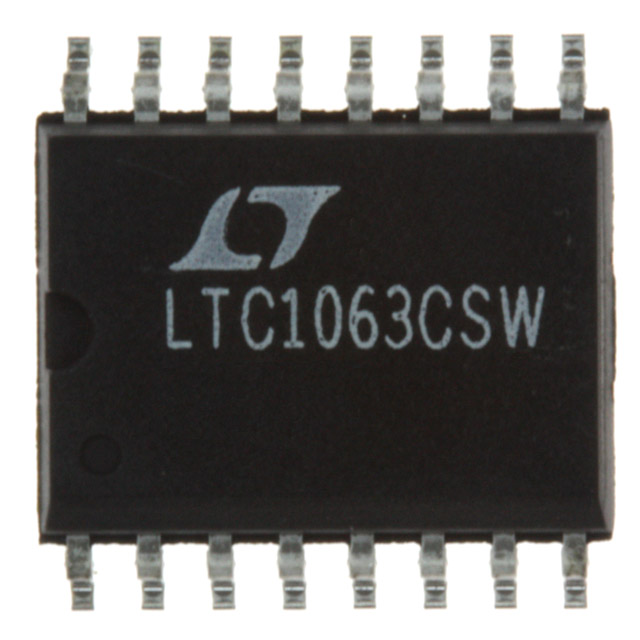

LTC1063CSW, LTC1063MJ8/883, LTC1064 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Linear Technology
Package Cooled: SOP
D/C: 0227+
Description: IC FILTR 5TH ORDER LOWPASS16SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: LTC1063CSW
File Size: 149067 KB
Manufacturer: Linear
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LTC0157
File Size: 163926 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LTC1064
File Size: 398581 KB
Manufacturer: LINER [Linear Technology]
Download : Click here to Download
| Technical/Catalog Information | LTC1063CSW |
| Vendor | Linear Technology |
| Category | Integrated Circuits (ICs) |
| Package / Case | 16-SOIC (7.5mm Width) |
| Filter Type | Butterworth, Lowpass Switched Capacitor |
| Voltage - Supply | ±2.375 V ~ 8 V |
| Number of Filters | 1 |
| Max-Order | 5th |
| Frequency - Cutoff or Center | 50kHz |
| Packaging | Tube |
| Drawing Number | 161; 05-08-1620; SW; 16 |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | LTC1063CSW LTC1063CSW |
The LTC®1064 consists of four high speed, low noise switched-capacitor filter building blocks. Each filter building
block, together with an external clock and three to five resistors can provide various 2nd order functions like
lowpass, highpass, bandpass and notch. The center frequency of each 2nd order function can be tuned with an external clock, or a clock and resistor ratio. For Q £ 5, the center frequency range is from 0.1Hz to 100kHz. For Q 3, the center frequency range can be extended to 140kHz. Up to 8th order filters can be realized by cascading all four 2nd order sections. Any classical filter realization (such as Butterworth, Cauer, Bessel and Chebyshev) can be formed.
A customized monolithic version of the LTC1064 including internal thin film resistors can be obtained for high
volume applications. Consult LTC Marketing for details.
The LTC1064 is manufactured using Linear Technology's enhanced LTCMOSTM silicon gate process.
Total Supply Voltage (V + to V ) ............................. 16V
Power Dissipation............................................. 500mW
Operating Temperature Range
LTC1064AC/LTC1064C.................... 40°C to 85°C
LTC1064AM/LTC1064M ................ 55°C to 125°C
Storage Temperature Range ................ 65°C to 150°C
Lead Temperature (Soldering, 10 sec)................. 300°C
