LTC1334CS, LTC1334CSW, LTC1334IG

Table of contents:
Info of LTC1334CS
Info of LTC1334CSW
Info of LTC1334IG

LTC1334CS, LTC1334CSW, LTC1334IG Selling Leads, Datasheet

MFG:Linear Technology Category:Integrated Circuits (ICs) Package Cooled:SOP D/C:N/A

LTC1334CS, LTC1334CSW, LTC1334IG Datasheet download

Five Points

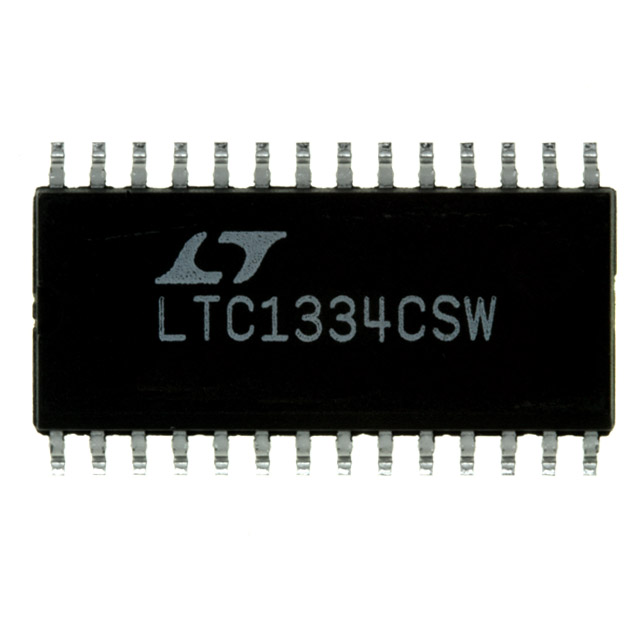

Part Number: LTC1334CSW

Category: Integrated Circuits (ICs)

MFG: Linear Technology

Package Cooled: SOP

D/C: N/A

Description: IC TXRX CMOS MULTIPROTOCL 28SSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LTC1334CSW Parameters

Technical/Catalog Information	LTC1334CSW
Vendor	Linear Technology
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	3/3
Type	Transceiver
Voltage - Supply	5V
Package / Case	28-SOIC (7.5mm Width)
Packaging	Tube
Protocol	RS232, RS485
Drawing Number	161; 05-08-1620; SW; 16
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LTC1334CSW LTC1334CSW

LTC1334IG Parameters

Technical/Catalog Information	LTC1334IG
Vendor	Linear Technology
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	3/3
Type	Transceiver
Voltage - Supply	5V
Package / Case	28-SSOP
Packaging	Tube
Protocol	RS232, RS485
Drawing Number	161; 05-08-1640; G; 16
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LTC1334IG LTC1334IG

LTC1334IG General Description

The LTC®1334 is a low power CMOS bidirectional transceiver featuring two reconfigurable interface ports. It can be configured as two RS485 differential ports, as two dual RS232 single-ended ports or as one RS485 differential port and one dual RS232 single-ended port. An onboard charge pump requires four 0.1mF capacitors to generate boosted positive and negative supplies, allowing the RS232 drivers to meet the RS232 ±5V output swing requirement with only a single 5V supply. A shutdown mode reduces the ICC supply current to 10mA.

The RS232 transceivers are in full compliance with RS232 specifications. The RS485 transceivers are in full compliance with RS485 and RS422 specifications. All interface drivers feature short-circuit and thermal shutdown protection. An enable pin allows RS485 driver outputs to forced into high impedance, which is maintained even when the outputs are forced beyond supply rails or power is off. Both driver outputs and receiver inputs feature ±10kV ESD protection. A loopback mode allows the driver outputs to be connected back to the receiver inputs for diagnostic self-test.

LTC1334IG Maximum Ratings

Supply Voltage (VCC) ......................................... 6.5V
Input Voltage
Drivers ...................................  0.3V to (VCC + 0.3V)
Receivers .............................................  25V to 25V
ON/OFF, LB, SEL1, SEL2 ........  0.3V to (VCC + 0.3V)
Output Voltage
Drivers .................................................  18V to 18V
Receivers ...............................  0.3V to (VCC + 0.3V)
Short-Circuit Duration
Output ........................................................ Indefinite
VDD, VEE, C1+, C1, C2+, C2 ....................... 30 sec
Operating Temperature Range
Commercial ........................................... 0°C to 70°C
Industrial ............................................ 40°C to 85°C
Storage Temperature Range ............. 65°C to 150°C
Lead Temperature (Soldering, 10 sec)................ 300°C

LTC1334IG Features

Four RS232 Transceivers or Two RS485 Transceivers on One Chip
Operates from a Single 5V Supply
Withstands Repeated ±10kV ESD Pulses
Uses Small Charge Pump Capacitors: 0.1mF
Low Supply Current: 8mA Typical
10mA Supply Current in Shutdown
Self-Testing Capability in Loopback Mode
Power-Up/Down Glitch-Free Outputs
Driver Maintains High Impedance in Three-State, Shutdown or with Power Off
Thermal Shutdown Protection
Receiver Inputs Can Withstand ±25V

LTC1334IG Typical Application

Low Power RS485/RS422/RS232/EIA562 Interface
Software-Selectable Multiprotocol Interface Port
Cable Repeaters
Level Translators

LTC1334IG Connection Diagram
