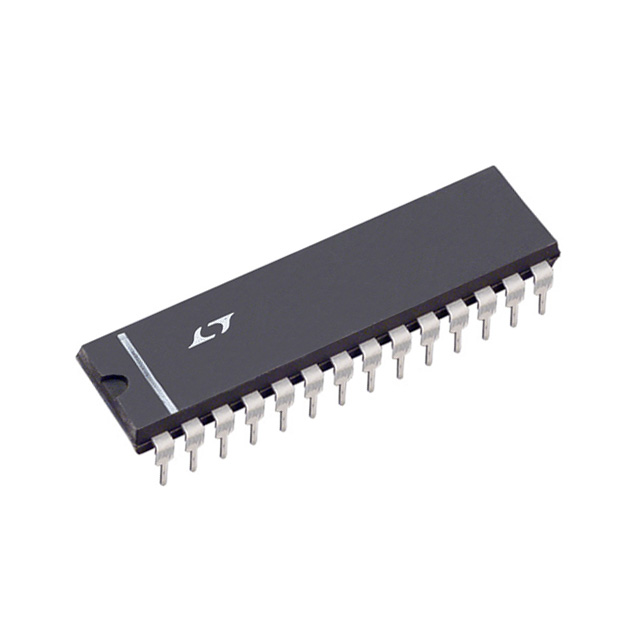

Part Number: LTC1418AIN

Category: Integrated Circuits (ICs)

MFG: Linear Technology

Package Cooled: SSOP

D/C: 0538+/0546

Description: IC A/D CONV 14BIT SRL&PAR 28SSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LTC1418AIN Parameters

Technical/Catalog Information	LTC1418AIN
Vendor	Linear Technology
Category	Integrated Circuits (ICs)
Number of Bits	14
Package / Case	28-DIP (300 mil)
Data Interface	Serial/Parallel
Packaging	Tube
Sampling Rate (Per Second)	200k
Operating Temperature	-40°C ~ 85°C
Voltage Supply Source	Dual ±
Number of Inputs and Type	2 Single-Ended, Unipolar; 2 Single-Ended, Bipolar; 1 Differential, Unipolar; 1 Differential, Bipolar
Number of Converters	1
Power Dissipation (Max)	21.5mW Unipolar; 31.5mW Bipolar
Drawing Number	161; 05-08-1510; N; 8
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LTC1418AIN LTC1418AIN

LTC1418AIN General Description

The LTC^®1418 is a low power, 200ksps, 14-bit A/D converter. Data output is selectable for 14-bit parallel or serial format. This versatile device can operate from a single 5V or ±5V supply. An onboard high performance sample-and-hold, a precision reference and internal timing minimize external circuitry requirements. The low 15mW power dissipation is made even more attractive with two user selectable power shutdown modes.

The LTC1418 converts 0V to 4.096V unipolar inputs from a single 5V supply and ±2.048V bipolar inputs from ±5V supplies. DC specs include ±1.25LSB INL, ±1LSB DNL and no missing codes over temperature. Outstanding AC performance includes 82dB S/(N + D) and 94dB THD at the Nyquist input frequency of 100kHz.

The flexible output format allows either parallel or serial I/O. The SPI/MICROWIRETM compatible serial I/O port can operate as either master or slave and can support clock frequencies from DC to 10MHz. A separate convert start input and a data ready signal (BUSY ) allow easy control of conversion start and data transfer.

LTC1418AIN Maximum Ratings

Supply Voltage (V_DD) ................................................. 6V
Negative Supply Voltage (V_SS)
    Bipolar Operation Only ........................... 6V to GND
Total Supply Voltage (V_DD to V_SS)
    Bipolar Operation Only ....................................... ..12V
Analog Input Voltage (Note 3)
    Unipolar Operation .................. 0.3V to (V_DD + 0.3V)
    Bipolar Operation........... (VSS 0.3V) to (V_DD + 0.3V)
Digital Input Voltage (Note 4)
    Unipolar Operation ................................0.3V to 10V
    Bipolar Operation.........................(VSS 0.3V) to 10V
Digital Output Voltage
Unipolar Operation .................. ....0.3V to (VDD + 0.3V)
Bipolar Operation........... ....(VSS 0.3V) to (VDD + 0.3V)
Power Dissipation................................................ 500mW
Operation Temperature Range
    LTC1418C................................................ 0°C to 70°C
    LTC1418I............................................ 40°C to 85°C
Storage Temperature Range ................65°C to 150°C
Lead Temperature (Soldering, 10 sec)................... 300°C

LTC1418AIN Features

Single Supply 5V or ±5V Operation
Sample Rate: 200ksps
±1.25LSB INL and ±1LSB DNL Max
Power Dissipation: 15mW (Typ)
Parallel or Serial Data Output
No Missing Codes Over Temperature
Power Shutdown: Nap and Sleep
External or Internal Reference
Differential High Impedance Analog Input
Input Range: 0V to 4.096V or ±2.048V
81.5dB S/(N + D) and 94dB THD at Nyquist
28-Pin Narrow PDIP and SSOP Packages

LTC1418AIN Typical Application

The LTC1418 uses a successive approximation algorithm and an internal sample-and-hold circuit to convert an analog signal to a 14-bit parallel or serial output. The ADC is complete with a precision reference and an internal clock. The control logic provides easy interface to microprocessors and DSPs (please refer to Digital Interface section for the data format).

Conversion start is controlled by the CS and CONVST inputs. At the start of the conversion the successive approximation register (SAR) is reset. Once a conversion cycle has begun it cannot be restarted.

During the conversion, the internal differential 14-bit capacitive DAC output is sequenced by the SAR from the most significant bit (MSB) to the least significant bit (LSB).

Referring to Figure 1, the A_IN⁺ and A_IN inputs are connected to the sample-and-hold capacitors (CSAMPLE) during the acquire phase and the comparator offset is nulled by the zeroing switches. In this acquire phase, a minimum delay of 1ms will provide enough time for the sample-andhold capacitors to acquire the analog signal. During the convert phase the comparator zeroing switches open, putting the comparator into compare mode. The input switches the CSAMPLE capacitors to ground, transferring the differential analog input charge onto the summing junction. This input charge is successively compared with the binary weighted charges supplied by the differential capacitive DAC. Bit decisions are made by the high speed comparator. At the end of a conversion, the differential DAC output balances the A_IN + and A_IN input charges.

The SAR contents (a 14-bit data word) which represent the difference of A_IN ⁺ and A_IN are loaded into the 14-bit output latches.

LTC1418AIN Connection Diagram

LTC1418CG Parameters

Technical/Catalog Information	LTC1418CG
Vendor	Linear Technology
Category	Integrated Circuits (ICs)
Number of Bits	14
Package / Case	28-SSOP
Data Interface	Serial/Parallel
Packaging	Tube
Sampling Rate (Per Second)	200k
Operating Temperature	0°C ~ 70°C
Voltage Supply Source	Dual ±
Number of Inputs and Type	2 Single-Ended, Unipolar; 2 Single-Ended, Bipolar; 1 Differential, Unipolar; 1 Differential, Bipolar
Number of Converters	1
Power Dissipation (Max)	21.5mW Unipolar; 31.5mW Bipolar
Drawing Number	161; 05-08-1640; G; 16
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LTC1418CG LTC1418CG

LTC1418CG General Description

LTC1418CG Maximum Ratings

LTC1418CG Features

LTC1418CG Typical Application

LTC1418CG Connection Diagram
