LTC4211IMS8, LTC4211IS8, LTC4212-2CMS Datasheet download
Category: Integrated Circuits (ICs)
MFG: Linear Technology
Package Cooled: SMD
D/C: 05+
Description: IC CTRLR HOTSWAP CURR CTRL 8SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: LTC4211IMS8
File Size: 378520 KB
Manufacturer: LINER [Linear Technology]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LTC4211IS8
File Size: 378520 KB
Manufacturer: LINER [Linear Technology]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LTC0157
File Size: 163926 KB
Manufacturer: ETC [ETC]
Download : Click here to Download

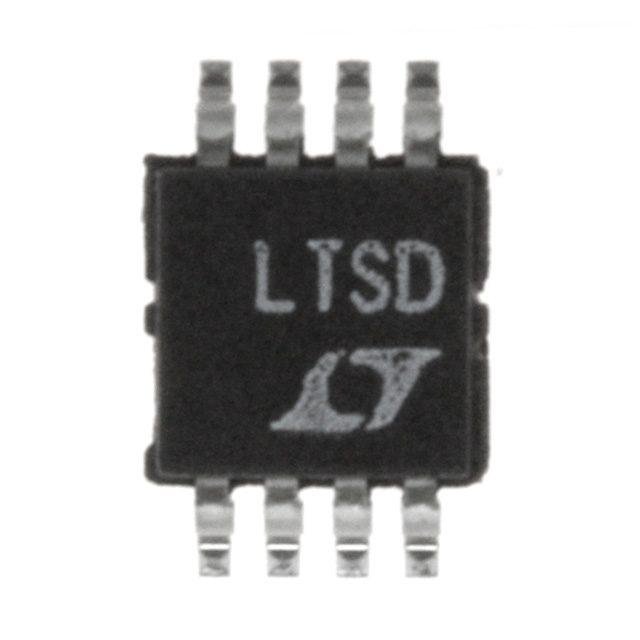

| Technical/Catalog Information | LTC4211IMS8 |
| Vendor | Linear Technology |
| Category | Integrated Circuits (ICs) |
| Applications | General Purpose |
| Type | Hot-Swap Controller |
| Package / Case | 8-MSOP, Micro8?, 8-uMAX, 8-uSOP, |
| Packaging | Tube |
| Current Limit | - |
| Internal Switch(s) | No |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.5 V ~ 16.5 V |
| Drawing Number | 161; 05-08-1660; MS8; 8 |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | LTC4211IMS8 LTC4211IMS8 |
The LTC®4211 is a Hot SwapTM controller that allows a board to be safely inserted and removed from a live backplane. An internal high side switch driver controls the gate of an external N-channel MOSFET for supply voltages ranging from 2.5V to 16.5V. The LTC4211 provides softstart and inrush current limiting during the start-up period which has a programmable duration.
Two on-chip current limit comparators provide dual level overcurrent circuit breaker protection. The slow comparator trips at VCC 50mV and activates in 20ms (or programmed by an external filter capacitor, MS only). The fast comparator trips at VCC 150mV and typically responds in 300ns.
The FB pin monitors the output supply voltage and signals the RESET output pin. The ON pin signal turns the chip on and off and can also be used for the reset function. The MS package has FAULT and FILTER pins to provide additional functions like fault indication, autoretry or latch-off modes, programmable current limit response time and programmable overvoltage protection using an external Zener diode clamp.
| Technical/Catalog Information | LTC4211IS8 |
| Vendor | Linear Technology |
| Category | Integrated Circuits (ICs) |
| Applications | General Purpose |
| Type | Hot-Swap Controller |
| Package / Case | 8-SOIC (3.9mm Width) |
| Packaging | Tube |
| Current Limit | - |
| Internal Switch(s) | No |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.5 V ~ 16.5 V |
| Drawing Number | 161; 05-08-1610; S; 8 |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | LTC4211IS8 LTC4211IS8 |
The LTC®4211 is a Hot SwapTM controller that allows a board to be safely inserted and removed from a live backplane. An internal high side switch driver controls the gate of an external N-channel MOSFET for supply voltages ranging from 2.5V to 16.5V. The LTC4211 provides softstart and inrush current limiting during the start-up period which has a programmable duration.
Two on-chip current limit comparators provide dual level overcurrent circuit breaker protection. The slow comparator trips at VCC 50mV and activates in 20ms (or programmed by an external filter capacitor, MS only). The fast comparator trips at VCC 150mV and typically responds in 300ns.
The FB pin monitors the output supply voltage and signals the RESET output pin. The ON pin signal turns the chip on and off and can also be used for the reset function. The MS package has FAULT and FILTER pins to provide additional functions like fault indication, autoretry or latch-off modes, programmable current limit response time and programmable overvoltage protection using an external Zener diode clamp.
