LZ9FC12, LZ9FC22, LZ9FC23

Table of contents:
Info of LZ9FC12
Info of LZ9FC22
Info of LZ9FC23

LZ9FC12, LZ9FC22, LZ9FC23 Selling Leads, Datasheet

MFG:Sharp Microelectronics Category:Integrated Circuits (ICs) Package Cooled:20 D/C:DIP

LZ9FC12, LZ9FC22, LZ9FC23 Datasheet download

Five Points

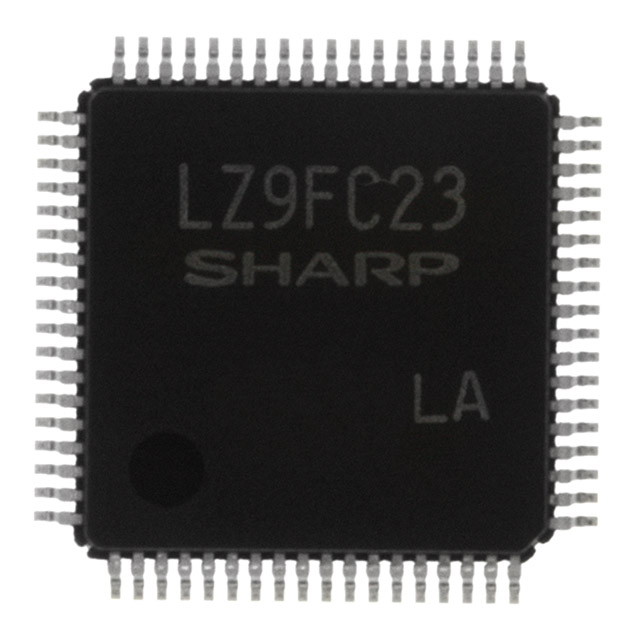

Part Number: LZ9FC23

Category: Integrated Circuits (ICs)

MFG: Sharp Microelectronics

Package Cooled: 20

D/C: DIP

Description: ASIC FOR SMALL TFT DISPLAY

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LZ9FC22 General Description

This data sheet is to introduce the specification of LZ9FC22 , timing Control IC for TFT - LCD module.

Applicable TFT-LCD module : QVGA(Portrate / Landscape) pixel type module

LZ9FC22 Maximum Ratings

Parameter	Symbol	Rating	Unit
Supply voltage	V_DD	-0.3 ~ 6.0	V
Input voltage	V_I	-0.3 ~ VDD+0.3	V
Output voltage	V_O	-0.3 ~ VDD+0.3	V
Operating temperature	Topr	-30 ~ +85
Strage temperature	Tstg	-55 ~ +150

LZ9FC22 Features

`Process : CMOS
`Wafer substrate : P-type silicon substrate
`Package : 72QFP(0.5mm pin pitch)
`Operating Temperature : -30 ~ +85
`Propagation delay time : 1ns/gate (Condition : V_DD=3.3V, Topr=25)

LZ9FC23 Parameters

Technical/Catalog Information	LZ9FC23
Vendor	Sharp Microelectronics
Category	Integrated Circuits (ICs)
Type	*
Applications	*
Package / Case	*
Packaging	*
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LZ9FC23 LZ9FC23 425 2496 ND 4252496ND 425-2496
