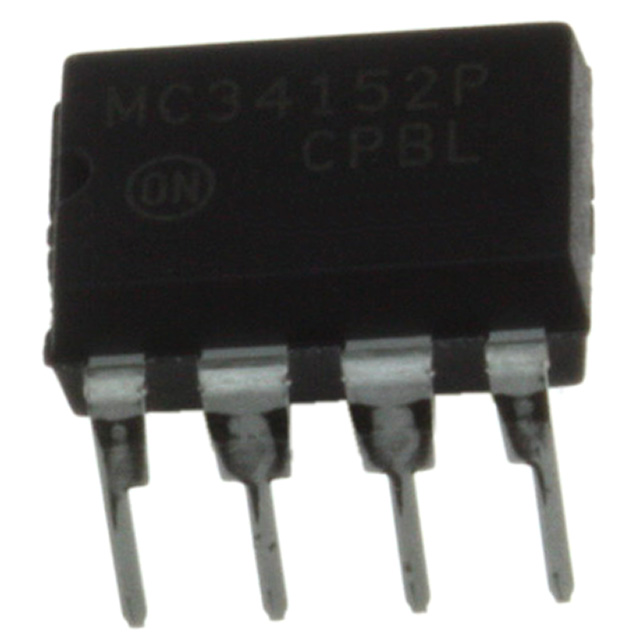

MC34152P, MC34152PG, MC34154P Datasheet download
Category: Integrated Circuits (ICs)
MFG: ON Semiconductor
Package Cooled: DIP-8
D/C: 05+
Description: IC MOSFET DRIVER DUAL HS 8DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MC306
File Size: 28737 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MC306
File Size: 28737 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MC306
File Size: 28737 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
| Technical/Catalog Information | MC34152P |
| Vendor | ON Semiconductor |
| Category | Integrated Circuits (ICs) |
| Configuration | Low-Side |
| Voltage - Supply | 6.5 V ~ 18 V |
| Current - Peak | 1.5A |
| Delay Time | 55ns |
| Package / Case | 8-DIP (300 mil) |
| Packaging | Tube |
| Number of Outputs | 2 |
| Input Type | Non-Inverting |
| Number of Configurations | 2 |
| Operating Temperature | 0°C ~ 70°C |
| High Side Voltage - Max (Bootstrap) | - |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MC34152P MC34152P MC34152POS ND MC34152POSND MC34152POS |
| Rating | Symbol | Value | Unit |
| Power Supply Voltage | VCC | 20 | V |
| Logic Inputs (Note 1) | Vin | 0.3 to +VCC | V |
| Drive Outputs (Note 2) Totem Pole Sink or Source Current Diode Clamp Current (Drive Output to VCC) |
IO IO(clamp) |
1.5 1.0 |
A |
| Power Dissipation and Thermal Characteristics D Suffix, Plastic Package Case 751 Maximum Power Dissipation @ TA = 50°C Thermal Resistance, JunctiontoAir P Suffix, Plastic Package, Case 626 Maximum Power Dissipation @ TA = 50°C Thermal Resistance, JunctiontoAir |
PD RqJA PD RqJA |
0.56 180 1.0 100 |
W °C/W W °C/W |
| Operating Junction Temperature | TJ | +150 | °C |
| Operating Ambient Temperature MC34152 MC33152 |
TA | 0 to +70 40 to +85 |
°C |
| Storage Temperature Range | Tstg | 65 to +150 | °C |
| Technical/Catalog Information | MC34152PG |
| Vendor | ON Semiconductor |
| Category | Integrated Circuits (ICs) |
| Configuration | Low-Side |
| Voltage - Supply | 6.5 V ~ 18 V |
| Current - Peak | 1.5A |
| Delay Time | 55ns |
| Package / Case | 8-DIP (300 mil) |
| Packaging | Tube |
| Number of Outputs | 2 |
| Input Type | Non-Inverting |
| Number of Configurations | 2 |
| Operating Temperature | 0°C ~ 70°C |
| High Side Voltage - Max (Bootstrap) | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MC34152PG MC34152PG MC34152PGOS ND MC34152PGOSND MC34152PGOS |
