MFG:Cirrus Logic Inc Category:Integrated Circuits (ICs) D/C:09+
MP108FD, MP108FDA, MP1096 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled:
D/C: 09+
Description: IC OPAMP 200V 10A 100W A 34DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MP108FD
File Size: 126204 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MP1000
File Size: 36063 KB
Manufacturer: WTE [Won-Top Electronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MP1000
File Size: 36063 KB
Manufacturer: WTE [Won-Top Electronics]
Download : Click here to Download
| Technical/Catalog Information | MP108FD |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | 34-DIP Module |
| Slew Rate | 170 V/s |
| Gain Bandwidth Product | 10MHz |
| Current - Supply | 50mA |
| Current - Output / Channel | 10A |
| Voltage - Supply, Single/Dual (±) | 30 V ~ 200 V, ±15 V ~ 100 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 100pA |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input Offset | 1000V |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MP108FD MP108FD 598 1407 ND 5981407ND 598-1407 |

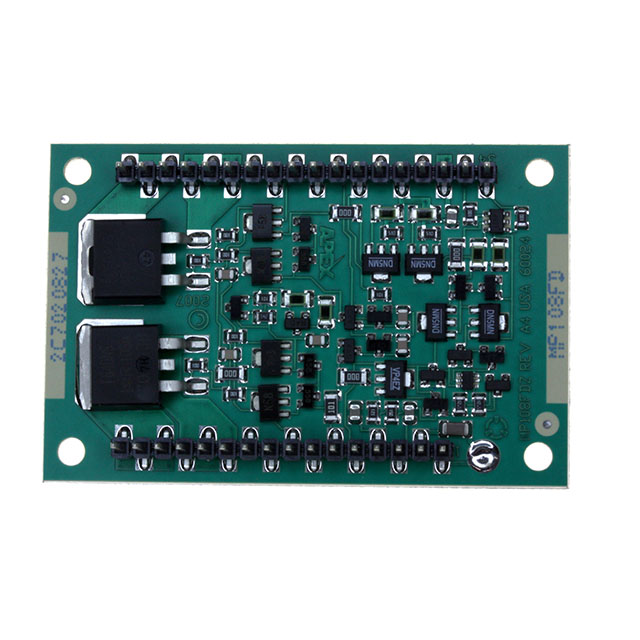

The MP108FD operational amplifi er is a surface mount constructed component that provides a cost effective solution in many industrial applications. The MP108FD offers outstanding performance that rivals much more expensive hybrid components yet has a footprint of only 4 sq in. The MP108FD has many optional features such as four-wire current limit sensing and external compensation. The 300 kHz power bandwidth and 10 amp output of the MP108FD makes it a good choice for piezo transducer drive applications. The MP108FD is built on a thermally conductive but electrically insulating substrate that can be mounted to a heat sink.
| Technical/Catalog Information | MP108FDA |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | 34-DIP Module |
| Slew Rate | 170 V/s |
| Gain Bandwidth Product | 10MHz |
| Current - Supply | 50mA |
| Current - Output/Channel | 11A |
| Voltage - Supply, Single/Dual (±) | 30 V ~ 200 V, ±15 V ~ 100 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 70pA |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input Offset | 1000V |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MP108FDA MP108FDA 598 1408 ND 5981408ND 598-1408 |
