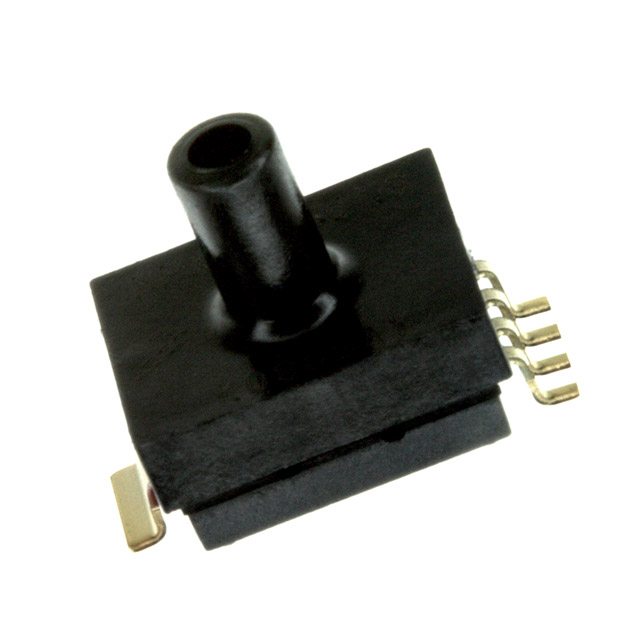

The MPXM2010 device is a silicon piezoresistive pressure sensors providing a highly accurate and linear voltage output - directly proportional to the applied pressure. The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thinfilm resistor network integrated onchip. The chip is laser trimmed for precise span and offset calibration and temperature compensation.
MPXM2010GST1 Maximum Ratings
Rating
Symbol
Value
Unit
Maximum Pressure (P1 > P2)
Pmax
75
kPa
Storage Temperature
Tstg
40 to +125
°C
Operating Temperature
TA
40 to +125
°C
MPXM2010GST1 Features
• Temperature Compensated Over 0°C to +85°C • Available in EasytoUse Tape & Reel • Ratiometric to Supply Voltage • Gauge Ported & Non Ported Options
MPXM2010GST1 Typical Application
• Respiratory Diagnostics • Air Movement Control • Controllers • Pressure Switching
