MPXV6115VC6U, MPXV7002DPT1, MPXV7002GC6T1

MPXV6115VC6U, MPXV7002DPT1, MPXV7002GC6T1 Selling Leads, Datasheet

MFG:Freescale Semiconductor  Category:Sensors, Transducers  D/C:912

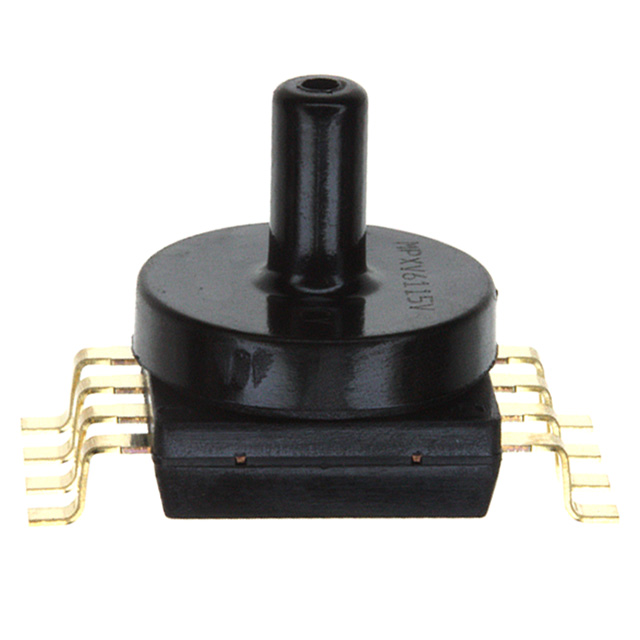

MPXV6115VC6U Picture

MPXV6115VC6U, MPXV7002DPT1, MPXV7002GC6T1 Datasheet download

Five Points

Part Number: MPXV6115VC6U

Category: Sensors, Transducers

MFG: Freescale Semiconductor

Package Cooled:

D/C: 912

Description: SENSOR PRESSURE 8SOP AXIAL PORT

Price Break

1
25
100
1000

Unit Price

9.29000
8.52160
7.35260
6.98400

Extended Price

9.29
213.04
735.26
6984.00

(All prices are in USD) Prices for reference only
Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

MPXV6115VC6U Suppliers

More MPXV6115VC6U Suppliers

Select All

  • MPX10D

  • D/C: 08+& Qty: 300 Note: same day shipment  Adddate: 2024-05-02
  • Inquire Now
  • Skyeast Intl. Ltd.   China
    Contact: Mr.RichardLiu
    Tel: 86--755-83276226
    Fax: 86--755--83215205
    (0)
  • MPX10D

  • Vendor: Freescale D/C: 10+& Qty: 1500 Note: STOCK  Adddate: 2024-05-02
  • Inquire Now
  • DCXF   China
    Contact: Ms.ZHAO   MSN:zhaoyan2004@hotmail.com
    Tel: 0086-010-82533383
    Fax: 0086-010-82533393
    (20)
  • MPX10DP

  • Vendor: Microchip D/C: 07+& Qty: 30000 Note: absolutely new & original stock 0086-0755-83678281 Marvin chen  Adddate: 2024-05-02
  • Inquire Now
  • E-TECH TECHNOLOGY (ASIA) CO.,LTD.   China
    Contact: Mr.ChenMarvin   MSN:etechasia@hotmail.com
    Tel: 0086-0755-83678281
    Fax: 0086-0755-83013662
    (5)
  • MPX10DP

  • Vendor: FREESCALE Pack: 10+ Qty: 600  Adddate: 2024-05-02
  • Inquire Now
  • Bejing Guanyu   China
    Contact: Mr.Fan   MSN:fhaitao4@sohu.com
    Tel: 086-010-85864893
    Fax: 086-010-63009695
    (25)
  • MPX10DP

  • Vendor: Freescale D/C: 08+& Qty: 4523 Note: OUR OWN STOCK  Adddate: 2024-05-02
  • Inquire Now
  • JLH TECHNOLOGY CO.   China
    Contact: Mr.SAM LEE   MSN:lesson1992@hotmail.com
    Tel: 86-755-83740160-806
    Fax: 86-755-83740857
    (10)

About MPXV6115VC6U

PDF/DataSheet Download

Datasheet: MPXV6115VC6U

File Size: 95847 KB

Manufacturer: Motorola

Download : Click here to Download

Related PDF Download

Related Part Number

MPXV7002DPT1 Suppliers

More MPXV7002DPT1 Suppliers

Select All

  • MPX10D

  • D/C: 08+& Qty: 300 Note: same day shipment  Adddate: 2024-05-02
  • Inquire Now
  • Skyeast Intl. Ltd.   China
    Contact: Mr.RichardLiu
    Tel: 86--755-83276226
    Fax: 86--755--83215205
    (0)
  • MPX10D

  • Vendor: Freescale D/C: 10+& Qty: 1500 Note: STOCK  Adddate: 2024-05-02
  • Inquire Now
  • DCXF   China
    Contact: Ms.ZHAO   MSN:zhaoyan2004@hotmail.com
    Tel: 0086-010-82533383
    Fax: 0086-010-82533393
    (20)
  • MPX10DP

  • Vendor: Microchip D/C: 07+& Qty: 30000 Note: absolutely new & original stock 0086-0755-83678281 Marvin chen  Adddate: 2024-05-02
  • Inquire Now
  • E-TECH TECHNOLOGY (ASIA) CO.,LTD.   China
    Contact: Mr.ChenMarvin   MSN:etechasia@hotmail.com
    Tel: 0086-0755-83678281
    Fax: 0086-0755-83013662
    (5)
  • MPX10DP

  • Vendor: FREESCALE Pack: 10+ Qty: 600  Adddate: 2024-05-02
  • Inquire Now
  • Bejing Guanyu   China
    Contact: Mr.Fan   MSN:fhaitao4@sohu.com
    Tel: 086-010-85864893
    Fax: 086-010-63009695
    (25)
  • MPX10DP

  • Vendor: Freescale D/C: 08+& Qty: 4523 Note: OUR OWN STOCK  Adddate: 2024-05-02
  • Inquire Now
  • JLH TECHNOLOGY CO.   China
    Contact: Mr.SAM LEE   MSN:lesson1992@hotmail.com
    Tel: 86-755-83740160-806
    Fax: 86-755-83740857
    (10)

About MPX10

PDF/DataSheet Download

Datasheet: MPX10

File Size: 161598 KB

Manufacturer: MOTOROLA [Motorola, Inc]

Download : Click here to Download

Related PDF Download

Related Part Number

MPXV7002GC6T1 Suppliers

More MPXV7002GC6T1 Suppliers

Select All

  • MPX10D

  • D/C: 08+& Qty: 300 Note: same day shipment  Adddate: 2024-05-02
  • Inquire Now
  • Skyeast Intl. Ltd.   China
    Contact: Mr.RichardLiu
    Tel: 86--755-83276226
    Fax: 86--755--83215205
    (0)
  • MPX10D

  • Vendor: Freescale D/C: 10+& Qty: 1500 Note: STOCK  Adddate: 2024-05-02
  • Inquire Now
  • DCXF   China
    Contact: Ms.ZHAO   MSN:zhaoyan2004@hotmail.com
    Tel: 0086-010-82533383
    Fax: 0086-010-82533393
    (20)
  • MPX10DP

  • Vendor: Microchip D/C: 07+& Qty: 30000 Note: absolutely new & original stock 0086-0755-83678281 Marvin chen  Adddate: 2024-05-02
  • Inquire Now
  • E-TECH TECHNOLOGY (ASIA) CO.,LTD.   China
    Contact: Mr.ChenMarvin   MSN:etechasia@hotmail.com
    Tel: 0086-0755-83678281
    Fax: 0086-0755-83013662
    (5)
  • MPX10DP

  • Vendor: FREESCALE Pack: 10+ Qty: 600  Adddate: 2024-05-02
  • Inquire Now
  • Bejing Guanyu   China
    Contact: Mr.Fan   MSN:fhaitao4@sohu.com
    Tel: 086-010-85864893
    Fax: 086-010-63009695
    (25)
  • MPX10DP

  • Vendor: Freescale D/C: 08+& Qty: 4523 Note: OUR OWN STOCK  Adddate: 2024-05-02
  • Inquire Now
  • JLH TECHNOLOGY CO.   China
    Contact: Mr.SAM LEE   MSN:lesson1992@hotmail.com
    Tel: 86-755-83740160-806
    Fax: 86-755-83740857
    (10)

About MPX10

PDF/DataSheet Download

Datasheet: MPX10

File Size: 161598 KB

Manufacturer: MOTOROLA [Motorola, Inc]

Download : Click here to Download

Related PDF Download

Related Part Number

MPXV6115VC6U Parameters

Technical/Catalog InformationMPXV6115VC6U
VendorFreescale Semiconductor
CategorySensors, Transducers
Operating Pressure-16.7 ~ 0 PSI
Voltage - Rated 5VDC
Output0.2 ~ 4.6V
Package / Case8-SOP Axial Port
Pressure TypeDifferential
FeaturesRatiometric Output
InterfacePC Board Mount
Pressure PortMale
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MPXV6115VC6U
MPXV6115VC6U

MPXV6115VC6U General Description

Motorola's MPXV6115VC6U sensor integrates onchip, bipolar op amp circuitry and thin film resistor networks to provide a high output signal and temperature compensation. The small form factor and high reliability of onchip integration make the Motorola pressure sensor a logical and economical choice for the system designer.

The MPXV6115VC6U piezoresistive transducer is a stateoftheart, monolithic, signal conditioned, silicon pressure sensor. This sensor combines advanced micromachining techniques, thin film metallization, and bipolar semiconductor processing to provide an accurate, high level analog output signal that is proportional to applied pressure.

MPXV6115VC6U Maximum Ratings

Rating Symbol Value Unit
Maximum Pressure (P1 > P2)
Pmax 400
kPa
Storage Temperature Tstg 40° to +125°
Operating Temperature TA 40° to +125°
Output Source Current @ Full Scale Output(2) Io+ 0.5 mAdc
Output Sink Current @ Minimum Pressure Offset(2) Io -0.5 mAdc

NOTES:
1. Exposure beyond the specified limits may cause permanent damage or degradation to the device.
2. Maximum Output Current is controlled by effective impedance from Vout to Gnd or Vout to VS in the application circuit.

MPXV6115VC6U Features

• Improved Accuracy at High Temperature
• 1.5% Maximum Error over 0° to 85
• Ideally suited for Microprocessor or MicrocontrollerBased Systems
• Temperature Compensated from 40° to +125
• Durable Thermoplastic (PPS) Surface Mount Package

MPXV6115VC6U Typical Application

• Vacuum Pump Monitoring
• Brake Booster Monitoring

MPXV7002DPT1 Parameters

Technical/Catalog InformationMPXV7002DPT1
VendorFreescale Semiconductor
CategorySensors, Transducers
Operating Pressure±0.3 PSID
Voltage - Rated 5VDC
Output0.5 ~ 4.5V
Package / Case8-SOP Dual Port
Pressure TypeDifferential
FeaturesCalibrated and Temperature Compensated
InterfacePC Board Mount
Pressure PortMale
Port Size*
Termination Style*
Voltage - Supply*
Operating Temperature*
Drawing Number375; 1351-01; ; 8
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MPXV7002DPT1
MPXV7002DPT1

MPXV7002GC6T1 Parameters

Technical/Catalog InformationMPXV7002GC6T1
VendorFreescale Semiconductor
CategorySensors, Transducers
Operating Pressure0 ~ 0.3 PSIG
Voltage - Rated 5VDC
Output0.5 ~ 4.5V
Package / Case8-SOP Axial Port
Pressure TypeGauge
FeaturesCalibrated and Temperature Compensated
InterfacePC Board Mount
Pressure PortMale
Port Size*
Termination Style*
Voltage - Supply*
Operating Temperature*
Drawing Number375; 482A-01; ; 8
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MPXV7002GC6T1
MPXV7002GC6T1
