MFG:ON Semiconductor Category:Discrete Semiconductor Products Package Cooled:mot D/C:DO-201
MR854RL, MR854RLG, MR856 Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor
Package Cooled: mot
D/C: DO-201

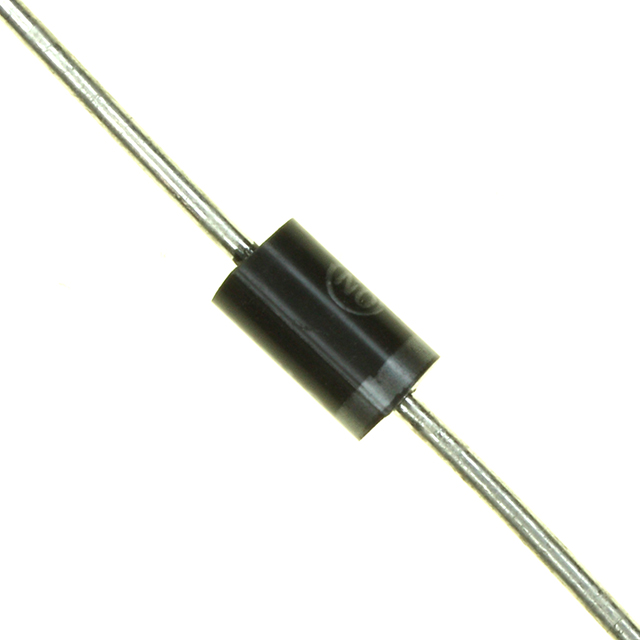

Description: DIODE FAST REC 3A 600V DO-201AD
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MR80C86
File Size: 347270 KB
Manufacturer: INTERSIL [Intersil Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MR80C86
File Size: 347270 KB
Manufacturer: INTERSIL [Intersil Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MR856
File Size: 48728 KB
Manufacturer: BYTES [Bytes]
Download : Click here to Download
| Technical/Catalog Information | MR854RL |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 3A |
| Reverse Recovery Time (trr) | 300ns |
| Current - Reverse Leakage @ Vr | 10A @ 400V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Axial |
| Package / Case | DO-201AD, Axial |
| Packaging | Tape & Reel (TR) |
| Capacitance @ Vr, F | - |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MR854RL MR854RL |
| Technical/Catalog Information | MR854RLG |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 3A |
| Reverse Recovery Time (trr) | 300ns |
| Current - Reverse Leakage @ Vr | 250A @ 400V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Axial |
| Package / Case | DO-201AD, Axial |
| Packaging | Cut Tape (CT) |
| Capacitance @ Vr, F | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MR854RLG MR854RLG MR854RLGOSCT ND MR854RLGOSCTND MR854RLGOSCT |
| Technical/Catalog Information | MR856 |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 3A |
| Reverse Recovery Time (trr) | 300ns |
| Current - Reverse Leakage @ Vr | 10A @ 600V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Axial |
| Package / Case | DO-201AD, Axial |
| Packaging | Bulk |
| Capacitance @ Vr, F | - |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MR856 MR856 |
| RATING | SYMBO | MR850 | MR851 | MR852 | MR854 | MR856 | MR858 | UNIT |
| Maximum Recurrent Peak Reverse Voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | V |
| Maximum RMS Voltag | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | V |
| Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | V |
| Maximum Average Forward Current 0.375"(9.5mm) Lead Length Ta = 90 |
IF(AV) | 3.0 | A | |||||
| Peak Forward Surge Current, 8.3ms Single half sine wave Superimposed on rated load (JEDEC Method) |
IFSM | 100 | A | |||||
| Maximum Peak Forward Voltage at IF = 3.0 A | VF | 1.25 | V | |||||
| Maximum DC Reverse Current Ta = 25 at Rated DC Blocking Voltage Ta = 100 |
IR | 10 | A | |||||
| IR(H) | 150 | A | ||||||
| Maximum Reverse Recovery Time ( Note 1 ) | Trr | 150 | ns | |||||
| Typical Junction Capacitance ( Note 2 ) | CJ | 28 | pf | |||||
| Junction Temperature Range | TJ | - 65 to + 150 | ||||||
| Storage Temperature Range | TSTG | - 65 to + 150 | ||||||
