NSS40500UW3T2G, NSS40501UW3T2G, NSS40600CF8T1G

Table of contents:
Info of NSS40500UW3T2G
Info of NSS40501UW3T2G
Info of NSS40600CF8T1G

NSS40500UW3T2G, NSS40501UW3T2G, NSS40600CF8T1G Selling Leads, Datasheet

MFG:ON Semiconductor Category:Discrete Semiconductor Products Package Cooled:WDFN3 D/C:2200

NSS40500UW3T2G, NSS40501UW3T2G, NSS40600CF8T1G Datasheet download

Five Points

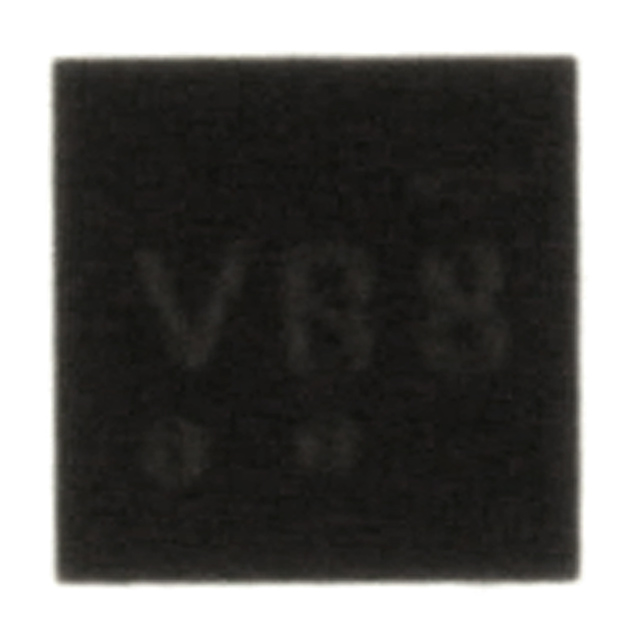

Part Number: NSS40501UW3T2G

Category: Discrete Semiconductor Products

MFG: ON Semiconductor

Package Cooled: WDFN3

D/C: 2200

Description: TRANSISTOR PNP 6A 40V 8CHIPFET

Price Break

3000

Unit Price

.36450

Extended Price

1093.50

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NSS40500UW3T2G Parameters

Technical/Catalog Information	NSS40500UW3T2G
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	40V
Current - Collector (Ic) (Max)	5A
Power - Max	875mW
DC Current Gain (hFE) (Min) @ Ic, Vce	180 @ 2A, 2V
Vce Saturation (Max) @ Ib, Ic	220mV @ 20mA, 2A
Frequency - Transition	100MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Surface Mount
Package / Case	WDFN-3
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NSS40500UW3T2G NSS40500UW3T2G

NSS40500UW3T2G General Description

ON Semiconductor's e2PowerEdge family of low VCE(sat) ransistors are miniature surface mount devices featuring ultra low aturation voltage (VCE(sat)) and high current gain capability. These re designed for use in low voltage, high speed switching applications here affordable efficient energy control is important. ypical applications are DC−DC converters and power management n portable and battery powered products such as cellular and cordless hones, PDAs, computers, printers, digital cameras and MP3 players.

Other applications are low voltage motor controls in mass storage roducts such as disc drives and tape drives. In the automotive ndustry they can be used in air bag deployment and in the instrument luster. The high current gain allows e2PowerEdge devices to be riven directly from PMU's control outputs, and the Linear Gain Beta) makes them ideal components in analog amplifiers.
• This is a Pb−Free Device

NSS40500UW3T2G Maximum Ratings

Rating	Symbol	Max	Unit
Collector-Emitter Voltage	V_CEO	-40	Vdc
Collector-Base Voltage	V_CBO	-40	Vdc
Emitter-Base Voltage	V_EBO	-7	Vdc
Collector Current − Continuous	I_C	-5	Adc
Collector Current − Peak	I_CM	-6	A
Electrostatic Discharge	ESD	HBM Class 3B MM Class C

NSS40501UW3T2G Parameters

Technical/Catalog Information	NSS40501UW3T2G
Vendor	ON Semiconductor (VA)
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	40V
Current - Collector (Ic) (Max)	5A
Power - Max	875mW
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 1A, 2V
Vce Saturation (Max) @ Ib, Ic	150mV @ 400mA, 4A
Frequency - Transition	150MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Surface Mount
Package / Case	3-WDFN
Packaging	Digi-Reel?
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NSS40501UW3T2G NSS40501UW3T2G NSS40501UW3T2GOSDKR ND NSS40501UW3T2GOSDKRND NSS40501UW3T2GOSDKR

NSS40600CF8T1G Parameters

Technical/Catalog Information	NSS40600CF8T1G
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	40V
Current - Collector (Ic) (Max)	6A
Power - Max	830mW
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 1A, 2V
Vce Saturation (Max) @ Ib, Ic	120mV @ 200mA, 2A
Frequency - Transition	100MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Surface Mount
Package / Case	8-ChipFET?
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NSS40600CF8T1G NSS40600CF8T1G
