NX8563 General Description
NEC's NX8563 Series are a 1550 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode with Polarization Maintain Fiber (PMF). This device is de- signed as Continuous Wave (CW) light source and ideal for optical transmission systems in which external modulators are used.
This device is available for Dense Wavelenght Division Multi- plexing (DWDM) wave lengths based on ITU-T recommenda- tions, enabling a wide range of applications.
NX8563 Maximum Ratings
| SYMBOLS | PARAMETERS | UNITS | RATINGS |
| IF | Forward Current ofLD | mA | 300 |
| VR | Reverse Voltage of LD | V | 2.0 |
| IF | Forward Current of PD | mA | 10 |
| VR | Reverse Voltage of PD | V | 20 |
| TC | Operating Case Temperature | °C | -20 to +70 |
| TSTG | Storage Temperature | °C | -40 to +85 |
| TSLD | Lead Soldering Temperature (10 s) |
°C | 260 |
NX8563 Features
OUTPUT POWER:
Pf = 10 mW MIN
INTERNAL THERMOELECTRIC COOLER AND ISOLATOR
HERMETICALLY SEALED 14-PIN BUTTERFLY PACKAGE
POLARIZATION MAINTAIN FIBER PIGTAIL
AVAILABLE FOR DWDM WAVELENGTHS BASED ON
ITU-T RECOMMENDATIONS (100 GHz GRID) REFER TO
THE ORDERING INFORMATION
Pf = 10 mW MIN
INTERNAL THERMOELECTRIC COOLER AND ISOLATOR
HERMETICALLY SEALED 14-PIN BUTTERFLY PACKAGE
POLARIZATION MAINTAIN FIBER PIGTAIL
AVAILABLE FOR DWDM WAVELENGTHS BASED ON
ITU-T RECOMMENDATIONS (100 GHz GRID) REFER TO
THE ORDERING INFORMATION

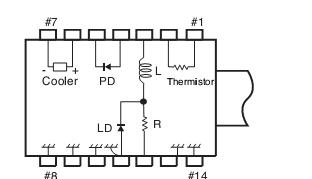

NX8563 Connection Diagram
NX8563LA General Description
NEC's NX8563LA Series is a 1 550 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode module with Single Mode Fiber.
It is designed as directly modulation light source and ideal for optical transmission systems. The device is available for Dense Wavelength Division Multiplexing (DWDM) wavelengths based on ITU-T recommendations, enabling a wide range of applications.
It is designed as directly modulation light source and ideal for optical transmission systems. The device is available for Dense Wavelength Division Multiplexing (DWDM) wavelengths based on ITU-T recommendations, enabling a wide range of applications.
NX8563LA Maximum Ratings
| SYMBOL | PARAMETER | UNIT | RATINGS |
| IF | Forward Current of LD | mA | 300 |
| VR | Reverse Voltage of LD | V | 2.0 |
| IF | Forward Current of PD | mA | 10 |
| VR | Reverse Voltage of PD | V | 20 |
| TC | Operating Case Temperature |
°C | -20 to +85 |
| Tstg | Storage Temperature | °C | -40 to +85 |
| Tsld | Lead Soldering Temperature |
°C | 260 (10 sec.) |
NX8563LA Features
* PEAK OUTPUT POWER Pf = 10 mW MIN.
* INTERNAL THERMO-ELECTRIC COOLER AND ISOLATOR
* HERMETICALLY SEALED 14-PIN BUTTERFLY PACKAGE
* SINGLE MODE FIBER PIGTAIL
* WIDE OPERATION TEMPERATURE RANGE
* AVAILABLE FOR DWDM WAVELENGTHS BASED ON ITU-T RECOMMENDATIONS
* INTERNAL THERMO-ELECTRIC COOLER AND ISOLATOR
* HERMETICALLY SEALED 14-PIN BUTTERFLY PACKAGE
* SINGLE MODE FIBER PIGTAIL
* WIDE OPERATION TEMPERATURE RANGE
* AVAILABLE FOR DWDM WAVELENGTHS BASED ON ITU-T RECOMMENDATIONS
