PA12H, PA12M, PA12M/883
MFG:Cirrus Logic Inc Category:Integrated Circuits (ICs) D/C:N/A
Table of contents:

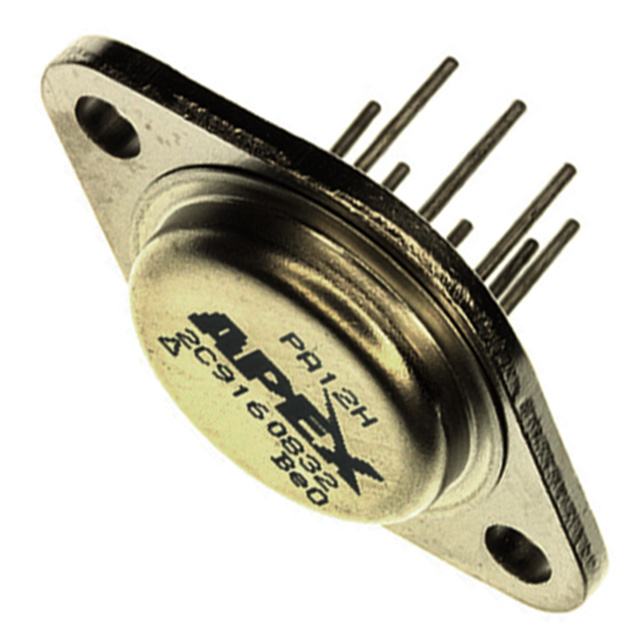

Part Number: PA12H
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
D/C: N/A
Description: OP AMP 90V 10A TO-3-8 CE GRP A
1
25
100
250
500
493.07000
442.06520
433.56380
425.06252
416.56126
493.07
11051.63
43356.38
106265.63
208280.63
PA12H Supplier
PA12H
MFG: APEX Package Cooled: TO-3 Qty: 500
Aslan Internatinal Trade Co., Limited
Contact: Mr.David King
Tel: 86-754-84420881
Adddate: 2010-03-10
PA12H
MFG: APEX Package Cooled: TO-3 D/C: 08+ Qty: 5000
ShenZhen HYC Electronic Technology CO.,LTD
Contact: Ms.julieYuan
Tel: 86-755-82892382
Adddate: 2010-03-10
PA12H
MFG: 7
Contact: Ms.RebeccaMiao
Tel: 86-10-58816651/58816653
Adddate: 2010-03-10
PA12H
MFG: 10 D/C: N/A
Contact: Ms.jane
Tel: 0086-755-28284975
Adddate: 2010-03-10
PA12H
MFG: APEX Package Cooled: TO-3 Qty: 33
Contact: Mr.hawk
Tel: 86-010-62957758
Adddate: 2010-03-10
PA12H
MFG: 10 D/C: N/A
Contact: Ms.Nancy
Tel: 86-755-83994412
Adddate: 2010-03-10
PA12H
MFG: APEX Package Cooled: 金封 D/C: 00+ Qty: 3 Note: 全新正品现货
beijing HJKX secience & Tchnology CO,LTD
Contact: Mr.fujiabin
Tel: 010-62938823-0
Adddate: 2010-03-10
About PA12H
PDF/DataSheet Download
Datasheet: PA12H
File Size: 442368 KB
Manufacturer: APEX
Download : Click here to Download
PA12M/883 Supplier
PA12M/883
MFG: APEX Package Cooled: TO-3 Qty: 500
Aslan Internatinal Trade Co., Limited
Contact: Mr.David King
Tel: 86-754-84420881
Adddate: 2010-03-10
PA12M/883
MFG: APEX Package Cooled: 八脚铁帽 D/C: 08+ Qty: 5000
ShenZhen HYC Electronic Technology CO.,LTD
Contact: Ms.julieYuan
Tel: 86-755-82892382
Adddate: 2010-03-10
PA12M/883
MFG: 120
ZHW HIGH-TECH (HK) Company Limited
Contact: Mr.Jack Wei
Tel: 0086-0755-84157334
Adddate: 2010-03-10
PA12M/883
Qty: 100
Windy Int'l Electronics Tech (HK) Limited
Contact: Ms.sophie
Tel: 86-852-30591777
Adddate: 2010-03-10
PA12M/883
MFG: APEX Package Cooled: TO-3 D/C: 03+ Qty: 25 Note: 现货
SHENZHEN KJX Electronic Co.,Lt
Contact: Mr.Caicaoze
Tel: 00086-0755-82985878
Adddate: 2010-03-10
PA12M/883
MFG: 10
Contact: Ms.RebeccaMiao
Tel: 86-10-58816651/58816653
Adddate: 2010-03-10
PA12M/883
MFG: APEX Package Cooled: TO-8(铁籽) D/C: 01+ Qty: 9531 Note: New
Contact: Mr.Alex
Tel: 86-755-81284360
Adddate: 2010-03-10
PA12M/883
MFG: 3 Package Cooled: APEX D/C: N/A
Contact: Ms.jane
Tel: 0086-755-28284975
Adddate: 2010-03-10
About PA12M/883
PDF/DataSheet Download
Datasheet: PA12M/883
File Size: 419880 KB
Manufacturer: APEX
Download : Click here to Download
PA12M Supplier
PA12M
MFG: APEX D/C: 08+ Qty: 1000
Showtech International (hk) CO.,LTD
Contact: Ms.AnnaHuang
Tel: 86-0755-82709648
Adddate: 2010-03-10
PA12M
MFG: APEX Package Cooled: TO-3 Qty: 500
Aslan Internatinal Trade Co., Limited
Contact: Mr.David King
Tel: 86-754-84420881
Adddate: 2010-03-10
PA12M
MFG: PAX Package Cooled: TO-8 Qty: 71
Action Dynamic Tech(HK) Trading Co.
Contact: Ms.lily Ma
Tel: 86-755-82539044-837
Adddate: 2010-03-10
PA12M
MFG: TO-8 Package Cooled: 71 Qty: PAX
Action Dynamic Tech(HK) Trading Co.
Contact: Ms.lily Ma
Tel: 86-755-82539044-837
Adddate: 2010-03-10
PA12M
MFG: PAX Package Cooled: N/A D/C: 08+ Qty: 58
Contact: Mr.John Zhang
Tel: 86-755-8288-4268
Adddate: 2010-03-10
PA12M
MFG: PAX Package Cooled: TO-8 Qty: 20
hk chishing electronics company
Contact: Ms.Lee Maggie
Tel: 86-755-61303995
Adddate: 2010-03-10
PA12M
MFG: APEX Package Cooled: 八脚铁帽 D/C: 08+ Qty: 5000
ShenZhen HYC Electronic Technology CO.,LTD
Contact: Ms.julieYuan
Tel: 86-755-82892382
Adddate: 2010-03-10
PA12M
MFG: PAX Package Cooled: TO-8 D/C: 04+ Qty: 20
ShenZhen HYC Electronic Technology CO.,LTD
Contact: Ms.julieYuan
Tel: 86-755-82892382
Adddate: 2010-03-10
About PA12M/883
PDF/DataSheet Download
Datasheet: PA12M/883
File Size: 419880 KB
Manufacturer: APEX
Download : Click here to Download
PA12H Parameters
| Technical/Catalog Information | PA12H |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | TO-3-8 |
| Slew Rate | 4 V/μs |
| Gain Bandwidth Product | 4MHz |
| Current - Supply | 25mA |
| Current - Output / Channel | 10A |
| Voltage - Supply, Single/Dual (±) | 20 V ~ 90 V, ±10 V ~ 45 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 12nA |
| Operating Temperature | -25°C ~ 125°C |
| Voltage - Input Offset | 2000μV |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PA12H PA12H 598 1305 ND 5981305ND 598-1305 |
PA12H General Description
The PA12H is a low cost, high temperature Power Op Amp made especially for short term use in extreme environmental situations such as down hole instrumentation. The amplifier can power mechanical or electronic transducers and can drive the long transmission lines associated with these applications.
The PA12H, based on the standard PA12’s very high power level, leaves a six watt capability after being derated for operation at a case temperature of 200°C. To meet the high temperature requirements for up to 200 hours, polyimid
has replaced the standard epoxy for attaching the small signal devices.
These hybrid integrated circuits utilize thick film conductors,ceramic capacitors and silicon semiconductors to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package (see Package Outlines) is hermetically sealed and isolated. The use of compressible thermal washers and/or improper mounting torque will void the product warranty. Please see “General Operating Considerations”.
PA12H Features
• LOW COST 200°C VERSION OF PA12
• OUTPUT CURRENT at 200°C — ±1A
• FULL SPECIFICATIONS — –25°C to +125°C
• WIDE SUPPLY RANGE — ±10 to ±45V
• CURRENT FOLDOVER PROTECTION
• EXCELLENT LINEARITY — Class A/B Output
PA12H Typical Application
• MOTOR, VALVE AND ACTUATOR CONTROL
• POWER TRANSDUCERS UP TO 100kHz
• PROGRAMMABLE POWER SUPPLIES UP TO 80V
• TRANSMISSION LINE DRIVER
PA12M Parameters
| Technical/Catalog Information | PA12M |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | TO-3-8 |
| Slew Rate | 2.5 V/μs |
| Gain Bandwidth Product | 4MHz |
| Current - Supply | 25mA |
| Current - Output/Channel | 10A |
| Voltage - Supply, Single/Dual (±) | 20 V ~ 90 V, ±10 V ~ 45 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 12nA |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Input Offset | 2000μV |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | PA12M PA12M 598 1427 ND 5981427ND 598-1427 |
PA12M/883 Parameters
| Technical/Catalog Information | PA12M/883 |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | TO-3-8 |
| Slew Rate | 2.5 V/μs |
| Gain Bandwidth Product | 4MHz |
| Current - Supply | 25mA |
| Current - Output / Channel | 10A |
| Voltage - Supply, Single/Dual (±) | 20 V ~ 90 V, ±10 V ~ 45 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 12nA |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Input Offset | 2000μV |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | PA12M 883 PA12M883 598 1306 ND 5981306ND 598-1306 |
