PI3USB10M, PI3USB10MZ, PI3USB10MZKEX

Table of contents:
Info of PI3USB10M
Info of PI3USB10MZ
Info of PI3USB10MZKEX

PI3USB10M, PI3USB10MZ, PI3USB10MZKEX Selling Leads, Datasheet

MFG:Pericom (VA) Category:Integrated Circuits (ICs) Package Cooled:0 D/C:09+

PI3USB10M, PI3USB10MZ, PI3USB10MZKEX Datasheet download

Five Points

Part Number: PI3USB10MZKEX

Category: Integrated Circuits (ICs)

MFG: Pericom (VA)

Package Cooled: 0

D/C: 09+

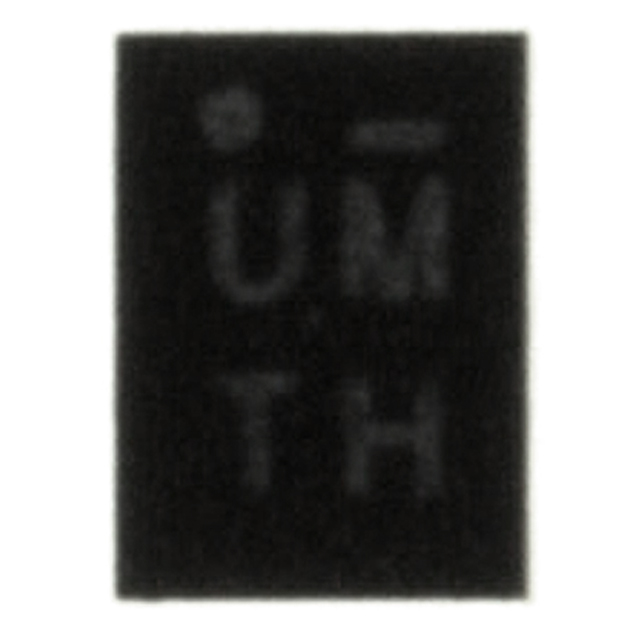

Description: IC USB SWITCH DUAL 2X1 12TQFN

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PI3USB10M General Description

The PI3USB10M is a single differential channel 2:1 multiplexer/demultiplexer USB 2.0 Switch. Industry leading advantages include a propagation delay of less than 250ps, resulting from its low channel resistance and I/O capacitance. The device multiplexes differential outputs from a USB Host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew, high channel-to-channel noise isolation and is compatible with various standards, such as High Speed USB 2.0 (480 Mb/s).

PI3USB10M Maximum Ratings

Storage Temperature .......................................................... 65°C to +150°C
Supply Voltage to Ground Potential ..................................... 0.5V to +4.0V
DC Input Voltage ................................................................. 0.5V to +5.5V
DC Output Current ............................................................... 120mA
Power Dissipation ................................................................ 0.5W

Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

PI3USB10M Features

• USB 2.0 compliant
• R_ON is 4 typical
• Low bit-to-bit skew
• Low Crosstalk: -31dB @ 250MHz
• Near-Zero propagation delay: 250ps
• Switching speed: 9ns
• Channel On Capacitance: 6pF (typical)
• V_CC Operating Range: 2.7V to 4.2V ±10%
• ESD>2000V . . . Human Body Model
• >700 MHz bandwidth (or data frequency)
• Packaging (Pb-free & Green):
-12-contact, 1.6mm x 2.2mm, TQFN (ZK)
-12-contact, 3mm x 3.5mm, TDFN (ZE)

PI3USB10M Typical Application

• Routes signals for USB 2.0
• Hand held devices

PI3USB10M Connection Diagram

PI3USB10MZKEX Parameters

Technical/Catalog Information	PI3USB10MZKEX
Vendor	Pericom (VA)
Category	Integrated Circuits (ICs)
Type	USB Switch
Voltage Supply Source	Single Supply
Voltage - Supply, Single/Dual (±)	3 V ~ 3.6 V
Circuit	2 x 2:1
On-State Resistance	8 Ohm
Mounting Type	Surface Mount
Package / Case	12-TQFN
Packaging	Digi-Reel?
Current - Supply	800A
Operating Temperature	-40°C ~ 85°C
Function	USB Switch
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PI3USB10MZKEX PI3USB10MZKEX PI3USB10MZKEXDKR ND PI3USB10MZKEXDKRND PI3USB10MZKEXDKR
