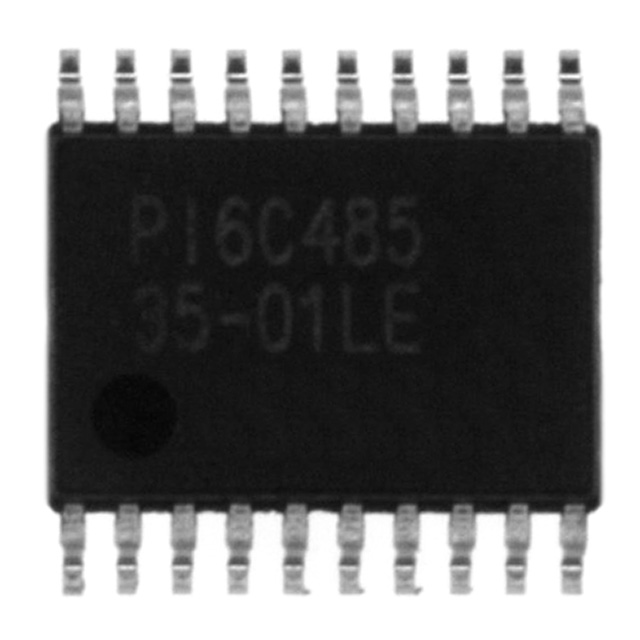

The PI6C48535-01 is a high-performance low-skew LVPECL fanout buffer. PI6C48535-01 features two selectable single-ended clock inputs and translates to four LVPECL outputs. The CLK0 and CLK1 inputs accept LVCMOS or LVTTL signals. The outputs are synchronized with input clock during asynchronous assertion/deassertion of CLK_EN pin. PI6C48535-01 is ideal for single-ended LVTTL/LVCMOS to LVPECL translations. Typical clock translation and distribution applications are data-communications and telecommunications.
PI6C48535-01 Maximum Ratings
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Units
VCC
Supply voltage
Referenced to GND
4.6
V
VIN
Input voltage
Referenced to GND
-0.5
VCC+0.5V
VOUT
Output voltage
Referenced to GND
-0.5
VCC+0.5V
TSTG
Storage temperature
-65
150
°C
Notes: 1. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress speci fications only and correct functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
PI6C48535-01 Features
• Maximum operation frequency: 500 MHz • 4 pair of differential LVPECL outputs • Selectable CLK0 and CLK1 inputs • CLK0, CLK1 accept LVCMOS, LVTTL input level • Output Skew: 80ps (maximum) • Part-to-part skew: 150ps (maximum) • Propagation delay: 1.9ns (maximum) • 3.3V power supply • Pin-to-pin compatible to ICS8535-01 • Operating Temperature: -40oC to 85oC • Packaging (Pb-free & Green available): - 20-pin TSSOP (L)
