PI6CX100-27, PI6CX100-27W, PI6CX100-27WE

Table of contents:
Info of PI6CX100-27
Info of PI6CX100-27W
Info of PI6CX100-27WE

PI6CX100-27, PI6CX100-27W, PI6CX100-27WE Selling Leads, Datasheet

MFG:Pericom Category:Integrated Circuits (ICs) Package Cooled:SOP8 D/C:08+

PI6CX100-27, PI6CX100-27W, PI6CX100-27WE Datasheet download

Five Points

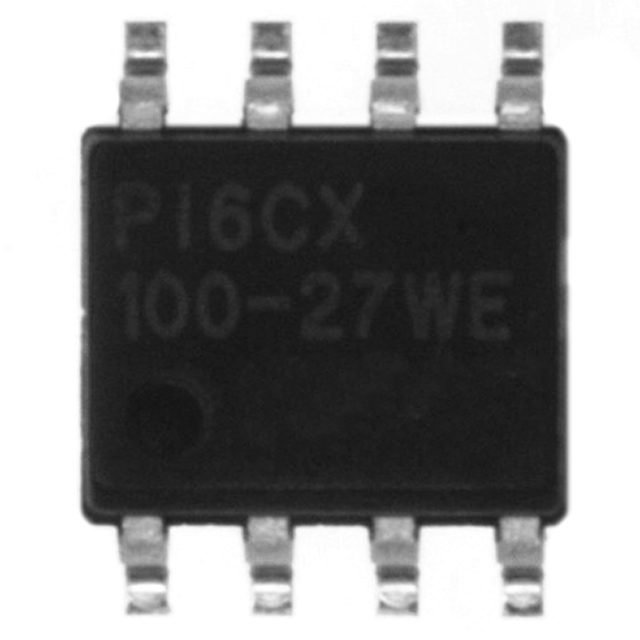

Part Number: PI6CX100-27WE

Category: Integrated Circuits (ICs)

MFG: Pericom

Package Cooled: SOP8

D/C: 08+

Description: IC VCXO 3.3V SET-TOP BOX 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PI6CX100-27 General Description

The PI6CX100-27 is a low-cost, high-performance 3.3V VCXO, designed to replace expensive VCXO modules. The on-chip Voltage Controlled Crystal Oscillator accepts a 0 to 3.3V input voltage to cause clocks to vary by ±120ppm. This device uses an inexpensive external pullable crystal at 27 MHz to produce the same output frequency.

The PI6CX100-27 is designed for Set-Top Box applications.

PI6CX100-27 Maximum Ratings

Storage Temperature .........................................55°C to 125°C
Ambient Temperature ........................................40°C to 85°C
Supply Voltage VDD ..............................................0.5V to 7V
Inputs/Outputs Voltage.............................. 0.5V to VDD +0.5V
Output Current ..................................................................10mA
Soldering Lead Temperature (10s)................................... 260°C
Junction Temperature .......................................50°C to 150°C

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

PI6CX100-27 Features

• 3.3V operating voltage
• Uses an inexpensive external crystal
• On-chip VCXO with pull range of 240ppm
• VCXO tuning voltage from 0 to 3.3V
• 10mA output drive at CMOS levels
• Available in SOIC package

PI6CX100-27 Connection Diagram

PI6CX100-27WE Parameters

Technical/Catalog Information	PI6CX100-27WE
Vendor	Pericom
Category	Integrated Circuits (ICs)
Type	Voltage Controlled Crystal Oscillator (VCXO)
Frequency	27MHz
Count	-
Voltage - Supply	3.135 V ~ 3.465 V
Current	10mA
Package / Case	8-SOIC
Packaging	Tube
Operating Temperature	-20°C ~ 70°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PI6CX100 27WE PI6CX10027WE
