PTH08080WAS, PTH08080WAZ, PTH08080WAZT

Table of contents:
Info of PTH08080WAS
Info of PTH08080WAZ
Info of PTH08080WAZT

PTH08080WAS, PTH08080WAZ, PTH08080WAZT Selling Leads, Datasheet

MFG:Texas Instruments Category:Power Supplies Package Cooled:2008 D/C:5DIP

PTH08080WAS, PTH08080WAZ, PTH08080WAZT Datasheet download

Five Points

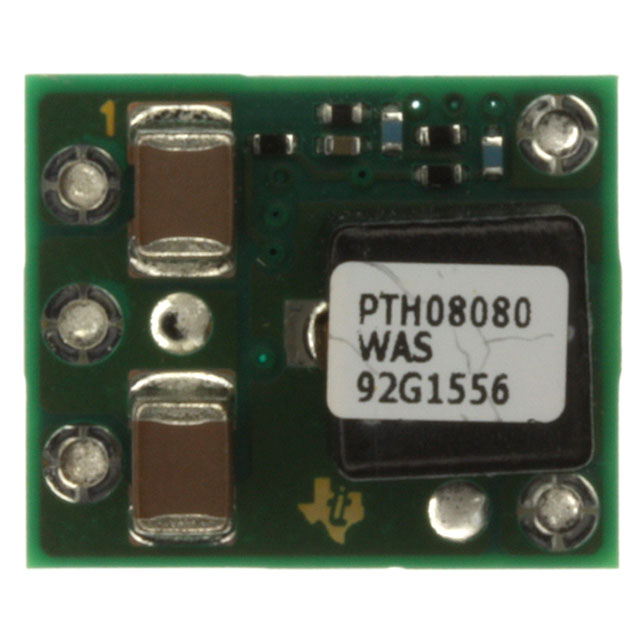

Part Number: PTH08080WAS

Category: Power Supplies

MFG: Texas Instruments

Package Cooled: 2008

D/C: 5DIP

Description: MODULE PIP 18VIN 2.25A ADJ SMD

Price Break

1
25
100
250
500
1000
5000

Unit Price

8.60000
6.88000
5.80500
5.59000
5.46100
5.37500
5.24600

Extended Price

8.60
172.00
580.50
1397.50
2730.50
5375.00
26230.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PTH08080WAS Parameters

Technical/Catalog Information	PTH08080WAS
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	4.5 ~ 18V
Output	0.9 ~ 5.5VDC
Power (Watts)	10W
Number of Outputs	1
1st Output	0.9 ~ 5.5 VDC @ 2.25A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Surface Mount
Packaging	Tray
Package / Case	5-DIP Module
Lead Free Status	Contains Lead
RoHS Status	RoHS Compliant by Exemption
Other Names	PTH08080WAS PTH08080WAS 296 19803 ND 29619803ND 296-19803

PTH08080WAZ Parameters

Technical/Catalog Information	PTH08080WAZ
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	4.5 ~ 18V
Output	0.9 ~ 5.5VDC
Power (Watts)	10W
Number of Outputs	1
1st Output	0.9 ~ 5.5 VDC @ 2.25A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Surface Mount
Packaging	Tray
Package / Case	5-DIP Module
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PTH08080WAZ PTH08080WAZ 296 20433 ND 29620433ND 296-20433

PTH08080WAZT Parameters

Technical/Catalog Information	PTH08080WAZT
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	4.5 ~ 18V
Output	0.9 ~ 5.5VDC
Power (Watts)	12.4W
Number of Outputs	1
1st Output	0.9 ~ 5.5 VDC @ 2.25A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)
Package / Case	5-DIP MODULE
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PTH08080WAZT PTH08080WAZT
