PTH08T210WAZ, PTH08T210WAZT, PTH08T220WAH

Table of contents:
Info of PTH08T210WAZ
Info of PTH08T210WAZT
Info of PTH08T220WAH

PTH08T210WAZ, PTH08T210WAZT, PTH08T220WAH Selling Leads, Datasheet

MFG:Texas Instruments Category:Power Supplies Package Cooled:N/A D/C:N/A

PTH08T210WAZ, PTH08T210WAZT, PTH08T220WAH Datasheet download

Five Points

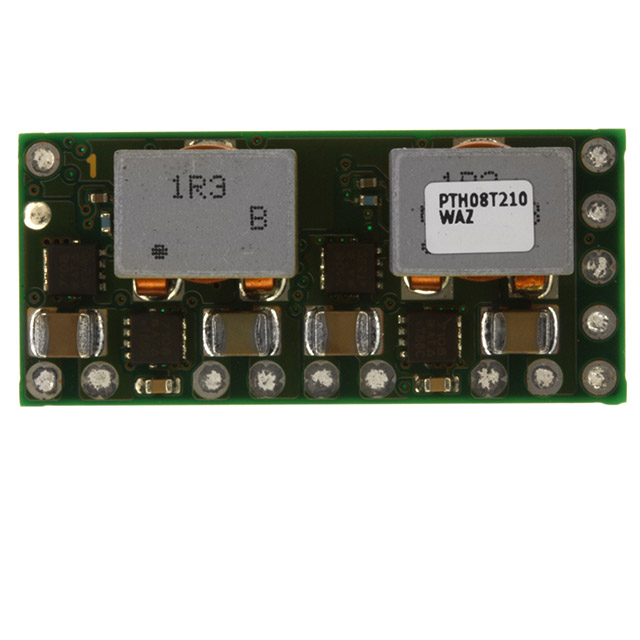

Part Number: PTH08T210WAZ

Category: Power Supplies

MFG: Texas Instruments

Package Cooled: N/A

D/C: N/A

Description: MODULE PIP 16A HORZ T/H 11-DIP

Price Break

1
25
100
250
500
1000
5000

Unit Price

25.65000
23.94000
22.23000
21.80252
21.37500
21.11850
20.52000

Extended Price

25.65
598.50
2223.00
5450.63
10687.50
21118.50
102600.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PTH08T210WAZ Parameters

Technical/Catalog Information	PTH08T210WAZ
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	5.5 ~ 14VDC
Output	0.7 ~ 3.6VDC
Power (Watts)	90W
Number of Outputs	1
1st Output	0.7 ~ 3.6 VDC @ 25A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Surface Mount
Packaging	Tray
Package / Case	14-DIP MODULE
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PTH08T210WAZ PTH08T210WAZ 296 20437 ND 29620437ND 296-20437

PTH08T210WAZT Parameters

Technical/Catalog Information	PTH08T210WAZT
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	5.5 ~ 14VDC
Output	0.7 ~ 3.6VDC
Power (Watts)	108W
Number of Outputs	1
1st Output	0.7 ~ 3.6 VDC @ 30A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Surface Mount
Packaging	Tape & Reel (TR)
Package / Case	14-DIP MODULE
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PTH08T210WAZT PTH08T210WAZT

PTH08T220WAH Parameters

Technical/Catalog Information	PTH08T220WAH
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	4.5 ~ 14V
Output	0.69 ~ 5.5VDC
Power (Watts)	88W
Number of Outputs	1
1st Output	0.69 ~ 5.5 VDC @ 16A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Through Hole
Packaging	Tray
Package / Case	11-DIP MODULE
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PTH08T220WAH PTH08T220WAH 296 20439 ND 29620439ND 296-20439
