MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:www.dayue-hk.com D/C:08+PB

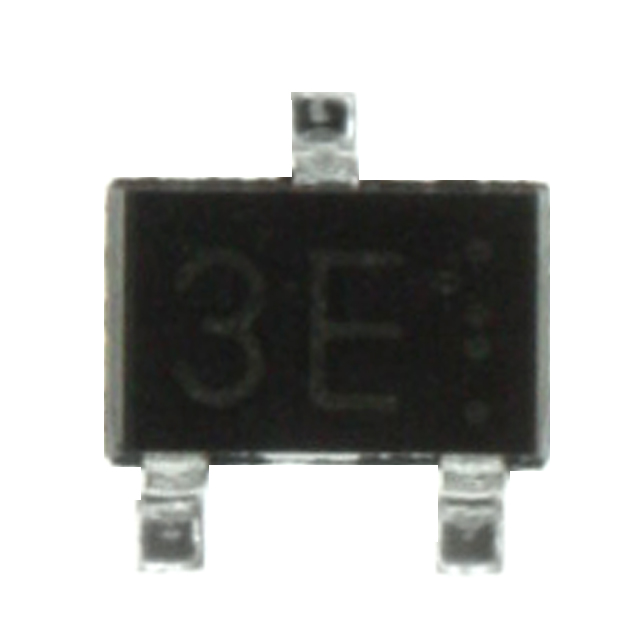

RB717F, RB717F/3E, RB717FT106 Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor(VA)
Package Cooled: www.dayue-hk.com
D/C: 08+PB
Description: DIODE SCHOTTKY 40V 30MA SOT-323
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: RB717F
File Size: 200988 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RB705D
File Size: 30986 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RB705D
File Size: 30986 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
|
Parameter |
Symbol |
Limits |
Unit |
| Reverse voltage (repetitive peak) Reverse voltage (DC) Average rectified forward current * Forward current surge peak (60Hz 1cyc) * Junction temperature Storage temperature |
VRM VR IO IFSM Tj Tstg |
40 40 30 200 125 -40 to +125 |
V V mA mA |
| Technical/Catalog Information | RB717FT106 |
| Vendor | Rohm Semiconductor(VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Common Anode |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Current - Average Rectified (Io) (per Diode) | 30mA |
| Voltage - Forward (Vf) (Max) @ If | 370mV @ 1mA |
| Current - Reverse Leakage @ Vr | 1A @ 10V |
| Reverse Recovery Time (trr) | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |
| Package / Case | SC-70-3, SOT-323-3 |
| Packaging | Digi-Reel? |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | RB717FT106 RB717FT106 RB717FT106DKR ND RB717FT106DKRND RB717FT106DKR |
