RI-R6C-001A-03 - 2500, RI-RFM-006A, RI-RFM-007B-00

Table of contents:
Info of RI-R6C-001A-03 - 2500
Info of RI-RFM-006A
Info of RI-RFM-007B-00

RI-R6C-001A-03 - 2500, RI-RFM-006A, RI-RFM-007B-00 Selling Leads, Datasheet

MFG:Texas Instruments Category:RF and RFID D/C:07+

RI-R6C-001A-03 - 2500, RI-RFM-006A, RI-RFM-007B-00 Datasheet download

Five Points

Part Number: RI-RFM-006A

Category: RF and RFID

MFG: Texas Instruments

Package Cooled:

D/C: 07+

Description: RFID 2000 HP RF MODULE 134.2KHZ

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RI-RFM-006A Parameters

Technical/Catalog Information	RI-RFM-006A
Vendor	Texas Instruments
Category	RF and RFID
RF Type	Read / Write

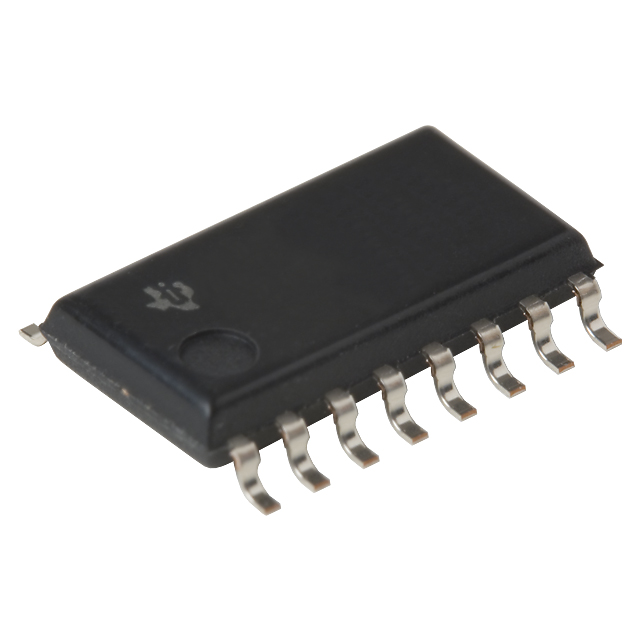

Package / Case	16-SOP
Frequency	134.2kHz
Features	FSK Transceiver
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	RI RFM 006A RIRFM006A 481 1116 2 ND 48111162ND 481-1116-2

RI-RFM-006A General Description

RI-RFM-006A is a CMOS-technology based RF-module IC which integrates all transmitter-receiver functions required for constructing a TIRIS Read-Write System into one single chip.

RI-RFM-006A consists of a transmitter signal control logic which generates signals for power transmission and for sending the data you wrote to a remote TIRIS transponder, and a receiver which amplifies and demodulates frequency shift keyed (FSK) signals received from this transponder.

Therefore, RI-RFM-006A is beneficially usable for constructing, in particular, a compact TIRIS Read-Write System at a reduced cost. Furthermore, demodulation of the FSK signals received in its receiver from a remote transponder is entirely digitized; this completely eliminates the need of regulations and lessens the number of required external parts, thus enhancing the operational reliability of the system.

RI-RFM-006A Maximum Ratings

Supply voltage                                 (V_CC)             - 0.5 to 7.0V
Input voltage range                         (Vi)              - 0.5 to 7.0V
Output voltage range                  (Vo)                - 0.5 to 7.0V
Input clamping current                     (Iik)                ± 20 mA
Output clamping current                (V_ok)            ± 20 mA
Output current                (I_out(V_out=0 to Vcc)      ± 25 mA
Operating temperature                   (TA)               - 40 to +85ºC
Storage temperature                     (Tstg)              - 65 to +150ºC

RI-RFM-006A Features

The TIRIS RF-Module IC for Automotive Application, RI-RFM-006A, provides the following features amongst others:
• It incorporates a transmitter circuit with power selector and an open drain transmission power predriver.
• Also incorporated are a receiver signal amplifier and a digitized FSK signal demodulator.
• I/O specifications: Conform to TIRIS standard RF-module specifications, with available signals of TXCT-, RXDT-(*) and RXCK only.
(*) For RXDT- signals, this RF-module has a reverse polarity in relation to TIRIS standard RF-modules. See the section "Description of Pins" for more information.
• Operating supply voltage: 4.5 V to 5.5 V
• Operating temperature range: -40 °C to +85 °C
• Package: 16-pin SO package

RI-RFM-006A Connection Diagram

RI-RFM-007B-00 Parameters

Technical/Catalog Information	RI-RFM-007B-00
Vendor	Texas Instruments
Category	RF and RFID
RF Type	Read Only
Package / Case	83mm x 93mm x 44mm
Frequency	134.2kHz
Features	ISO11785
Packaging	Bulk
Other Names	RI RFM 007B 00 RIRFM007B00 481 1032 ND 4811032ND 481-1032
