S202-0100-206, S202-0100-306, S202031MS02Q

Table of contents:
Info of S202-0100-206
Info of S202-0100-306
Info of S202031MS02Q

S202-0100-206, S202-0100-306, S202031MS02Q Selling Leads, Datasheet

MFG:C&K Components Category:Switches Package Cooled:0312/0319 D/C:1,177

S202-0100-206, S202-0100-306, S202031MS02Q Datasheet download

Five Points

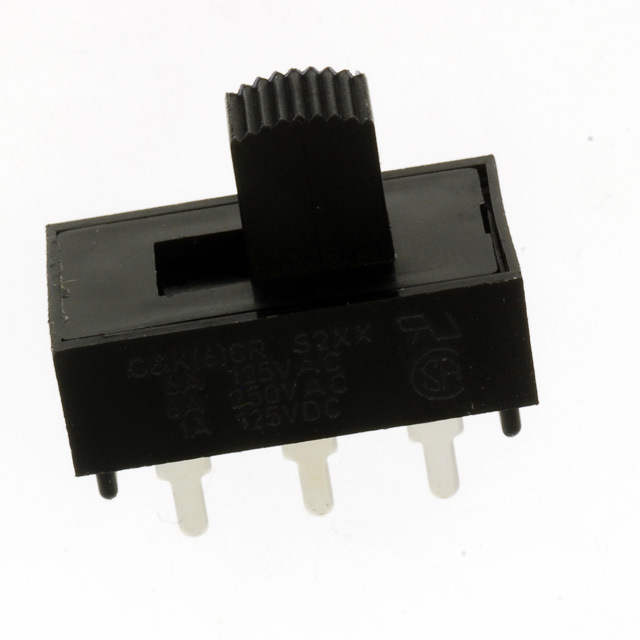

Part Number: S202031MS02Q

Category: Switches

MFG: C&K Components

Package Cooled: 0312/0319

D/C: 1,177

Description: SWITCH SLIDE DPDT 6A PC MOUNT

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

S202031MS02Q Parameters

Technical/Catalog Information	S202031MS02Q
Vendor	C&K Components
Category	Switches
Mounting Type	Through Hole
Circuit	DPDT
Switch Function	On-On
Contact Rating @ Voltage	6A @ 125VAC
Termination Style	PC Pin
Orientation	Vertical
Actuator Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	S202031MS02Q S202031MS02Q CKC5114 ND CKC5114ND CKC5114

S202031MS02Q Maximum Ratings

CONTACT RATING: Q contact material (S1XX, S2XX Models):
    6 AMPS @ 125 V AC; 6 AMPS @ 250 V AC; 1 AMP @
    125 V DC (UL/CSA). (S5XX, S6XX Models): 12 AMPS @
    125 V AC; 6 AMPS @ 250 V AC; 1 AMP @ 125 V DC (UL/CSA).
    (S7XX, S8XX Models): 15 AMPS @ 125 V AC; 6AMPS @
    250 V AC (UL/CSA). See page J-31 for additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 m ½ typ. initial
       @ 2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 10⁹ min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: -30ºC to +65ºC
STORAGE TEMPERATURE: -30ºC to +85ºC

S202031MS02Q Features

• 6 to 15 AMPS
• Enclosed housing
• PC and Snap-in panel mounting
• Reversing option
• RoHS compliant

S202031MS02Q Typical Application

• Portable tools
• Small appliances
• Floor care products
